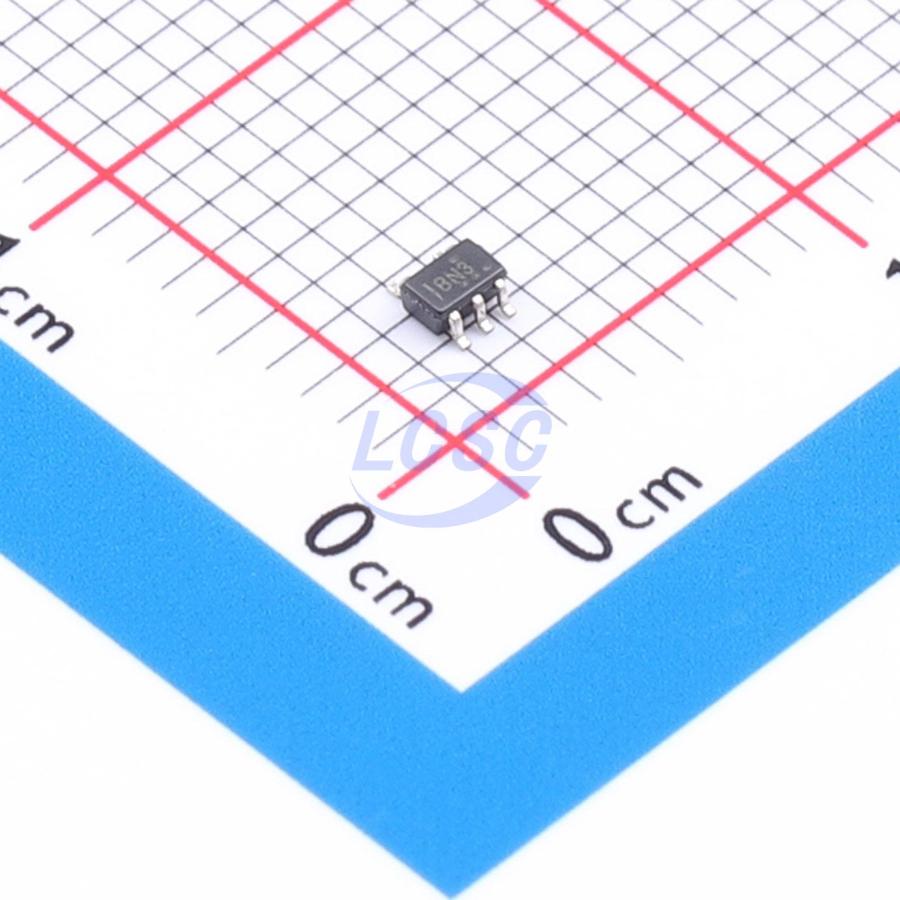

74AHCT1G126DCKRG4
4.5V~5.5V 1 1 7.5ns@5V,50pF SC-70-5 Buffers, Drivers, Receivers, Transceivers RoHS
SC-70-5ROHS3 CompliantSold out at source
Single Bus Buffer Gate With 3-State Output
- Manufacturer
- TI
- Manufacturer part #
- 74AHCT1G126DCKRG4
- Store part #
- C2675695
- Package / case
- SC-70-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C2675695
Stock & price checked 15 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.74 | ₹103.70 |
| 50+ | ₹20.22 | ₹1,011.00 |
| 150+ | ₹19.87 | ₹2,980.50 |
| 500+ | ₹19.51 | ₹9,755.00 |
5 × ₹20.74
₹103.70
excl. GST
₹122.37 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74AHCT1G126DCKRG4
₹103.70 for 5 + GST
Specifications
- Voltage - Supply
- 4.5V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 10uA
- Function
- Output enable;Level shifting;Edge rate controllable
- Current - Output High(IOH)
- 8mA
- Series
- 74AHCT
- Current - Output Low(IOL)
- 8mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 7.5ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Sold out at source
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
The SN74AHCT1G126 device is a single bus buffer gate/line driver with 3 - state output. The output is disabled when the output - enable (OE) input is low. When OE is high, true data is passed from the A input to the Y output.
Applications
- Motor Controls: AC Induction
- Graphics Cards
- Advanced Driver Assistance Systems (ADAS)
- Motor Drives & Controls
- DLP Front Projection Systems
- Server Motherboards
Key features
- Operating Range of 4.5 V to 5.5 V
- Max tₚd of 6 ns at 5 V
- Low Power Consumption, 10 - µA Max ICC
- ±8 - mA Output Drive at 5 V
- Inputs are TTL - Voltage Compatible
- Latch - Up Performance Exceeds 250 mA
- Per JESD 17
- ESD Protection Exceeds JESD 22
- 2000 - V Human - Body Model
- 200 - V Machine Model
- 1000 - V Charged - Device Model
- TTL Inputs
- Lowered switching threshold allows up translation 3.3 V to 5 V
- Slow edges reduce output ringing
