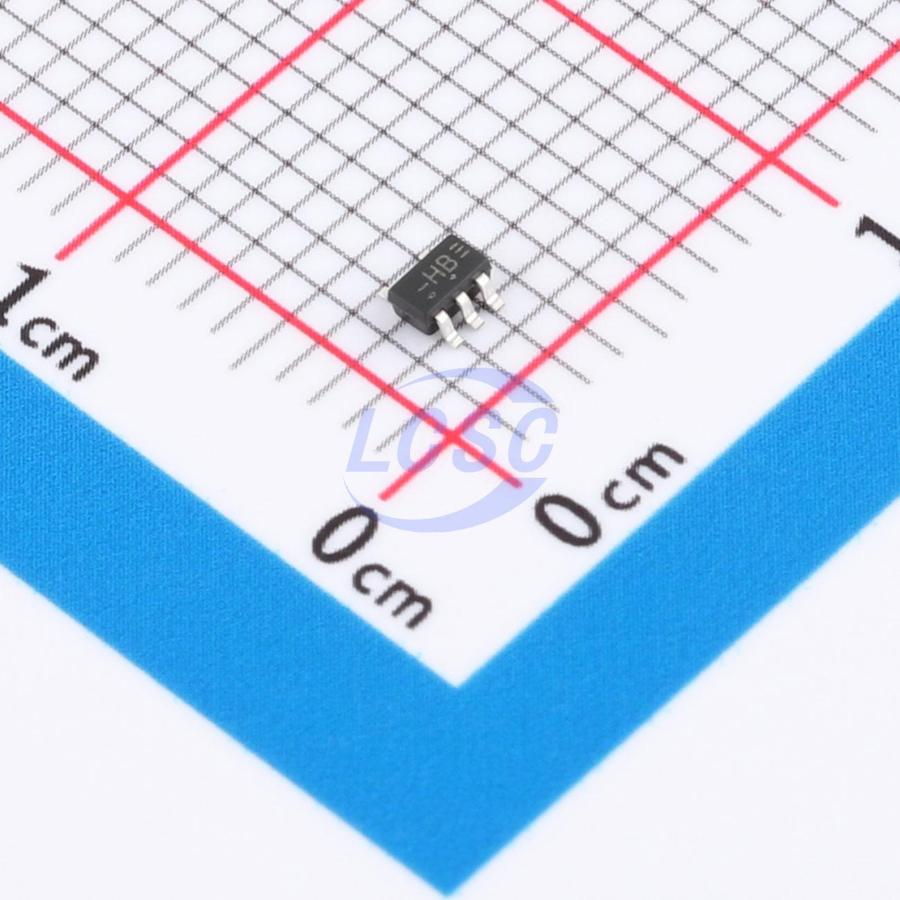

74HC1G02GW
2V~6V 100ns@2V,50pF 1uA SOT-353 Gates and Inverters
SOT-353RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74HC1G02GW
- Store part #
- C52205093
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,350 in stock
#C52205093
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.24 | ₹62.40 |
| 100+ | ₹4.92 | ₹492.00 |
| 300+ | ₹4.26 | ₹1,278.00 |
| 3,000+ | ₹3.77 | ₹11,310.00 |
| 6,000+ | ₹3.37 | ₹20,220.00 |
| 9,000+ | ₹3.18 | ₹28,620.00 |
10 × ₹6.24
₹62.40
excl. GST
₹73.63 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74HC1G02GW
₹62.40 for 10 + GST
Specifications
- Logic Family
- 74HC
- Voltage - Supply
- 2V~6V
- Propagation Delay
- 100ns@2V,50pF
- Output Logic Level - Low
- 100mV;260mV
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Output Logic Level - High
- 1.9V;4.18V;5.68V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 2.6mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 2.6mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
The 74HC1G02 is a high-speed CMOS 2-input NOR gate fabricated using silicon gate CMOS technology. It combines the low power consumption of CMOS with speed performance comparable to the LS-TTL series. The internal three-stage buffered circuit architecture provides wide noise margins and stable output.
Key features
- Basic gate function as part of Renesas unified logic series product line
- Embossed carrier tape packaging for high-speed automated placement
- Electrical characteristics equivalent to 74HC1G02
- Supply voltage range: 2 ~ 6 V
- Operating temperature range: -40 ~ +85°C
- |IOH| = IOL = 2mA (min)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC74HC1G02DFT1G-TP#C52205117TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,990 | ₹5.72 · 2,990 in stock | View |
 | TP74LVC1G02C5#C42460126TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,830 | ₹7.55 · 2,830 in stock | View |
 | NC7S02P5X-TP#C42460220TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,490 | ₹6.51 · 2,490 in stock | View |
 | 74AHC1G02SE-TP#C52098182TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,980 | ₹6.38 · 2,980 in stock | View |
 | TP74AHC1G02C5#C52205179TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,990 | ₹7.38 · 2,990 in stock | View |
