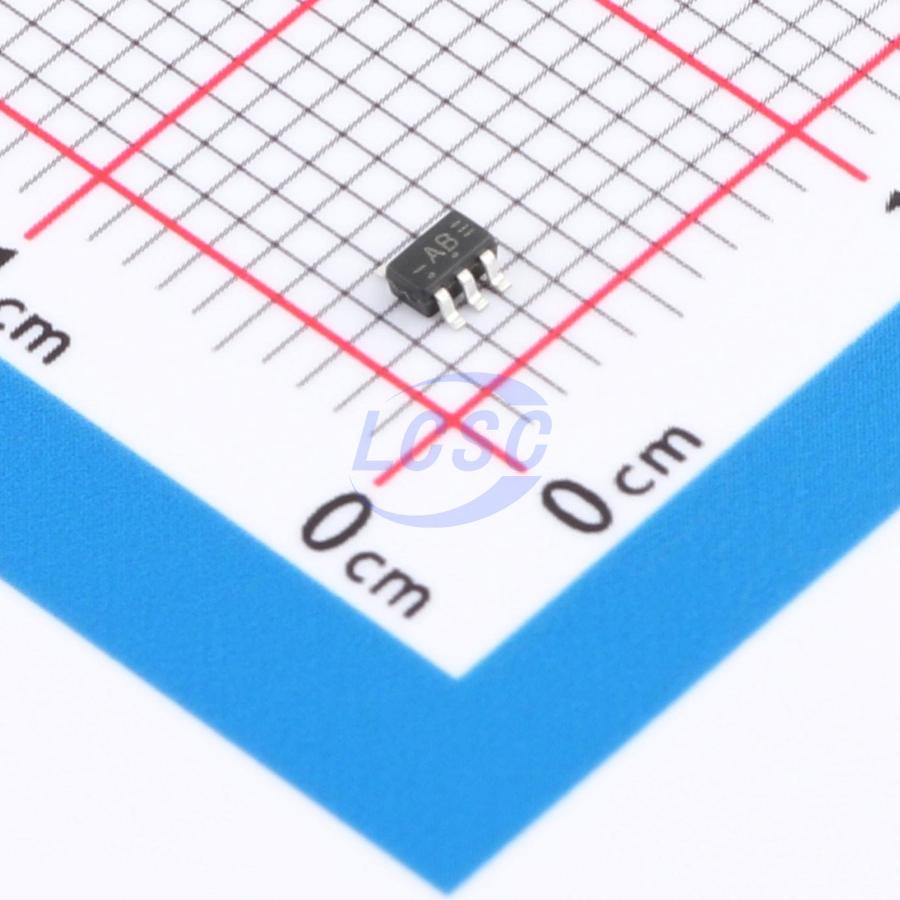

74AHC1G02SE-TP
1uA 2V~5.5V 11.4ns@3.3V,50pF SOT-353 Gates and Inverters
SOT-353RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74AHC1G02SE-TP
- Store part #
- C52098182
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,980 in stock
#C52098182
Stock & price checked 17 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.38 | ₹63.80 |
| 100+ | ₹5.01 | ₹501.00 |
| 300+ | ₹4.34 | ₹1,302.00 |
| 3,000+ | ₹3.82 | ₹11,460.00 |
| 6,000+ | ₹3.41 | ₹20,460.00 |
| 9,000+ | ₹3.21 | ₹28,890.00 |
10 × ₹6.38
₹63.80
excl. GST
₹75.28 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74AHC1G02SE-TP
₹63.80 for 10 + GST
Specifications
- Input Logic Level - High
- 1.5V;2.1V;3.85V
- Input Logic Level - Low
- 500mV;900mV;1.65V
- Logic Family
- 74AHC
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V~2V;2.9V~3V;4.4V~4.5V;2.58V;3.94V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 2V~5.5V
- Number of Channels
- 1;2
- Output Logic Level - Low
- 100mV;360mV
- Propagation Delay
- 11.4ns@3.3V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
74AHC1G02 is a single 2-input NOR gate with the logic function Y = /(A+B).
Applications
- Voltage level translation
- General-purpose logic
- Power-off signal isolation
- PCs, network equipment
- Portable computing devices
Key features
- Operating voltage range: 2.0~5.5V
- Low power consumption
- High noise immunity
- Balanced propagation delay
- Operating temperature range: -40 to +125°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NC7S02P5X-TP#C42460220TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,440 | ₹6.51 · 2,440 in stock | View |
 | TP74AHC1G02C5#C52205179TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,990 | ₹7.38 · 2,990 in stock | View |
 | MC74VHC1G02DFT1G-TP#C53100505TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 3,000 | ₹6.28 · 3,000 in stock | View |
 | SN74AHC1G02DCKR-TP#C41408037TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 5,180 | ₹5.11 · 5,180 in stock | View |
 | 74HC1G02GW#C52205093TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,350 | ₹6.24 · 2,350 in stock | View |
