NexperiaDatasheet (PDF)

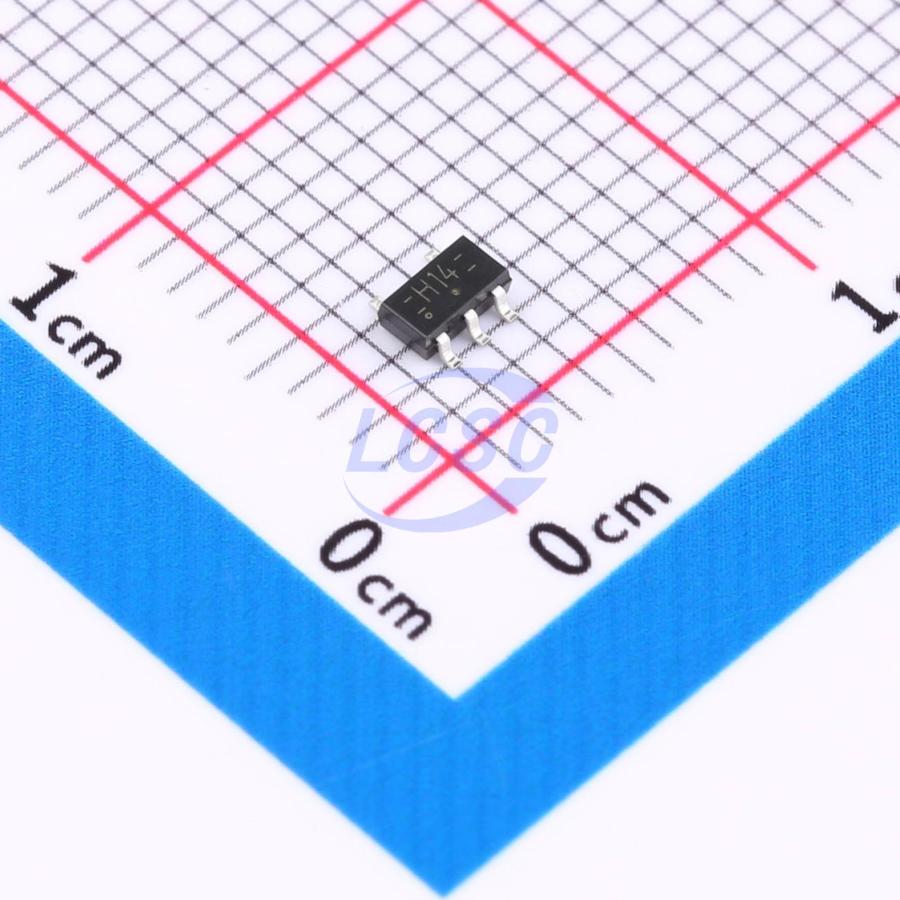

74HC1G14GV,125
Schmitt trigger 2V~6V 32ns@6V,50pF 20uA 1 SOT-753 Gates and Inverters RoHS
SOT-753ROHS3 CompliantActive
Inverting Schmitt trigger
- Manufacturer
- Nexperia
- Manufacturer part #
- 74HC1G14GV,125
- Store part #
- C12497
- Package / case
- SOT-753
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
24,580 in stock
#C12497
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.14 | ₹80.70 |
| 50+ | ₹12.58 | ₹629.00 |
| 150+ | ₹10.80 | ₹1,620.00 |
| 500+ | ₹9.46 | ₹4,730.00 |
| 3,000+ | ₹8.40 | ₹25,200.00 |
| 6,000+ | ₹7.86 | ₹47,160.00 |
5 × ₹16.14
₹80.70
excl. GST
₹95.23 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74HC1G14GV,125
₹80.70 for 5 + GST
Specifications
- output type
- Push-pull
- Logic Family
- 74HC
- Input Type
- Schmitt trigger
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 100mV;400mV
- Propagation Delay
- 32ns@6V,50pF
- Features
- Noise suppression function
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - High
- 1.5V~4.2V
- Output Logic Level - High
- 3.7V
- Quiescent Current(Iq)
- 20uA
- Number of Channels
- 1
- Current - Output High(IOH)
- 2.6mA
- Current - Output Low(IOL)
- 2.6mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.045 g
Overview
The 74HC1G14; 74HCT1G14 is a single inverter with Schmitt-trigger input. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC. Schmitt trigger inputs transform slowly changing input signals into sharply defined jitter-free output signals.
Applications
- Wave and pulse shapers
- Astable multivibrators
- Monostable multivibrators
Key features
- Wide supply voltage range from 2.0 V to 6.0 V
- Symmetrical output impedance
- High noise immunity
- CMOS low power dissipation
- Unlimited input rise and fall times
- Balanced propagation delays
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
- Input levels:
- For 74HC1G14: CMOS level
- For 74HCT1G14: TTL level
- Complies with JEDEC standards:
- JESD8C (2.7 V to 3.6 V)
- JESD7A (2.0 V to 6.0 V)
- ESD protection:
- HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
- CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Specified from -40 °C to +85 °C and -40 °C to +125 °C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74HC1G14GV-Q100H#C546700Nexperia · SC-74A | Nexperia | SC-74A | 190 | ₹14.96 · 190 in stock | View |
 | 74AHC1G04W5-7#C460486DIODES · SOT-25 | DIODES | SOT-25 | 3,610 | ₹14.01 · 3,610 in stock | View |
 | 74AHC1G04GV#C52140422MDD(Microdiode Semiconductor) · SOT-23-5L | MDD(Microdiode Semiconductor) | SOT-23-5L | 2,407 | ₹13.88 · 2,407 in stock | View |
 | 74AHC1G14QW5-7#C3272816DIODES · SOT-25 | DIODES | SOT-25 | 140 | ₹18.14 · 140 in stock | View |
 | MC74HC1G14DTT1G#C150059onsemi · TSOP-5 | onsemi | TSOP-5 | 1,720 | ₹34.98 · 1,720 in stock | View |
