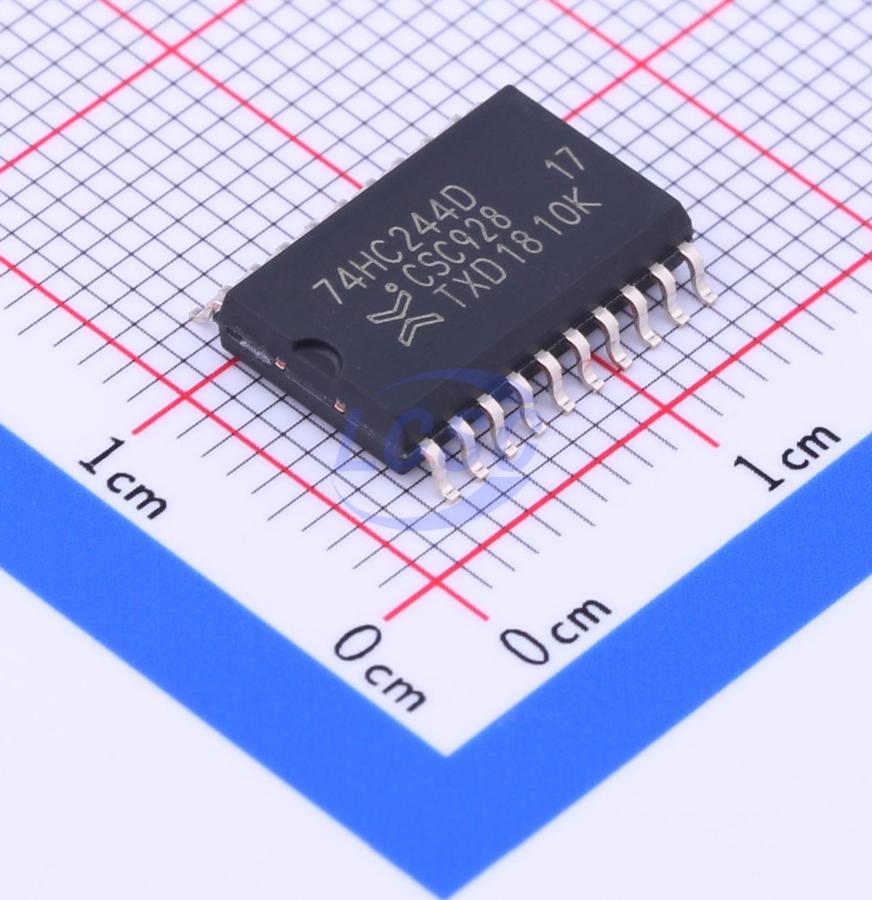

74HC244D,653
2V~6V 4 2 9ns@5V,15pF SOIC-20-300mil Buffers, Drivers, Receivers, Transceivers RoHS
SOIC-20-300milROHS3 CompliantActive
Octal buffer/line driver; 3-state
- Manufacturer
- Nexperia
- Manufacturer part #
- 74HC244D,653
- Store part #
- C5622
- Package / case
- SOIC-20-300mil
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,580 in stock
#C5622
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹51.82 | ₹51.82 |
| 10+ | ₹40.71 | ₹407.10 |
| 30+ | ₹35.92 | ₹1,077.60 |
| 100+ | ₹29.83 | ₹2,983.00 |
| 500+ | ₹27.21 | ₹13,605.00 |
| 1,000+ | ₹25.48 | ₹25,480.00 |
1 × ₹51.82
₹51.82
excl. GST
₹61.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
74HC244D,653
₹51.82 for 1 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 6mA
- Series
- 74HC
- Voltage - Supply
- 2V~6V
- Current - Output Low(IOL)
- 6mA
- Output Type
- Tri-State
- Number of Bits per Element
- 4
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 160uA
- Propagation Delay
- 9ns@5V,15pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.636 g
Overview
The 74HC244; 74HCT244 is an 8-bit buffer/line driver with 3-state outputs. The device can be used as two 4-bit buffers or one 8-bit buffer. The device features two output enables (1OE and 2OE), each controlling four of the 3-state outputs. A HIGH on nOE causes the outputs to assume a high-impedance OFF-state. Inputs include clamp diodes that enable the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Key features
- Wide supply voltage range from 2.0 to 6.0 V
- CMOS low power dissipation
- High noise immunity
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
- Input levels: For 74HC244: CMOS level; For 74HCT244: TTL level
- Octal bus interface
- Non-inverting 3-state outputs
- Complies with JEDEC standards: JESD8C (2.7 V to 3.6 V), JESD7A (2.0 V to 6.0 V)
- ESD protection: HBM JESD22-A114F exceeds 2000 V, MM JESD22-A115-A exceeds 200 V
- Multiple package options
- Specified from -40 ℃ to +85 ℃ and -40 ℃ to +125 ℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AiP74HCT244SA20.TR#C52120883Wuxi I-core Elec · SOP-20 | Wuxi I-core Elec | SOP-20 | 1,975 | ₹26.17 · 1,975 in stock | View |
 | 74HC241D,653#C455081Nexperia · SOIC-20-300mil | Nexperia | SOIC-20-300mil | 2,676 | ₹65.42 · 2,676 in stock | View |
 | MC74HC240ADWR2G#C899700onsemi · SOIC-20-300mil | onsemi | SOIC-20-300mil | 14 | ₹81.60 · 14 in stock | View |
 | SN74AC241DWR#C2865036TI · SOIC-20-300mil | TI | SOIC-20-300mil | 5 | ₹112.56 · 5 in stock | View |
 | SN74HC244D(LX)#C22374048lingxingic · SOP-20-300mil | lingxingic | SOP-20-300mil | 155 | ₹19.58 · 155 in stock | View |
