DIODESDatasheet (PDF)

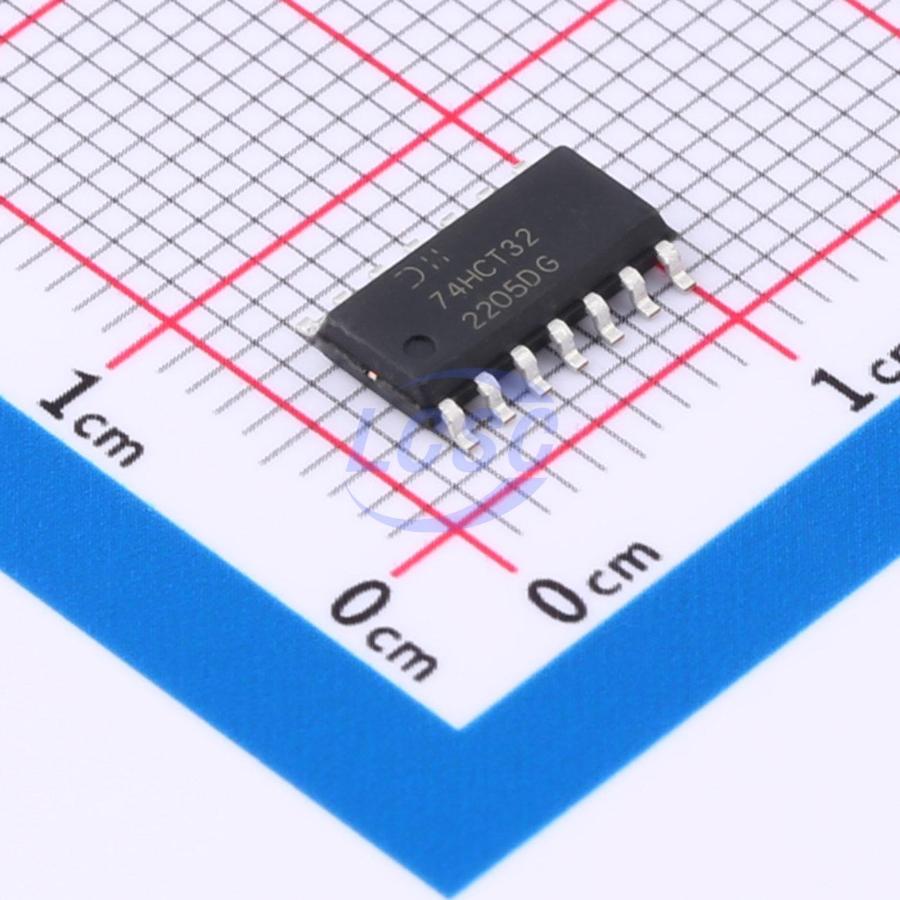

74HCT32S14-13
4.5V~5.5V 24ns@4.5V,50pF 20uA SO-14 Gates and Inverters RoHS
SO-14ROHS3 CompliantActive
QUADRUPLE 2-INPUT OR GATES
- Manufacturer
- DIODES
- Manufacturer part #
- 74HCT32S14-13
- Store part #
- C842446
- Package / case
- SO-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,330 in stock
#C842446
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.34 | ₹86.70 |
| 50+ | ₹15.28 | ₹764.00 |
| 150+ | ₹14.39 | ₹2,158.50 |
| 500+ | ₹13.30 | ₹6,650.00 |
| 2,500+ | ₹12.81 | ₹32,025.00 |
| 5,000+ | ₹12.52 | ₹62,600.00 |
5 × ₹17.34
₹86.70
excl. GST
₹102.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HCT32S14-13
₹86.70 for 5 + GST
Specifications
- Input Type
- Schmitt trigger;TTL-compatible CMOS
- output type
- Push-pull
- Logic Family
- 74HCT Series
- Voltage - Supply
- 4.5V~5.5V
- Output Logic Level - Low
- 330mV;400mV
- Propagation Delay
- 24ns@4.5V,50pF
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - Low
- 800mV
- Input Logic Level - High
- 2V
- Output Logic Level - High
- 3.8V;3.7V
- Quiescent Current(Iq)
- 20uA
- Current - Output High(IOH)
- 4mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.218 g
Overview
The 74HCT32 provides provides four independent 2-input OR gates with standard push-pull outputs. The device is designed for operation with a power supply range of 4.5V to 5.5V. The gates perform the Boolean function.
Applications
- General Purpose Logic Wide array of products such as: PCs, networking, notebooks, netbooks Computer peripherals, hard drives, CD/DVD ROM TV, DVD, DVR, set top box
Key features
- Wide Supply Voltage Range from 4.5V to 5.5V
- Pin Compatible with Low Power Schottky (LSTTL)
- Inputs Are TTL Voltage Level Compatible
- Sinks or Sources 4mA at VCC = 4.5V
- CMOS Low Power Consumption
- Schmitt Trigger Action at All Inputs
- ESD Protection Exceeds JESD 22 200-V Machine Model (A115-A) 2000-V Human Body Model (A114-A) Exceeds 1000-V Charged Device Model (C101C)
- Range of Package Options SO-14 and TSSOP-14
- Totally Lead-Free & Fully RoHS Compliant Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74HCT32DR#C6781TI · SOIC-14 | TI | SOIC-14 | 3,060 | ₹71.48 · 3,060 in stock | View |
| MC74HCT32ADR2G#C904069onsemi · SOIC-14 | onsemi | SOIC-14 | 495 | ₹49.57 · 495 in stock | View | |
 | 74HCT32D,653#C5985Nexperia · SOIC-14 | Nexperia | SOIC-14 | 3,180 | ₹42.38 · 3,180 in stock | View |
 | 74AHCT32S14-13#C842303DIODES · SO-14 | DIODES | SO-14 | 30 | ₹13.59 · 30 in stock | View |
 | SN74AHCT32DR#C7490TI · SOIC-14 | TI | SOIC-14 | 2,677 | ₹50.83 · 2,677 in stock | View |
