MDD(Microdiode Semiconductor)Datasheet (PDF)

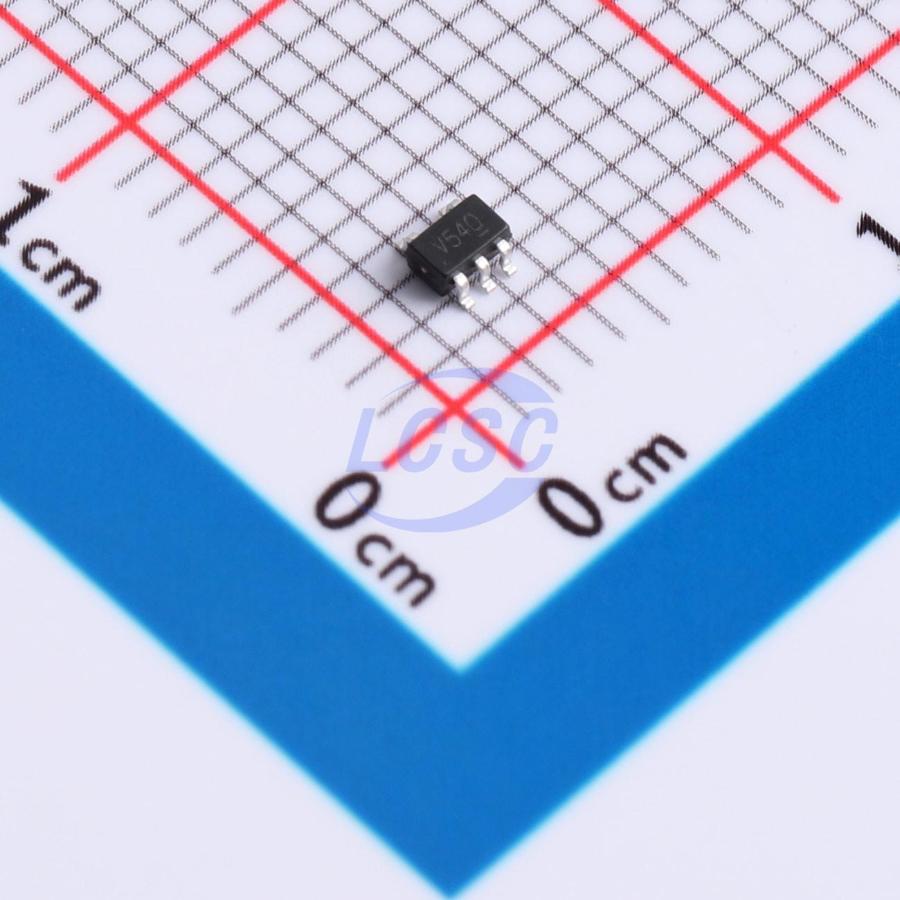

74LVC1G07GW
Schmitt trigger 1.65V~5.5V 1 1 2ns@5V,50pF SOT-353 Buffers, Drivers, Receivers, Transceivers
SOT-353RoHSActive
- Manufacturer
- MDD(Microdiode Semiconductor)
- Manufacturer part #
- 74LVC1G07GW
- Store part #
- C52953350
- Package / case
- SOT-353
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,250 in stock
#C52953350
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.50 | ₹95.00 |
| 100+ | ₹7.49 | ₹749.00 |
| 300+ | ₹6.48 | ₹1,944.00 |
| 3,000+ | ₹5.73 | ₹17,190.00 |
| 6,000+ | ₹5.12 | ₹30,720.00 |
| 9,000+ | ₹4.83 | ₹43,470.00 |
10 × ₹9.50
₹95.00
excl. GST
₹112.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G07GW
₹95.00 for 10 + GST
Specifications
- Input type
- Schmitt trigger
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Open-drain
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 4uA
- Function
- Level shifting;Power-off isolation
- Series
- 74LVC
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 2ns@5V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.074 g
Overview
The 74LVC1G07 is a single buffer with open-drain output. The input can be driven by 3.3V or 5V devices. This feature allows the device to be used as a level translator in mixed 3.3V and 5V environments. Schmitt-trigger action on all inputs makes the circuit tolerant of slower input rise and fall times. The device is fully suitable for partial power-down applications using I<sub>OFF</sub>. The I<sub>OFF</sub> circuit disables the output, preventing potentially destructive backflow current through the device when it is powered down.
Key features
- Wide supply voltage range: 1.65V ~ 5.5V
- Overvoltage-tolerant inputs up to 5.5V
- High noise immunity
- CMOS low power consumption
- IOFF circuit for partial power-down mode operation
- ±24 mA output drive capability (VCC = 3.0 V)
- Latch-up performance exceeds 100 mA
- Direct TTL-level interface compatible
- JEDEC compliant: JESD8-7 (1.65 V ~ 1.95 V), JESD8-5 (2.3 V ~ 2.7 V), JESD8C (2.7 V ~ 3.6 V), JESD36 (4.5 V ~ 5.5 V)
- ESD protection: HBM ANSI/ESDA/JEDEC JS-001 Class 3B exceeds 8000 V, MM JESD22-A115C Class C exceeds 550 V, CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000 V
- Multiple package options
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74LVC1G34GW#C52140426MDD(Microdiode Semiconductor) · SOT-353 | MDD(Microdiode Semiconductor) | SOT-353 | 2,655 | ₹9.64 · 2,655 in stock | View |
 | 74LVC1G17GW#C52140427MDD(Microdiode Semiconductor) · SOT-353 | MDD(Microdiode Semiconductor) | SOT-353 | 2,450 | ₹12.49 · 2,450 in stock | View |
 | 74LVC1G126GW#C52140429MDD(Microdiode Semiconductor) · SOT-353 | MDD(Microdiode Semiconductor) | SOT-353 | 4,936 | ₹9.01 · 4,936 in stock | View |
 | 74LVC1G125GW#C52140430MDD(Microdiode Semiconductor) · SOT-353 | MDD(Microdiode Semiconductor) | SOT-353 | 7,686 | ₹12.65 · 7,686 in stock | View |
