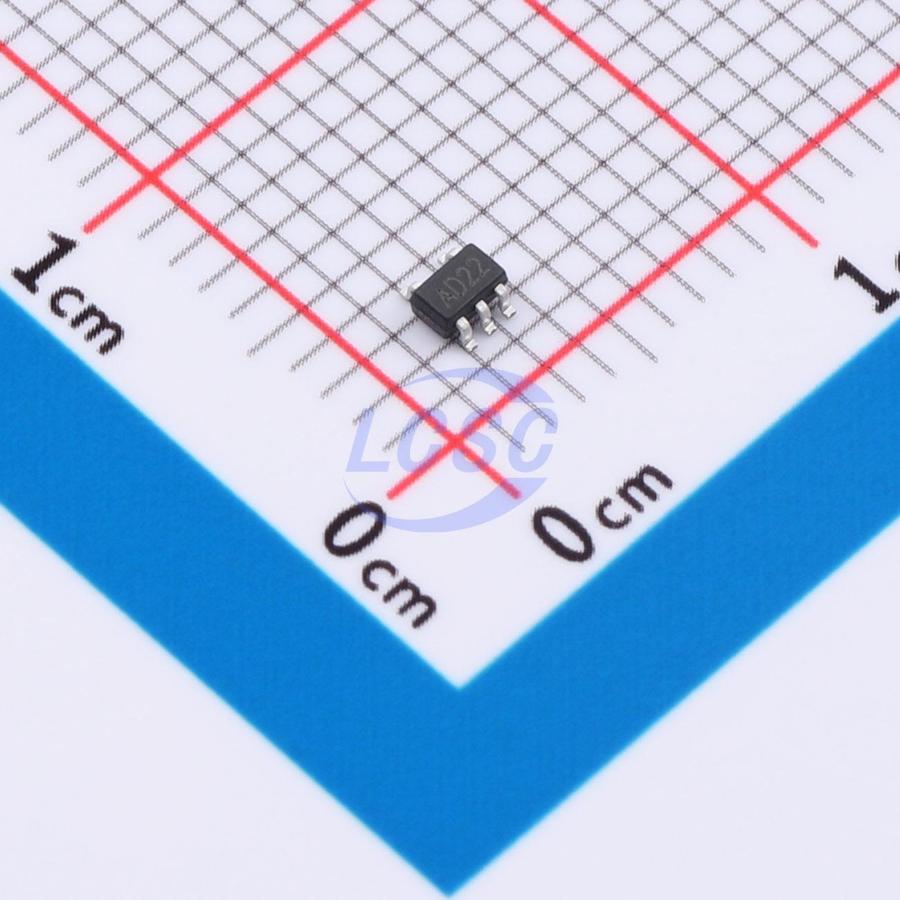

JSMSEMI

74LVC1G07GW,125-JSM

1.65V~5.5V 1 1 SOT-353 Buffers, Drivers, Receivers, Transceivers RoHS

SOT-353ROHS CompliantActive

Manufacturer: JSMSEMI
Manufacturer part #: 74LVC1G07GW,125-JSM
Store part #: C53114307
Package / case: SOT-353
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,780 in stock

#C53114307

Stock & price checked 28 h ago

Quantity	Unit price	Pack price
10+	₹5.38	₹53.80
100+	₹4.29	₹429.00
300+	₹3.74	₹1,122.00
3,000+	₹3.33	₹9,990.00
6,000+	₹3.00	₹18,000.00
9,000+	₹2.84	₹25,560.00

Quantity (min 10, multiples of 10)

10 × ₹5.38

₹53.80

excl. GST

₹63.48 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC1G07GW,125-JSM

₹53.80 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Function: Level shifting
Series: 74LVC
Voltage - Supply: 1.65V~5.5V
Output Type: Open-drain
Current - Output Low(IOL): 24mA
Number of Bits per Element: 1
Channel Type: Unidirectional
Number of Elements: 1
Operating Temperature: -40℃~+125℃
Quiescent Supply Current: 4uA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.033 g

Overview

74LVC1G07GW,125-JSM provides a non-inverting buffer function. The device features an open-drain output that can be connected with other open-drain outputs to implement active-low wired-OR or active-high wired-AND functions. The input can be driven by 3.3V or 5V devices, allowing this device to be used in mixed 3.3V and 5V environments.

Key features

Wide supply voltage range: 1.65V to 5.5V
5V-tolerant inputs for 5V logic interfacing
Output drive capability: -24mA (VCC = 3.0V)
CMOS low power consumption
Operating temperature range: -40°C to +125°C
Package options: SOT23-5/SOT353/DFN4/SOT553
