JSMSEMIDatasheet (PDF)

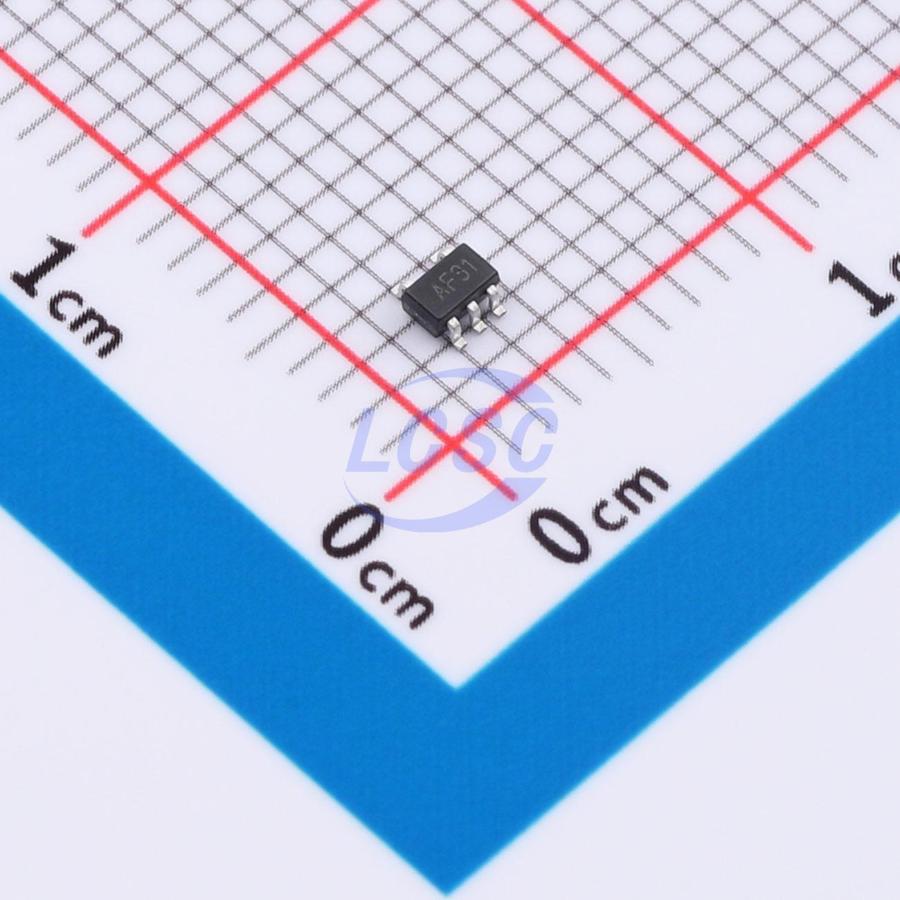

74LVC1G17GW-JSM
Schmitt trigger 1.65V~5.5V 1 1 7ns@5V,50pF SOT-353 Buffers, Drivers, Receivers, Transceivers RoHS
SOT-353ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- 74LVC1G17GW-JSM
- Store part #
- C53114426
- Package / case
- SOT-353
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,990 in stock
#C53114426
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.33 | ₹73.30 |
| 100+ | ₹5.85 | ₹585.00 |
| 300+ | ₹5.09 | ₹1,527.00 |
| 3,000+ | ₹4.54 | ₹13,620.00 |
| 6,000+ | ₹4.09 | ₹24,540.00 |
| 9,000+ | ₹3.86 | ₹34,740.00 |
10 × ₹7.33
₹73.30
excl. GST
₹86.49 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G17GW-JSM
₹73.30 for 10 + GST
Specifications
- Function
- Level shifting
- Current - Output High(IOH)
- 24mA
- Input type
- Schmitt trigger
- Series
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 4uA
- Propagation Delay
- 7ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.035 g
Overview
The 74LVC1G17 provides a buffer function with Schmitt-trigger input, capable of converting slowly changing input signals into well-defined outputs. The input can be driven by 3.3V or 5V devices, allowing the device to be used in mixed 3.3V and 5V environments. Available in SOT-23-5 package.
Key features
- Wide supply voltage range: 1.65V to 5.5V
- Output drive capability ±24mA at VCC = 3.0V
- CMOS low power consumption
- Direct TTL-level interface compatible
- No rise and fall time restrictions
- Inputs accept voltages up to 5V
- Operating temperature range: -40℃ to +125℃
- Package options: SOT-23-5/SOT-353/XSON6
