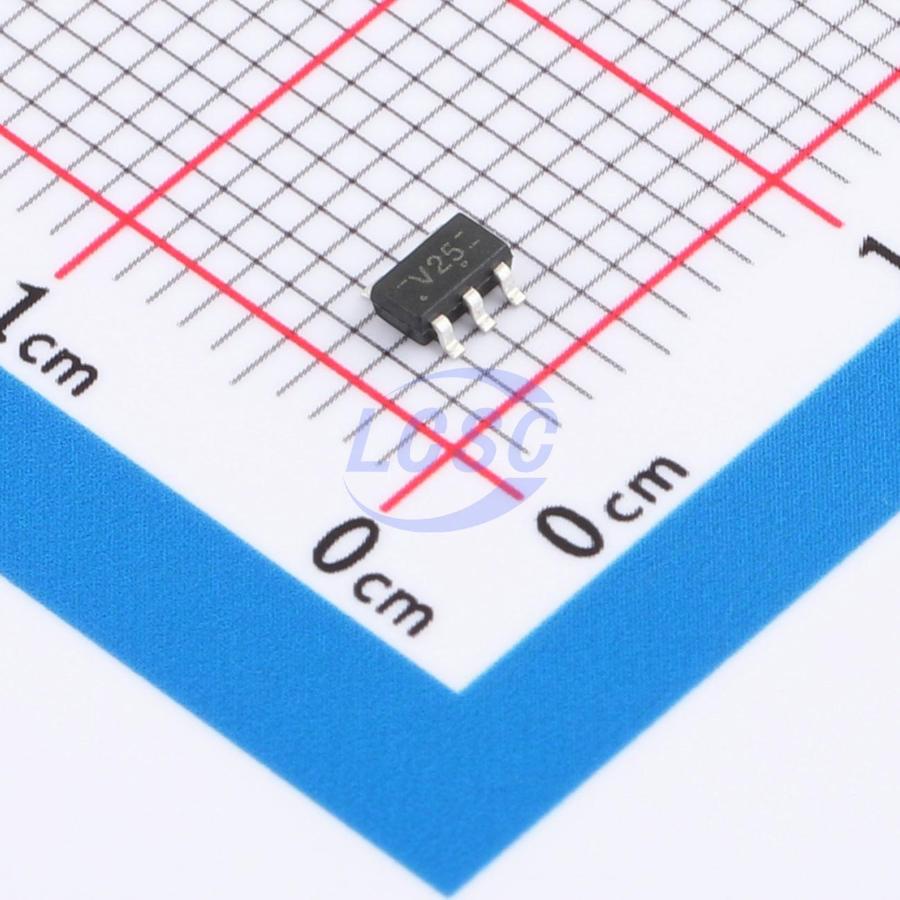

74LVC1G125W5-TP
1.65V~5.5V 1 1 3ns@5V,50pF SOT-23-5 Buffers, Drivers, Receivers, Transceivers
SOT-23-5RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74LVC1G125W5-TP
- Store part #
- C52098142
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,050 in stock
#C52098142
Stock & price checked 29 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.99 | ₹69.90 |
| 100+ | ₹5.49 | ₹549.00 |
| 300+ | ₹4.75 | ₹1,425.00 |
| 3,000+ | ₹4.19 | ₹12,570.00 |
| 6,000+ | ₹3.74 | ₹22,440.00 |
| 9,000+ | ₹3.52 | ₹31,680.00 |
10 × ₹6.99
₹69.90
excl. GST
₹82.48 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G125W5-TP
₹69.90 for 10 + GST
Specifications
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 10uA
- Function
- Power-off isolation;Output enable
- Current - Output High(IOH)
- 32mA
- Series
- 74LVC
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 3ns@5V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
The 74LVC1G125 is a single bus buffer/line driver with 3-state output. When the output enable (OE) is HIGH, the output is disabled. Conversely, when OE is LOW, true data is passed from input A to output Y. The device features a power-down protection circuit to prevent damage during power-down conditions.
Applications
- AV receivers
- Audio docking stations
- Blu-ray players and home theater systems
- Embedded PCs
- Personal digital assistants
- Telecom/server AC/DC power supplies: single controller: analog and digital
- SSDs: client and enterprise
- Wireless headsets, keyboards, and mice
Key features
- Operating voltage range: 1.65V to 5.5V
- Inputs accept voltages up to 5.5V
- High noise immunity
- Low power consumption
- ESD protection exceeding JESD 22: 2000-V HBM (A114-A), 200-V MM (A115-A), 1000-V CDM (C101)
