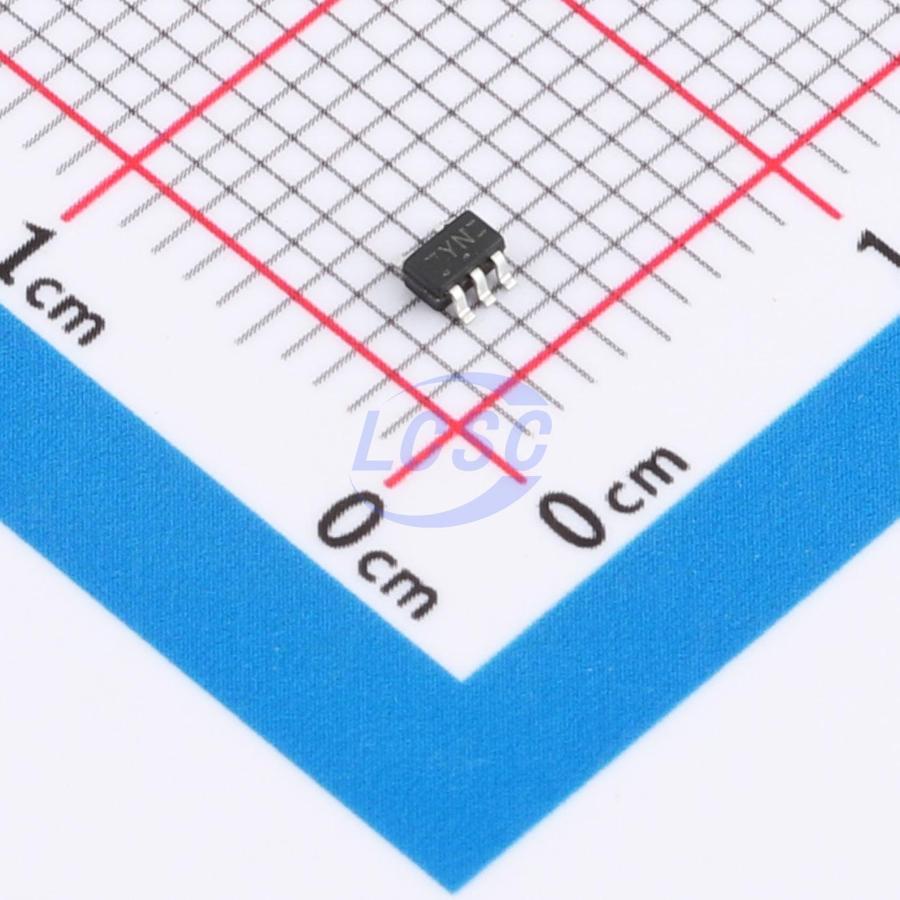

TECH PUBLIC

74LVC1G34SE-TP

1.65V~5.5V 1 1 3.2ns@5V,50pF SOT-353 Buffers, Drivers, Receivers, Transceivers

SOT-353RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: 74LVC1G34SE-TP
Store part #: C52098127
Package / case: SOT-353
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,990 in stock

#C52098127

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
10+	₹6.42	₹64.20
100+	₹5.05	₹505.00
300+	₹4.37	₹1,311.00
3,000+	₹3.85	₹11,550.00
6,000+	₹3.44	₹20,640.00
9,000+	₹3.23	₹29,070.00

Quantity (min 10, multiples of 10)

10 × ₹6.42

₹64.20

excl. GST

₹75.76 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC1G34SE-TP

₹64.20 for 10 + GST

Specifications

Function: Power-off isolation
Current - Output High(IOH): 32mA
Series: 74LVC
Voltage - Supply: 1.65V~5.5V
Current - Output Low(IOL): 32mA
Number of Bits per Element: 1
Channel Type: Unidirectional
Operating Temperature: -40℃~+125℃
Number of Elements: 1
Quiescent Supply Current: 10uA
Propagation Delay: 3.2ns@5V,50pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.03 g

Overview

74LVC1G34 is a single buffer with the logic function Y = A. The device features an integrated power-down protection circuit to prevent damage during power-down conditions.

Applications

AV receivers
Audio docking stations
Blu-ray players & home theater systems
Embedded PCs
Personal digital assistants
Power supplies

Key features

Operating voltage range: 1.65V to 5.5V
Inputs accept voltages up to 5.5V
High noise immunity
Low power consumption
ESD protection exceeds JESD 22: HBM 2000V, CDM 1000V
