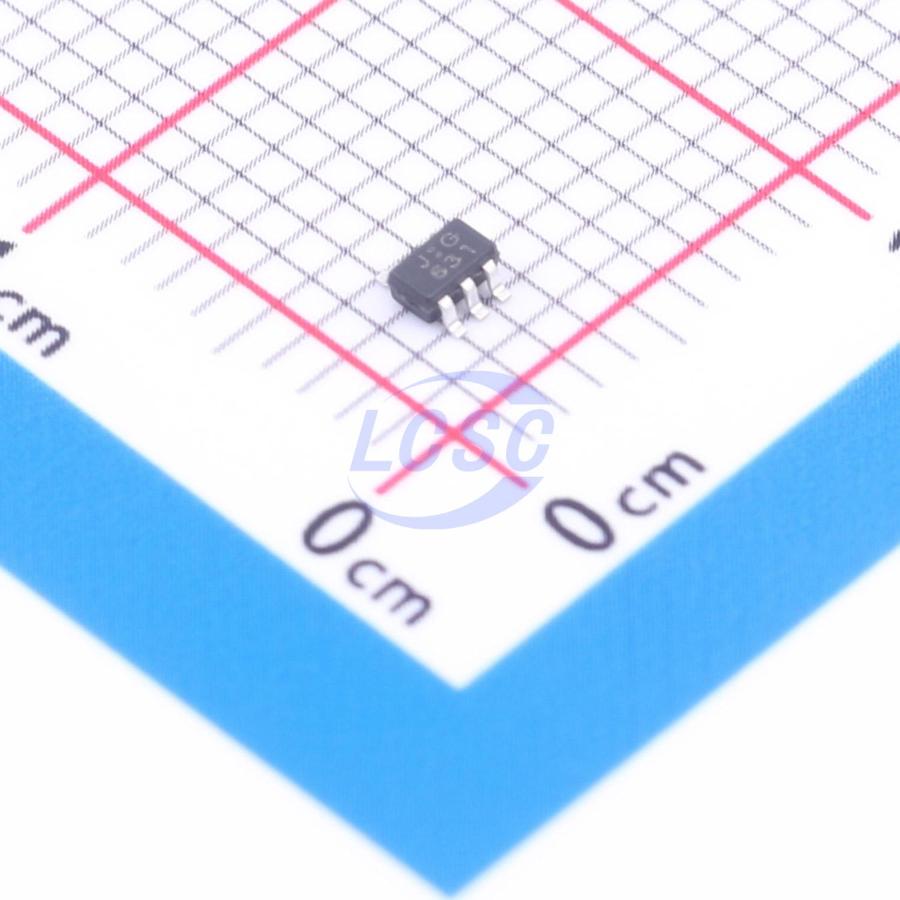

TC7SZ34FU-TP
1.65V~5.5V 1 1 3.2ns@5V,50pF SOT-353 Buffers, Drivers, Receivers, Transceivers
SOT-353RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TC7SZ34FU-TP
- Store part #
- C54195048
- Package / case
- SOT-353
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,930 in stock
#C54195048
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.34 | ₹63.40 |
| 100+ | ₹5.00 | ₹500.00 |
| 300+ | ₹4.33 | ₹1,299.00 |
| 3,000+ | ₹3.82 | ₹11,460.00 |
| 6,000+ | ₹3.43 | ₹20,580.00 |
| 9,000+ | ₹3.23 | ₹29,070.00 |
10 × ₹6.34
₹63.40
excl. GST
₹74.81 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC7SZ34FU-TP
₹63.40 for 10 + GST
Specifications
- Current - Output High(IOH)
- 32mA
- Series
- TC7SZ
- Voltage - Supply
- 1.65V~5.5V
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Operating Temperature
- -40℃~+125℃
- Number of Elements
- 1
- Quiescent Supply Current
- 10uA
- Propagation Delay
- 3.2ns@5V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
TC7SZ34 is a single buffer providing the function Y = A. The device features a power-off protection circuit to prevent damage during power-down conditions.
Applications
- AV receivers
- Portable audio docking stations
- Blu-ray players and home theater systems
- Embedded PCs
- Personal digital assistants (PDAs)
- Telecom/server power supplies, AC/DC power supplies: single controller: analog and digital
Key features
- Operating voltage range: 1.65V ~ 5.5V
- Inputs tolerant up to 5.5V
- High noise immunity
- Low power consumption
- ESD protection exceeding JESD 22 standard
- 2000V Human Body Model (A114-A)
- 1000V Charged Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74LVC1G34SE-TP#C52098127TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,990 | ₹6.42 · 2,990 in stock | View |
 | SN74LVC1G125DCKR-TP#C42394074TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 1,640 | ₹5.48 · 1,640 in stock | View |
 | 74LVC1G125GW-TP#C42394076TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 17,870 | ₹5.57 · 17,870 in stock | View |
 | NL17SZ125DFT2G-TP#C42460266TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,950 | ₹9.75 · 2,950 in stock | View |
 | TP74LVC1G34C5#C48639018TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,260 | ₹5.23 · 2,260 in stock | View |
