TECH PUBLICDatasheet (PDF)

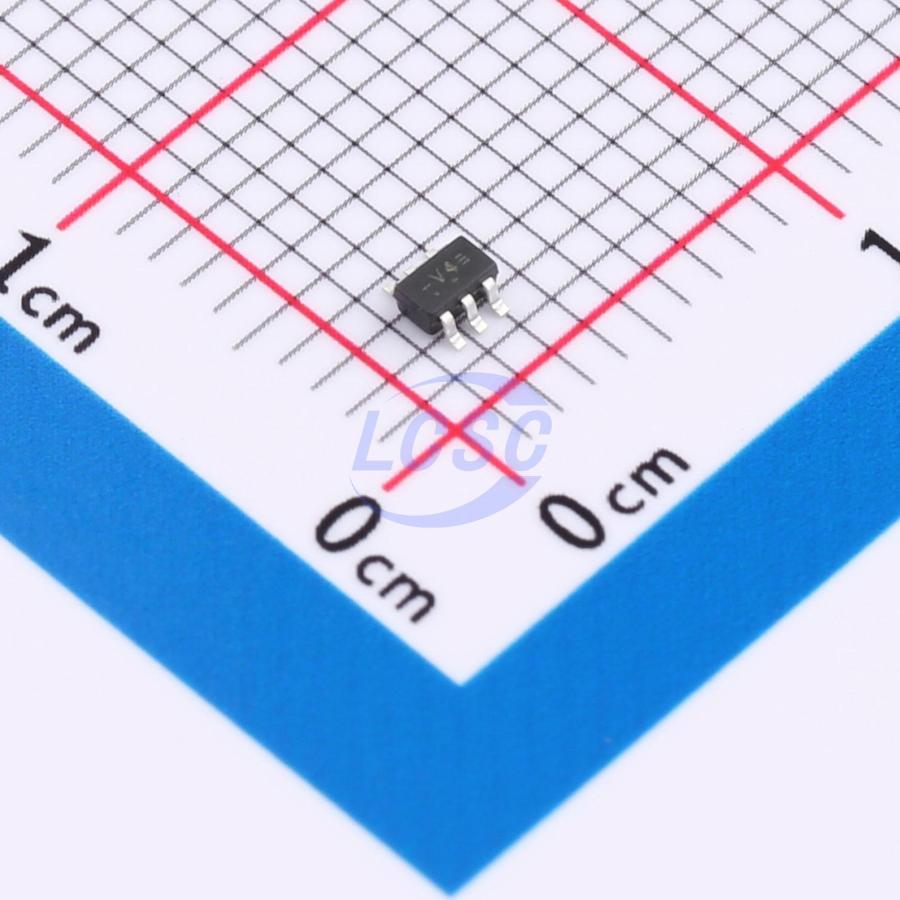

74LVC2G04GW
1.65V~5.5V 1 2 1.9ns@5V,50pF SOT-363 Buffers, Drivers, Receivers, Transceivers
SOT-363RoHSActive
Dual Inverter
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74LVC2G04GW
- Store part #
- C19829573
- Package / case
- SOT-363
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,290 in stock
#C19829573
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.55 | ₹65.50 |
| 100+ | ₹5.19 | ₹519.00 |
| 300+ | ₹4.51 | ₹1,353.00 |
| 3,000+ | ₹4.01 | ₹12,030.00 |
| 6,000+ | ₹3.60 | ₹21,600.00 |
| 9,000+ | ₹3.40 | ₹30,600.00 |
10 × ₹6.55
₹65.50
excl. GST
₹77.29 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC2G04GW
₹65.50 for 10 + GST
Specifications
- Voltage - Supply
- 1.65V~5.5V
- Quiescent Supply Current
- 10uA
- Function
- Level shifting;Power-off isolation
- Current - Output High(IOH)
- 32mA
- Series
- 74LVC
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Propagation Delay
- 1.9ns@5V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
The 74LVC2G04 is a dual inverter gate and it provides the Boolean function Y = A(overline) in positive logic. This device has power-down protective circuit to prevent the device from destruction when it is powered down.
Applications
- Voltage Level Shifting
- General Purpose Logic
- Power Down Signal Isolation
- Wide array of products such as: PCs, Networking, Notebooks, Netbooks, PDAs, Tablet Computers, E-readers, Computer Peripherals, Hard Drives, CD/DVD ROM, TV, DVD, DVR, Set-Top Box, Cell Phones, Personal Navigation / GPS, MP3 Players, Cameras, Video Recorders
Key features
- Operation voltage range: 1.65~5.5V
- Inputs Accept Voltages To 5.5V
- High noise immunity
- Low Power Dissipation
- Max tpD Of 3.2 ns At 5V
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 1000-V Charged-Device Model (C101)
- SOT23-6 Package Available
- SOT363 Package Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74LVC2G04DCKR#C19829675TECH PUBLIC · SOT-363 | TECH PUBLIC | SOT-363 | 2,970 | ₹7.08 · 2,970 in stock | View |
 | NC7WZ04P6X#C19829569TECH PUBLIC · SOT-363 | TECH PUBLIC | SOT-363 | 17,940 | ₹6.58 · 17,940 in stock | View |
 | 74LVC2G14GW#C19829575TECH PUBLIC · SOT-363 | TECH PUBLIC | SOT-363 | 1,780 | ₹6.60 · 1,780 in stock | View |
 | SN74LVC2G07DCKR#C19829676TECH PUBLIC · SOT-363 | TECH PUBLIC | SOT-363 | 5,620 | ₹6.93 · 5,620 in stock | View |
 | SN74LVC2G17DCKR#C19829678TECH PUBLIC · SOT-363 | TECH PUBLIC | SOT-363 | 3,660 | ₹7.10 · 3,660 in stock | View |
