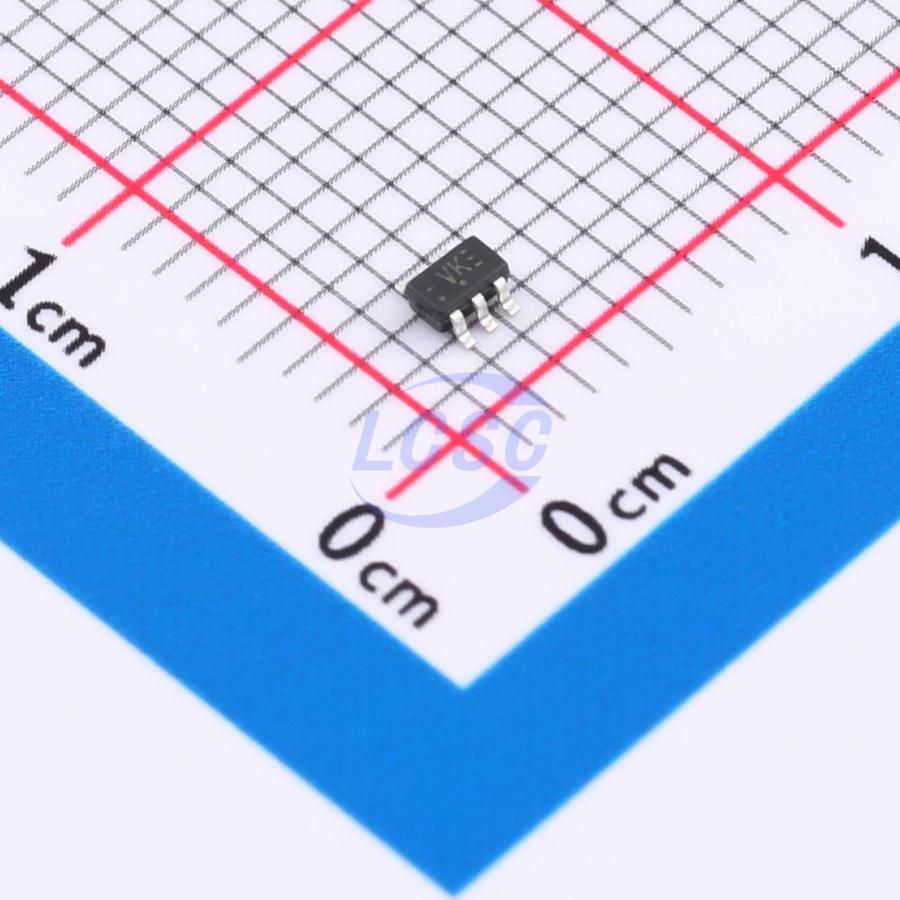

74LVC2G14GW
1.65V~5.5V 1 2 5ns@5V,50pF SOT-363 Buffers, Drivers, Receivers, Transceivers
SOT-363RoHSActive
Dual Schmitt-Trigger Inverter With 5V Tolerant Input
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74LVC2G14GW
- Store part #
- C19829575
- Package / case
- SOT-363
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,780 in stock
#C19829575
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.60 | ₹66.00 |
| 100+ | ₹5.24 | ₹524.00 |
| 300+ | ₹4.56 | ₹1,368.00 |
| 3,000+ | ₹4.05 | ₹12,150.00 |
| 6,000+ | ₹3.64 | ₹21,840.00 |
| 9,000+ | ₹3.44 | ₹30,960.00 |
10 × ₹6.60
₹66.00
excl. GST
₹77.88 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC2G14GW
₹66.00 for 10 + GST
Specifications
- Voltage - Supply
- 1.65V~5.5V
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 10uA
- Function
- Level shifting;Power-off isolation
- Current - Output High(IOH)
- 32mA
- Series
- 74LVC
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Propagation Delay
- 5ns@5V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
Voltage Level Shifting General Purpose Logic Power Down Signal Isolation Wide array of products such as: - PCs, Networking, Notebooks, Netbooks, PDAs - Tablet Computers, E-readers Computer Peripherals, Hard Drives, CD/DVD ROM TV,DVD,DVR,Set-Top Box Cell Phones, Personal Navigation / GPS MP3 Players, Cameras, Video Recorders
Key features
- Operation voltage range: 1.65~5.5V
- 5V Tolerant Input/Output for Interfacing with 5V logic
- ±24mA Output Drive (VCC = 3.3V)
- CMOS Low-Power Consumption and High Noise Immunity
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 1000-V Charged-Device Model (C101)
- SOT23-6 Package Available
- SOT363 Package Available
