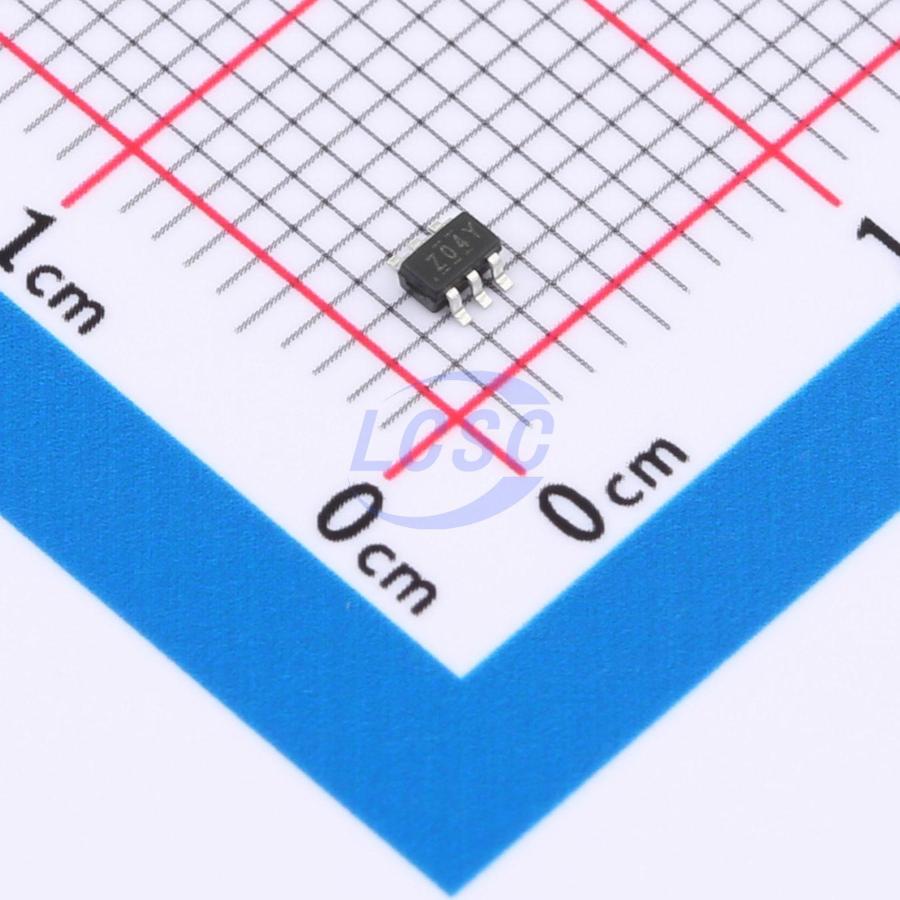

NC7WZ04P6X
1.65V~5.5V 1 2 1.9ns@5V,50pF SOT-363 Buffers, Drivers, Receivers, Transceivers
SOT-363RoHSActive
Dual Inverter
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- NC7WZ04P6X
- Store part #
- C19829569
- Package / case
- SOT-363
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
17,940 in stock
#C19829569
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.58 | ₹65.80 |
| 100+ | ₹5.73 | ₹573.00 |
| 300+ | ₹5.31 | ₹1,593.00 |
| 3,000+ | ₹4.97 | ₹14,910.00 |
| 6,000+ | ₹4.72 | ₹28,320.00 |
| 9,000+ | ₹4.60 | ₹41,400.00 |
10 × ₹6.58
₹65.80
excl. GST
₹77.64 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7WZ04P6X
₹65.80 for 10 + GST
Specifications
- Voltage - Supply
- 1.65V~5.5V
- Quiescent Supply Current
- 10uA
- Function
- Power-off isolation;Level shifting
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Propagation Delay
- 1.9ns@5V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.028 g
Overview
The NC7WZ04 is a dual inverter gate and it provides the Boolean function Y = A(overline) in positive logic. This device has power - down protective circuit to prevent the device from destruction when it is powered down.
Applications
- Voltage Level Shifting
- General Purpose Logic
- Power Down Signal Isolation
- PCs, Networking, Notebooks, Netbooks, PDAs
- Tablet Computers, E - readers
- Computer Peripherals, Hard Drives, CD/DVD ROM
- TV, DVD, DVR, Set - Top Box
- Cell Phones, Personal Navigation / GPS
- MP3 Players, Cameras, Video Recorders
Key features
- Operation voltage range: 1.65~5.5V
- Inputs Accept Voltages To 5.5V
- High noise immunity
- Low Power Dissipation
- Max propagation delay (tPD) of 3.2 ns at 5V
- ESD Protection Exceeds JESD 22 - 2000 - V Human - Body Model (A114 - A)
- 1000 - V Charged - Device Model (C101)
- SOT363 Package Available
