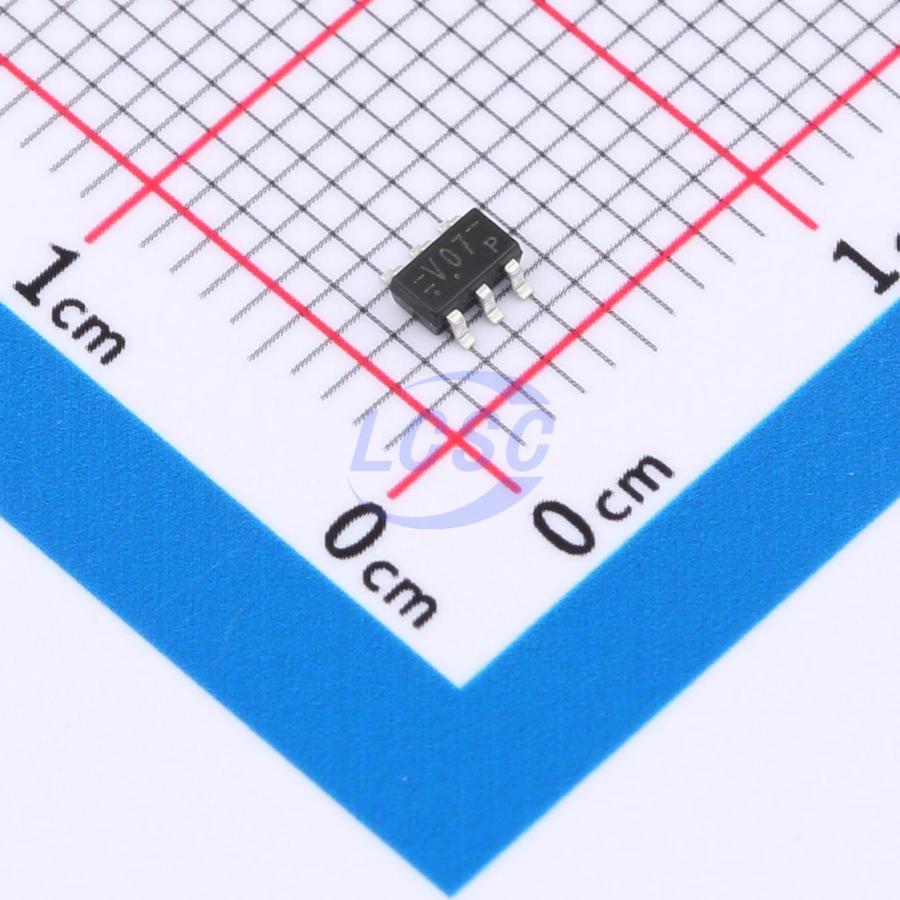

74LVC2G07GV
Schmitt trigger 1.65V~5.5V 1 2 5.4ns@3.3V,50pF SOT-23-6 Buffers, Drivers, Receivers, Transceivers
SOT-23-6RoHSActive
Dual Schmitt-Trigger Buffer
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74LVC2G07GV
- Store part #
- C19829597
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,420 in stock
#C19829597
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.46 | ₹94.60 |
| 100+ | ₹7.38 | ₹738.00 |
| 300+ | ₹6.34 | ₹1,902.00 |
| 3,000+ | ₹5.56 | ₹16,680.00 |
| 6,000+ | ₹4.93 | ₹29,580.00 |
| 9,000+ | ₹4.62 | ₹41,580.00 |
10 × ₹9.46
₹94.60
excl. GST
₹111.63 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC2G07GV
₹94.60 for 10 + GST
Specifications
- Input type
- Schmitt trigger
- Voltage - Supply
- 1.65V~5.5V
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 10uA
- Function
- Level shifting;Power-off isolation
- Current - Output High(IOH)
- 24mA
- Series
- 74LVC
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Propagation Delay
- 5.4ns@3.3V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.035 g
Overview
The 74LVC2G07 is a high-performance, low-power, low-voltage, Si-gate CMOS device which provides two independent buffers with Schmitt trigger action. It is capable of transforming slowly changed input signals into sharply defined, jitter-free output signals.
Applications
- Voltage Level Shifting
- General Purpose Logic
- Power Down Signal Isolation
- PCs, Networking, Notebooks, Netbooks, PDAs
- Tablet Computers, E-readers
- Computer Peripherals, Hard Drives, CD/DVD ROM
- TV, DVD, DVR, Set-Top Box
- Cell Phones, Personal Navigation / GPS
- MP3 Players, Cameras, Video Recorders
Key features
- Operate From 1.65V to 5.5V
- 5 V tolerant input/output for interfacing with 5 V logic
- ±24mA output drive (VCC = 3.3V)
- CMOS low-power consumption and high noise immunity
- OFF Supports Partial-Power-Down Mode Operation
- Latch-up performance exceeds 100mA
- Specified from -40°C to +125°C
- ESD Protection Exceeds JESD 22 - 2000-V Human-Body Model (A114 - A)
- 1000-V Charged-Device Model (C101)
- SOT23-6 Package Available
- SOT363 Package Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74LVC2G17GV#C19829599TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 3,470 | ₹9.45 · 3,470 in stock | View |
 | SN74LVC2G07DBVR#C19829672TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 10,190 | ₹7.17 · 10,190 in stock | View |
 | SN74LVC2G17DBVR#C19829674TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 54,290 | ₹7.87 · 54,290 in stock | View |
 | TP74LVC2G07S6#C42460203TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 2,930 | ₹12.58 · 2,930 in stock | View |
 | 74LVC2G14GV#C19829598TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 1,750 | ₹9.29 · 1,750 in stock | View |
