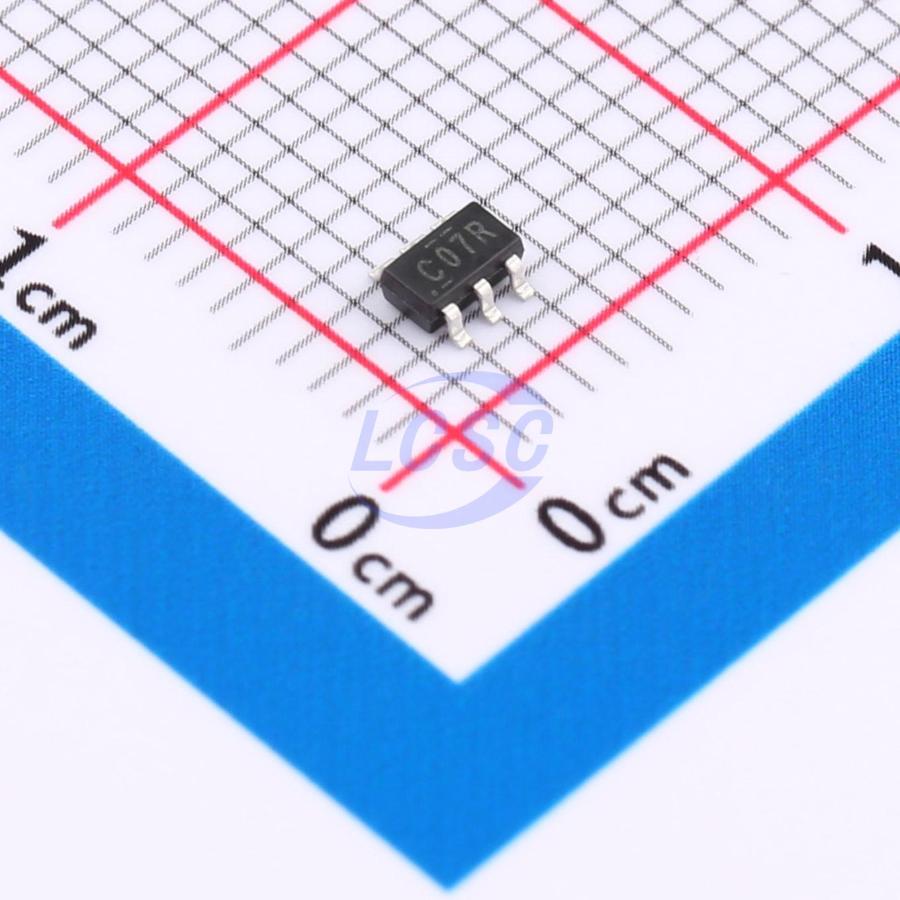

SN74LVC2G07DBVR
Schmitt trigger 1.65V~5.5V 1 2 2.2ns@3.3V,50pF SOT-23-6 Buffers, Drivers, Receivers, Transceivers
SOT-23-6RoHSActive
Dual Inverter
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74LVC2G07DBVR
- Store part #
- C19829672
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,190 in stock
#C19829672
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.17 | ₹71.70 |
| 100+ | ₹5.69 | ₹569.00 |
| 300+ | ₹4.95 | ₹1,485.00 |
| 3,000+ | ₹4.39 | ₹13,170.00 |
| 6,000+ | ₹3.94 | ₹23,640.00 |
| 9,000+ | ₹3.72 | ₹33,480.00 |
10 × ₹7.17
₹71.70
excl. GST
₹84.61 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC2G07DBVR
₹71.70 for 10 + GST
Specifications
- Input type
- Schmitt trigger
- Voltage - Supply
- 1.65V~5.5V
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 10uA
- Function
- Power-off isolation;Level shifting
- Current - Output High(IOH)
- 24mA
- Series
- 74LVC
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Propagation Delay
- 2.2ns@3.3V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.035 g
Overview
The SN74LVC2G07 is a high-performance, low-power, low-voltage, Si-gate CMOS device which provides two independent buffers with Schmitt trigger action. It is capable of transforming slowly changed input signals into sharply defined, jitter-free output signals.
Applications
- Voltage Level Shifting
- General Purpose Logic
- Power Down Signal Isolation
- PCs, Networking, Notebooks, Netbooks, PDAs
- Tablet Computers, E-readers
- Computer Peripherals, Hard Drives, CD/DVD ROM
- TV, DVD, DVR, Set-Top Box
- Cell Phones, Personal Navigation / GPS
- MP3 Players, Cameras, Video Recorders
Key features
- Operate From 1.65V to 5.5V
- 5 V tolerant input/output for interfacing with 5 V logic
- +24mA output drive (VCC = 3.3V)
- CMOS low-power consumption and high noise immunity
- OFF Supports Partial-Power-Down Mode Operation
- Latch-up performance exceeds 100mA
- Specified from -40°C to +125°C
- SOT23-6 Package Available
- SOT363 Package Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74LVC2G17GV#C19829599TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 3,470 | ₹9.45 · 3,470 in stock | View |
 | SN74LVC2G17DBVR#C19829674TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 54,290 | ₹7.87 · 54,290 in stock | View |
 | 74LVC2G07GV#C19829597TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 2,420 | ₹9.46 · 2,420 in stock | View |
 | TP74LVC2G07S6#C42460203TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 2,930 | ₹12.58 · 2,930 in stock | View |
 | 74LVC2G04GV#C19829596TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 1,480 | ₹4.95 · 1,480 in stock | View |
