74LVC2G17GV
Schmitt trigger 1.65V~5.5V 1 2 2.2ns@3.3V,50pF SOT-23-6 Buffers, Drivers, Receivers, Transceivers
SOT-23-6RoHSActive

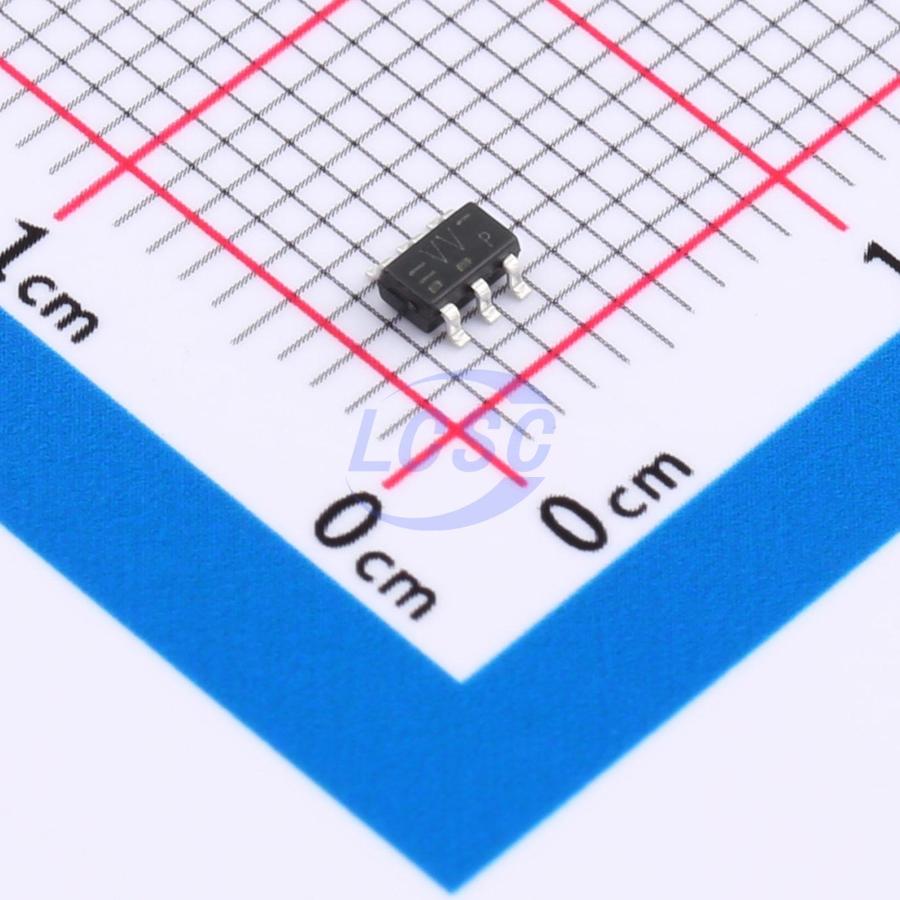

Dual Schmitt-Trigger Buffer
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74LVC2G17GV
- Store part #
- C19829599
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,470 in stock
#C19829599
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.45 | ₹94.50 |
| 100+ | ₹7.61 | ₹761.00 |
| 300+ | ₹6.69 | ₹2,007.00 |
| 3,000+ | ₹6.01 | ₹18,030.00 |
| 6,000+ | ₹5.46 | ₹32,760.00 |
| 9,000+ | ₹5.19 | ₹46,710.00 |
10 × ₹9.45
₹94.50
excl. GST
₹111.51 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC2G17GV
₹94.50 for 10 + GST
Specifications
- Input type
- Schmitt trigger
- Voltage - Supply
- 1.65V~5.5V
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 10uA
- Function
- Level shifting;Power-off isolation
- Current - Output High(IOH)
- 24mA
- Series
- 74LVC
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Propagation Delay
- 2.2ns@3.3V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.034 g
Overview
The 74LVC2G17 is a high-performance, low-power, low-voltage, Si-gate CMOS device which provides two independent buffers with Schmitt trigger action. It is capable of transforming slowly changed input signals into sharply defined, jitter-free output signals.
Key features
- Operate From 1.65V to 5.5V
- 5 V tolerant input/output for interfacing with 5 V logic
- ±24mA output drive (VCC = 3.3V)
- CMOS low-power consumption and high noise immunity
- OFF Supports Partial-Power-Down Mode Operation
- Latch-up performance exceeds 100mA
- Specified from -40°C to +125°C
- ESD Protection Exceeds JESD 22 - 2000-V Human-Body Model (A114 - A)
- 1000-V Charged-Device Model (C101)
- SOT23 - 6 Package Available
- SOT363 Package Available
