TOSHIBADatasheet (PDF)

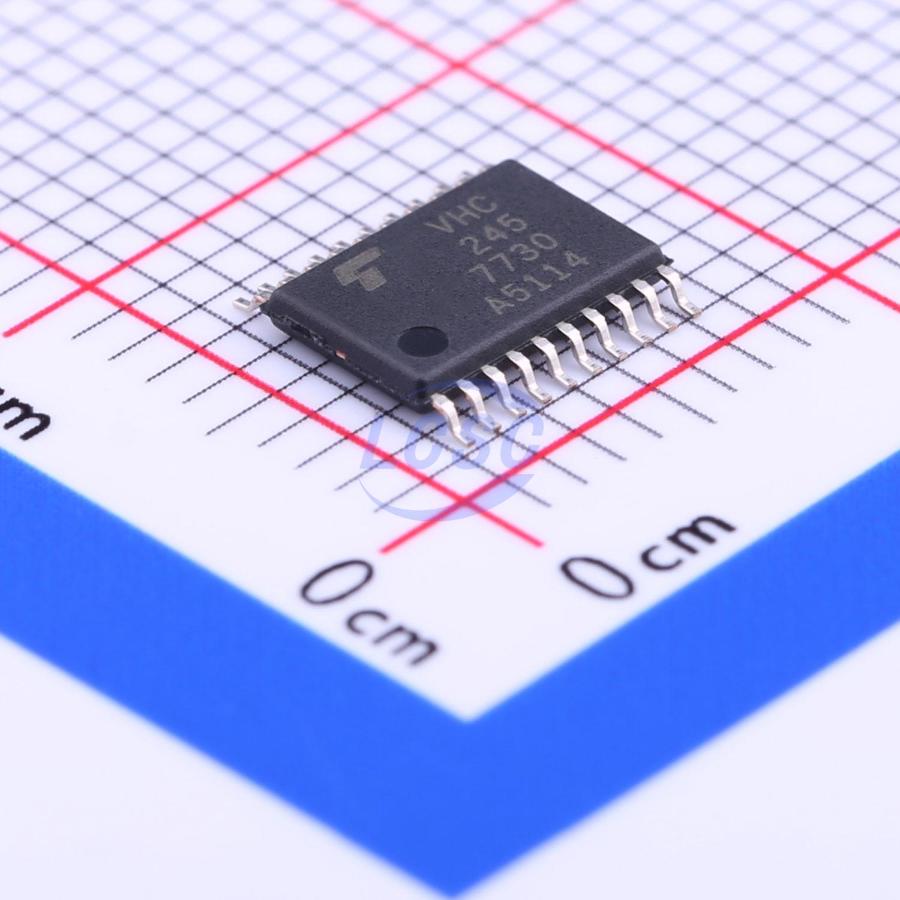

74VHC245FT(BE)
2V~5.5V 8 1 5.5ns@5V,50pF TSSOP-20 Buffers, Drivers, Receivers, Transceivers RoHS
TSSOP-20ROHS CompliantActive
Octal Bus Transceiver
- Manufacturer
- TOSHIBA
- Manufacturer part #
- 74VHC245FT(BE)
- Store part #
- C8096
- Package / case
- TSSOP-20
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,030 in stock
#C8096
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.78 | ₹183.90 |
| 50+ | ₹29.38 | ₹1,469.00 |
| 150+ | ₹26.21 | ₹3,931.50 |
| 500+ | ₹22.25 | ₹11,125.00 |
| 2,500+ | ₹17.50 | ₹43,750.00 |
| 5,000+ | ₹16.44 | ₹82,200.00 |
5 × ₹36.78
₹183.90
excl. GST
₹217.00 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74VHC245FT(BE)
₹183.90 for 5 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 8mA
- Voltage - Supply
- 2V~5.5V
- Series
- 74VHC
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 8mA
- Number of Bits per Element
- 8
- Channel Type
- Bidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 40uA
- Propagation Delay
- 5.5ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.318 g
Overview
The 74VHC245 is an advanced high speed CMOS OCTAL BUS TRANSCEIVER fabricated with silicon gate C2MOS technology. It achieves the high speed operation similar to equivalent Bipolar Schottky TTL while maintaining the CMOS low power dissipation. It is intended for two-way asynchronous communication between data busses. The direction of data transmission is determined by the level of the DIR input. The enable input (G) can be used to disable the device so that the busses are effectively isolated. All inputs are equipped with protection circuits against static discharge.
Key features
- High speed: Propagation delay time =4.0 ns (typ.) at VCC =5 V
- Low power dissipation: ICC =4 μA (max) at Ta =25 ℃
- High noise immunity: ΔVNIH = VNIL = 0.28 VNCC (min)
- Balanced propagation delays: tPLH ≈ tPHL
- Wide operating voltage range: VCC(opr) =2 V to 5.5 V
- Low noise: VOLP =1.0 V (max)
- Pin and function compatible with the 74 series (74AC/HC/AHC etc.) 245 type.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC74VHC245DTR2G#C904176onsemi · TSSOP-20 | onsemi | TSSOP-20 | 35 | ₹116.32 · 35 in stock | View |
 | 74VHC245PW,118#C179339Nexperia · TSSOP-20 | Nexperia | TSSOP-20 | 80,515 | ₹23.30 · 80,515 in stock | View |
 | 74VHC245FT(BJ)#C2676119TOSHIBA · TSSOP-20 | TOSHIBA | TSSOP-20 | 22,295 | ₹22.50 · 22,295 in stock | View |
 | 74AHC245PW,118#C5516Nexperia · TSSOP-20 | Nexperia | TSSOP-20 | 10 | ₹46.41 · 10 in stock | View |
 | 74AHC245PW-Q100J#C554335Nexperia · TSSOP-20 | Nexperia | TSSOP-20 | 179 | ₹94.05 · 179 in stock | View |
