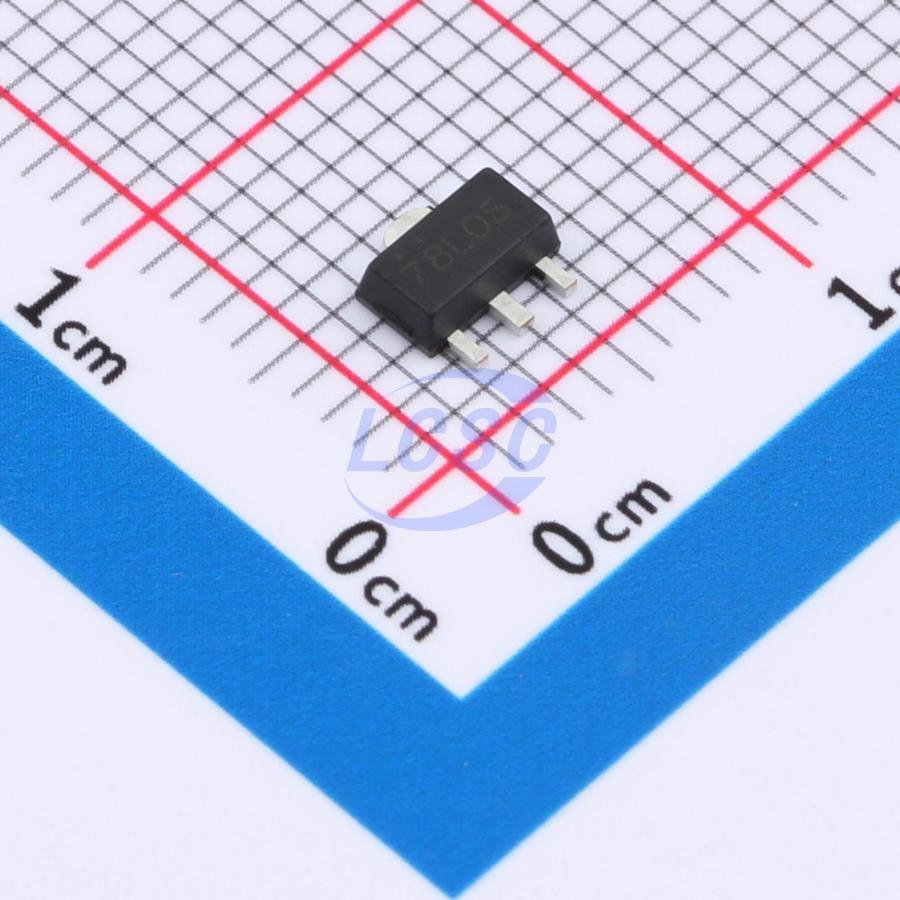

78L05L(30V)
5V Positive Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-89-3ROHS CompliantActive
3-Terminal 100mA Positive Voltage Regulators
- Manufacturer
- TDSEMIC
- Manufacturer part #
- 78L05L(30V)
- Store part #
- C22466217
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,100 in stock
#C22466217
Stock & price checked 28 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.55 | ₹91.00 |
| 200+ | ₹3.56 | ₹712.00 |
| 1,000+ | ₹3.02 | ₹3,020.00 |
| 2,000+ | ₹2.69 | ₹5,380.00 |
| 10,000+ | ₹2.39 | ₹23,900.00 |
| 20,000+ | ₹2.24 | ₹44,800.00 |
20 × ₹4.55
₹91.00
excl. GST
₹107.38 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
78L05L(30V)
₹91.00 for 20 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Ta)
- Supply Current (Iq)
- 2mA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 30V
- Features
- Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.162 g
Overview
The 78LX family is a monolithic fixed voltage regulator integrated circuit. They are suitable for applications that required supply current up to 100mA. The 78LXX family is available in SOT89 - 3、SOT23 - 3 and SOP8 package.
Applications
- Network Products
- Sound Card and Computer Motherboard
- Linear Regulator Source
- CD - ROM and DVD - ROM
- Controller
Key features
- Maximum Output Current of 100mA
- Fixed Output Voltage of 3.3V, 5V, 6V, 8V, 9V, 10V, 12V and 15V
- Thermal Overload Shutdown Protection
- Short Circuit Current Limiting
