TDSEMICDatasheet (PDF)

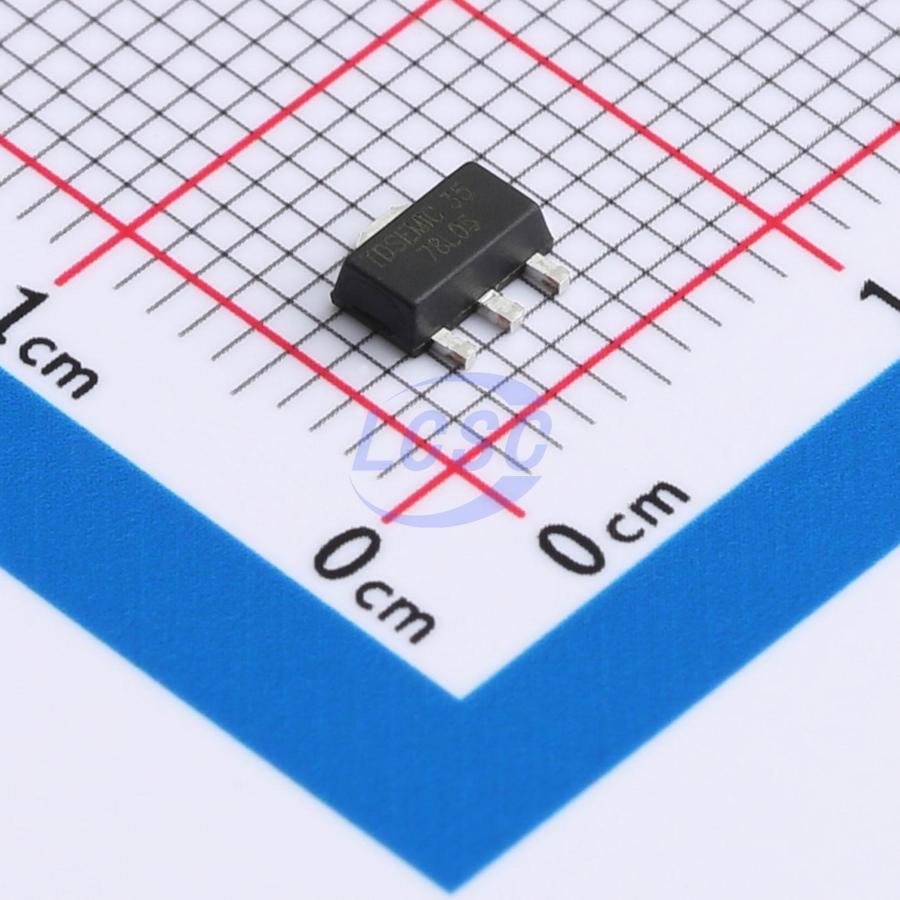

78L05L(35V)
Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-89-3
SOT-89-3ROHS CompliantActive
Linear three-terminal voltage regulator circuit
- Manufacturer
- TDSEMIC
- Manufacturer part #
- 78L05L(35V)
- Store part #
- C22466218
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,180 in stock
#C22466218
Stock & price checked 35 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.31 | ₹106.20 |
| 200+ | ₹4.13 | ₹826.00 |
| 1,000+ | ₹3.48 | ₹3,480.00 |
| 2,000+ | ₹3.10 | ₹6,200.00 |
| 10,000+ | ₹2.75 | ₹27,500.00 |
| 20,000+ | ₹2.58 | ₹51,600.00 |
20 × ₹5.31
₹106.20
excl. GST
₹125.32 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
78L05L(35V)
₹106.20 for 20 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2.3mA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 35V
- Features
- Input overvoltage protection;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.153 g
Overview
78L05 is a 5V output linear three-terminal voltage regulator with a wide input voltage range. It integrates a built-in voltage reference circuit, overvoltage protection, overcurrent protection, and over-temperature protection to ensure reliable circuit operation. The output stage features low output impedance with an output current capability of up to 100mA. The device exhibits low quiescent current and is available in SOT89-3 or TO92-3 packages.
Applications
- Instrumentation
- Motherboard Power
- Multi-Rail Power Systems
- Equipment Power Modules
Key features
- Manufactured on 40V process platform
- Wide input voltage range: 7 - 35V input
- Low quiescent current: typical 2.3mA @ 10V
- Output voltage redundancy range ±3% over full voltage, full current, and full temperature
- Stable output current up to 100mA
- Built-in OTP, OVP, and OCP
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT7150-1#C22466236TDSEMIC · SOT-89 | TDSEMIC | SOT-89 | 11,240 | ₹6.05 · 11,240 in stock | View |
 | 78L05L(30V)#C22466217TDSEMIC · SOT-89-3 | TDSEMIC | SOT-89-3 | 1,100 | ₹4.55 · 1,100 in stock | View |
 | HT7550H-TD(55V)#C49023494TDSEMIC · SOT-89 | TDSEMIC | SOT-89 | 17,930 | ₹11.19 · 17,930 in stock | View |
 | HT7550-1/H-TD(55V)#C52195505TDSEMIC · SOT-89 | TDSEMIC | SOT-89 | 3,865 | ₹14.82 · 3,865 in stock | View |
 | HT7150H-TD(55V)#C49023490TDSEMIC · SOT-89 | TDSEMIC | SOT-89 | 21,100 | ₹9.86 · 21,100 in stock | View |
