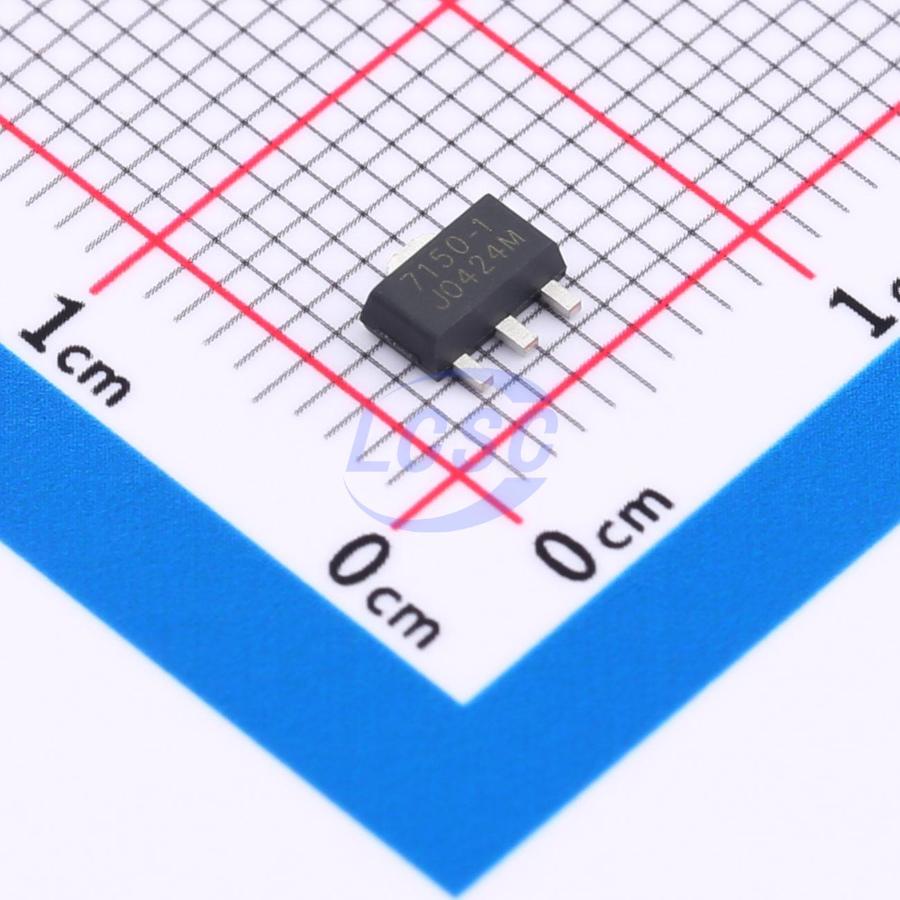

HT7150-1
Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-89
SOT-89ROHS CompliantActive
100mA low-power consumption LDO
- Manufacturer
- TDSEMIC
- Manufacturer part #
- HT7150-1
- Store part #
- C22466236
- Package / case
- SOT-89
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11,240 in stock
#C22466236
Stock & price checked 23 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.05 | ₹60.50 |
| 100+ | ₹4.76 | ₹476.00 |
| 300+ | ₹4.11 | ₹1,233.00 |
| 1,000+ | ₹3.63 | ₹3,630.00 |
| 5,000+ | ₹3.24 | ₹16,200.00 |
| 10,000+ | ₹3.06 | ₹30,600.00 |
10 × ₹6.05
₹60.50
excl. GST
₹71.39 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
HT7150-1
₹60.50 for 10 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 36V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.159 g
Overview
HT71xx-1 is a low dropout linear regulator utilizing CMOS technology. The maximum output current is 100mA with a maximum allowable input voltage of 36V. Several fixed output voltages are available, ranging from 2.5V to 5.0V. CMOS technology ensures low dropout voltage and low quiescent current characteristics.
Applications
- Battery-powered devices
- Communication equipment
- Audio/video devices
Key features
- Low power consumption
- Low dropout voltage
- Low temperature coefficient
- Maximum input voltage: 36V
- Typical quiescent current: 2uA
- Maximum output current: 100mA
- Output voltage accuracy: ±2%
- Package types: SOT23-3, TO92, SOT89
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT7550H-TD(55V)#C49023494TDSEMIC · SOT-89 | TDSEMIC | SOT-89 | 17,930 | ₹11.19 · 17,930 in stock | View |
 | HT7550-1#C22466421TDSEMIC · SOT-89 | TDSEMIC | SOT-89 | 33,510 | ₹6.05 · 33,510 in stock | View |
 | 78L05L(35V)#C22466218TDSEMIC · SOT-89-3 | TDSEMIC | SOT-89-3 | 9,180 | ₹5.31 · 9,180 in stock | View |
 | HT7550-1/H-TD(55V)#C52195505TDSEMIC · SOT-89 | TDSEMIC | SOT-89 | 3,865 | ₹14.82 · 3,865 in stock | View |
 | HT7150H-TD(55V)#C49023490TDSEMIC · SOT-89 | TDSEMIC | SOT-89 | 21,100 | ₹9.86 · 21,100 in stock | View |
