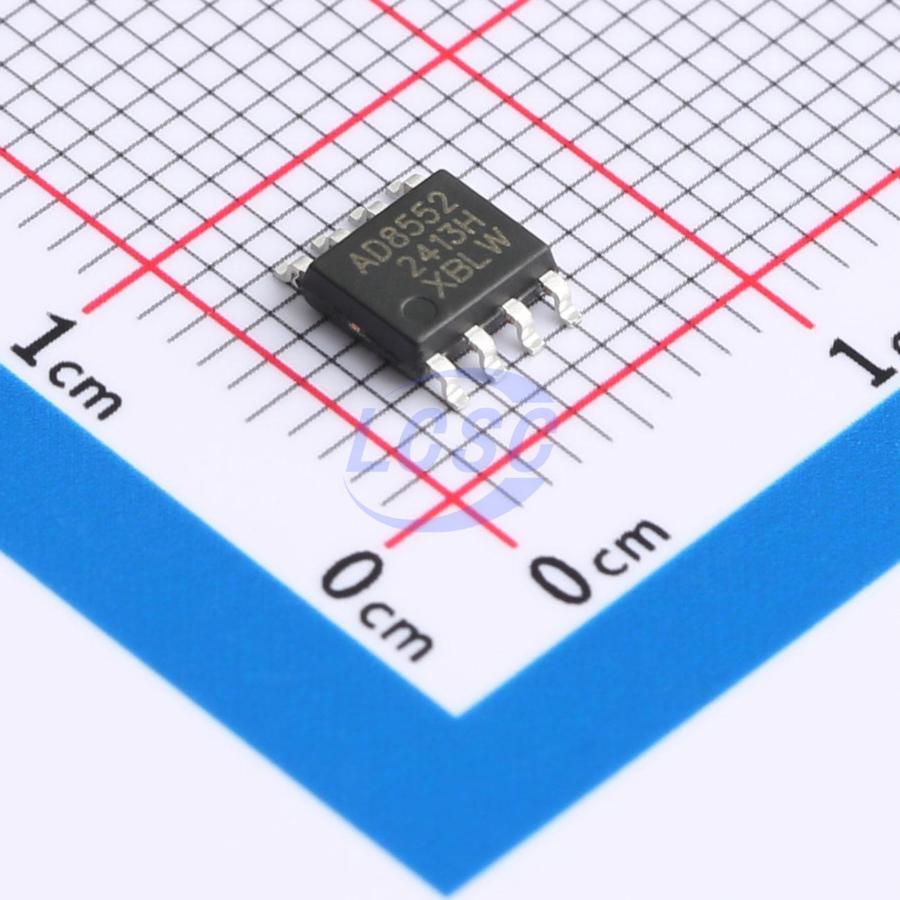

AD8552ARZ(XBLW)

65mA 2 2uV 0.1V/us 110dB 100pA 18uA 400kHz Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOP-8ROHS CompliantSold out at source

Zero-Drift, Rail-to-Rail Input/Output Operational Amplifiers

Manufacturer: XBLW
Manufacturer part #: AD8552ARZ(XBLW)
Store part #: C36936513
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,341 in stock

#C36936513

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹51.07	₹51.07
10+	₹45.19	₹451.90
30+	₹42.15	₹1,264.50
100+	₹39.33	₹3,933.00
500+	₹37.59	₹18,795.00
1,000+	₹36.50	₹36,500.00

Quantity (min 1)

1 × ₹51.07

₹51.07

excl. GST

₹60.26 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

AD8552ARZ(XBLW)

₹51.07 for 1 + GST

Specifications

Output Current: 65mA
Number of Channels: 2
Vos - Input Offset Voltage: 2uV
Slew Rate: 0.1V/us
Input Offset Current(Ios): 100pA
Operating Temperature: -55℃~+125℃
Common Mode Rejection Ratio(CMRR): 110dB
Ib - Input Bias Current: 100pA
Input Offset Voltage Drift(Vos TC): 30nV/℃
Quiescent Current: 18uA
Gain Bandwidth Product: 400kHz
Features: Zero drift / auto-zero
Input Voltage Noise Density: 48nV/√Hz@1kHz
Dual Supply: -2.75V~-900mV;900mV~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Sold out at source
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.199 g

Overview

The AD8551(single), AD8552(dual) and AD8554(quad) are high-precision, low- quiescent current amplifier which can offer high input impedance and rail-to-rail input and output. The amplifier uses auto-zeroing techniques to provide low offset voltage (2μV typ.) and near zero-drift over time and temperature. The AD8551 is available in SOT23-5, SC70-5 and SOP-8. The AD8552 is available in SOP-8 and MSOP-8. The AD8554 is available in SOP-14 and TSSOP-14.

Applications

Strain Gauges
Bridge Amplifier
Electronic Scales
Transducer Applications
Medical Instrumentation
Handheld Test Equipment
Temperature Measurement
Resistance Temperature Detectors

Key features

Rail-to-Rail Input and Output
Supply Range: 1.8V to 5.5V
Low Noise: 48nV/√Hz, 0.1Hz to 10Hz Noise: 0.8µVPP
Excellent DC Precision: Open-loop gain: 135dB, PSRR: 110dB, CMRR: 110dB
Gain bandwidth: 0.4MHz
Quiescent current: 18μA (Typ.)
Low Offset Voltage: 2μV (Typ.)
Zero-Drift: 0.03µV/℃
