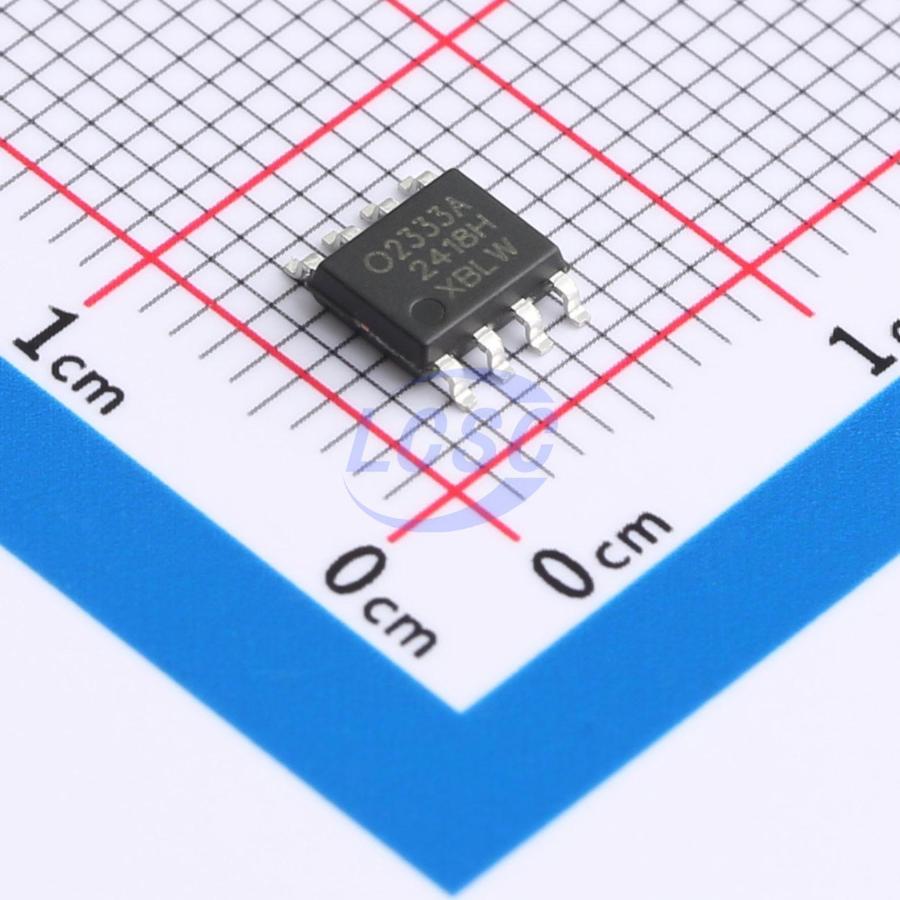

OPA2333AIDR(XBLW)

24mA 2 2uV 0.1V/us 110dB 100pA 20uA 400kHz Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOP-8ROHS CompliantSold out at source

High-Precision, Rail-to-Rail Operational Amplifier

Manufacturer: XBLW
Manufacturer part #: OPA2333AIDR(XBLW)
Store part #: C36936515
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,825 in stock

#C36936515

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹47.79	₹47.79
10+	₹41.29	₹412.90
30+	₹38.57	₹1,157.10
100+	₹35.21	₹3,521.00
500+	₹33.75	₹16,875.00
1,000+	₹32.69	₹32,690.00

Quantity (min 1)

1 × ₹47.79

₹47.79

excl. GST

₹56.39 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

OPA2333AIDR(XBLW)

₹47.79 for 1 + GST

Specifications

Output Current: 24mA
Number of Channels: 2
Vos - Input Offset Voltage: 2uV
Slew Rate: 0.1V/us
Input Offset Current(Ios): 100pA
Operating Temperature: -55℃~+150℃
Common Mode Rejection Ratio(CMRR): 110dB
Ib - Input Bias Current: 100pA
Input Offset Voltage Drift(Vos TC): 50nV/℃
Quiescent Current: 20uA
Gain Bandwidth Product: 400kHz
Features: Zero drift / auto-zero
Input Voltage Noise Density: 48nV/√Hz@1kHz
Dual Supply: -2.75V~-900mV;900mV~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Sold out at source
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.198 g

Overview

The OPA333, OPA2333 and are high-precision, low-quiescent current amplifier which can offer high input impedance and rail-to-rail input and output. The amplifier uses auto-zeroing techniques to provide low offset voltage( 2 μV type) and near zero-drift over time and temperature. These devices are optimized for low-voltage, single-supply operation. The OPAX333 family provides excellent CMRR with no crossover associated with traditional complementary input levels. The design achieves excellent performance over the drive Analog-to-digital converter (ADC) process without reducing Differential nonlinearity. The OPA333 (single) is available in SOT23-5 and SOP-8. The OPA2333 (dual) is available in SOP-8 and MSOP-8.

Applications

Wearables
Smartphones
Electronic Scales
Circuit Breakers
Medical Instrumentation
Battery-Powered Instruments
Handheld Test Equipment
Resistance Temperature Detectors

Key features

Rail-to-Rail Input and Output
Zero-Drift: 0.05µV/℃
Low Noise: 48nV/√Hz
0.1Hz to 10Hz Noise: 0.8µVPP
Gain bandwidth: 0.4MHz
Quiescent current: 18μA (Typ.)
Supply Range: 1.8V - 5.5V
Low Offset Voltage: 2μV (Typ.)
