Wuxi I-core ElecDatasheet (PDF)

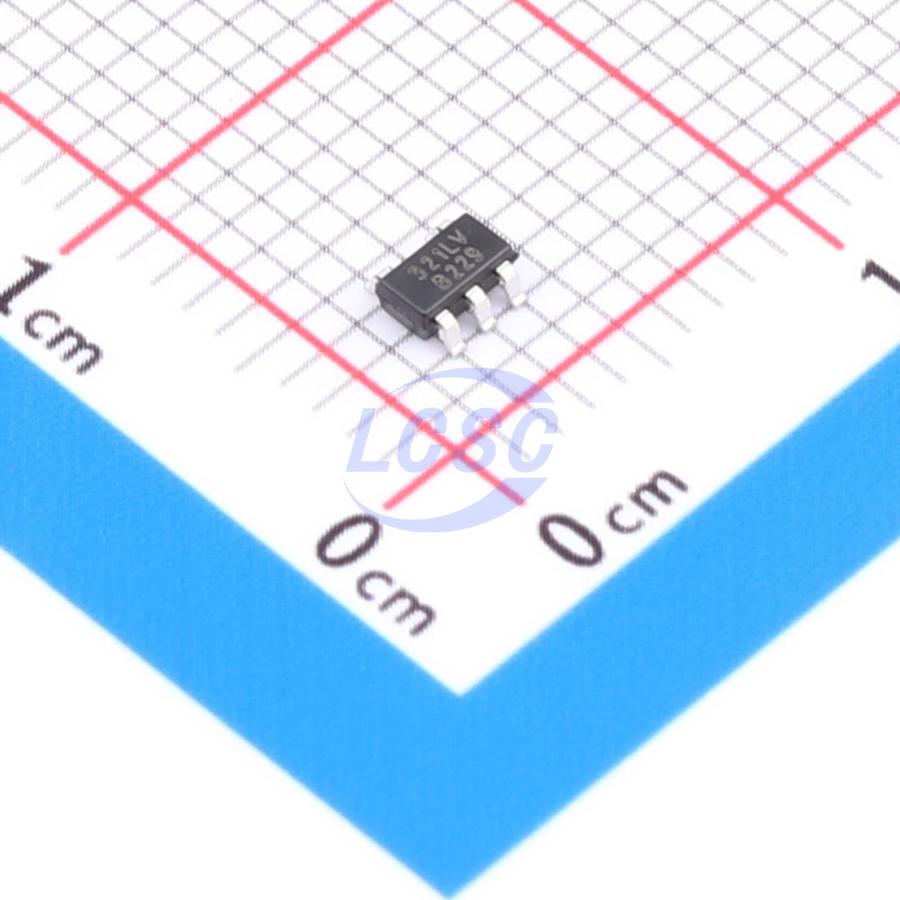

AiP321LVGB235.TR
90mA 1 1mV 700V/ms 1pA 85dB 1MHz 160uA Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps
SOT-23-5RoHSActive
- Manufacturer
- Wuxi I-core Elec
- Manufacturer part #
- AiP321LVGB235.TR
- Store part #
- C50338826
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,770 in stock
#C50338826
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.70 | ₹78.50 |
| 50+ | ₹12.48 | ₹624.00 |
| 150+ | ₹10.86 | ₹1,629.00 |
| 500+ | ₹9.64 | ₹4,820.00 |
| 2,500+ | ₹8.68 | ₹21,700.00 |
| 5,000+ | ₹8.19 | ₹40,950.00 |
5 × ₹15.70
₹78.50
excl. GST
₹92.63 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AiP321LVGB235.TR
₹78.50 for 5 + GST
Specifications
- Output Current
- 90mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 1mV
- Slew Rate
- 700V/ms
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 1pA
- Common Mode Rejection Ratio(CMRR)
- 85dB
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Gain Bandwidth Product
- 1MHz
- Quiescent Current
- 160uA
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.5V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.062 g
Overview
AiP321LV is an operational amplifier with rail-to-rail input and output, featuring a wide common-mode input voltage range and output voltage swing.
Applications
- Sense amplifier
- DC gain block
- Audio amplifier
Key features
- Supply voltage range: 2.5V ~ 5.5V
- Input offset voltage: < 4 mV
- Offset voltage drift: 2 uV/°C
- Gain bandwidth product: 1 MHz
- Output drive current: 100 mA
- Rail-to-rail input and output
- Slew rate: 0.7 V/µs
- Quiescent current: 160 µA
- Operating temperature range: -40°C ~ +85°C
- Package: SOT23-5
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AiP8731GB235.TR#C54899983Wuxi I-core Elec · SOT-23-5 | Wuxi I-core Elec | SOT-23-5 | 2,935 | ₹40.40 · 2,935 in stock | View |
 | AiP8711GB235.TR#C54899981Wuxi I-core Elec · SOT-23-5 | Wuxi I-core Elec | SOT-23-5 | 200 | ₹37.85 · 200 in stock | View |
 | AiP8031GB235.TR#C52953049Wuxi I-core Elec · SOT-23-5 | Wuxi I-core Elec | SOT-23-5 | 2,995 | ₹44.29 · 2,995 in stock | View |
| AiP8721GB235.TR#C52722726Wuxi I-core Elec · SOT-23-5 | Wuxi I-core Elec | SOT-23-5 | On request | Price on request | Quote | |
