Wuxi I-core ElecDatasheet (PDF)

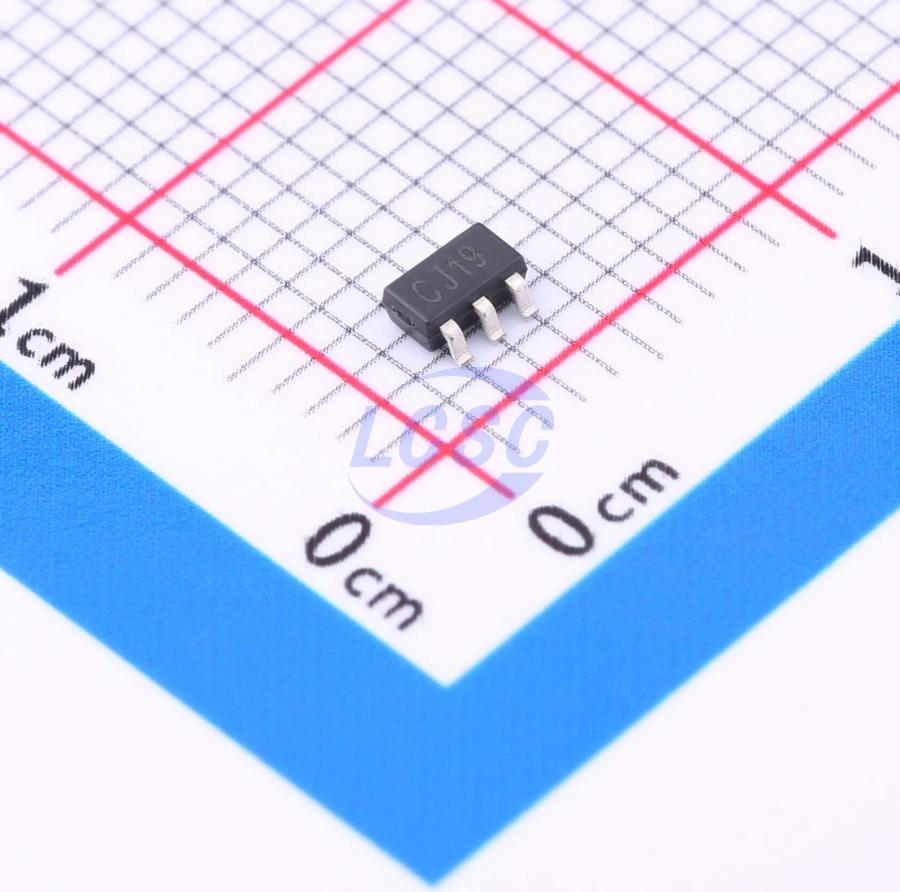

AIP74LV1T125GB235.TR
1.6V~5.5V 1 1 3.2ns@5V,15pF SOT-23-5 Buffers, Drivers, Receivers, Transceivers
SOT-23-5RoHSActive
Single Supply Translating Buffer/Line Driver; 3-state
- Manufacturer
- Wuxi I-core Elec
- Manufacturer part #
- AIP74LV1T125GB235.TR
- Store part #
- C5354320
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,800 in stock
#C5354320
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹12.40 | ₹124.00 |
| 100+ | ₹9.59 | ₹959.00 |
| 300+ | ₹8.18 | ₹2,454.00 |
| 3,000+ | ₹7.13 | ₹21,390.00 |
| 6,000+ | ₹6.28 | ₹37,680.00 |
| 9,000+ | ₹5.86 | ₹52,740.00 |
10 × ₹12.40
₹124.00
excl. GST
₹146.32 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AIP74LV1T125GB235.TR
₹124.00 for 10 + GST
Specifications
- Voltage - Supply
- 1.6V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+105℃
- Quiescent Supply Current
- 10uA
- Function
- Level shifting;Output enable
- Current - Output High(IOH)
- 8mA
- Series
- 74LV
- Current - Output Low(IOL)
- 8mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 3.2ns@5V,15pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
The AiP74LV1T125 is a single, level translating buffer/line driver with 3-state output. The low threshold inputs support 1.8V input logic at VCC = 3.3V and can be used in 1.8V to 3.3V level up translation. In addition, the 5V tolerant input pins enable down translation (3.3V to 2.5V output at VCC = 2.5V). The 3-state output is controlled by the output enable input (OE). A HIGH-level at OE causes the output to assume a high-impedance OFF-state. The output level is referenced to the supply voltage and supports 1.8V, 2.5V, 3.3V and 5.0V CMOS levels. The wide VCC range permits the generation of output levels to connect to controllers or processors.
Key features
- Single supply voltage translator at 1.8V, 2.5V, 3.3
- Up translation 1.2V to 1.8V at VCC = 1.8V; 1.5V to 2.5V at VCC = 2.5V; 1.8V to 3.3V at VCC = 3.3V; 3.3V to 5.0V at VCC = 5.0V
- Down translation 3.3V to 1.8V at VCC = 1.8V; 3.3V to 2.5V at VCC = 2.5V; 5.0V to 3.3V at VCC = 3.3V
- 5V tolerant inputs
- Specified from -40°C to +105°C
- Packaging information: SOT23-5/SOT353
