DIODESDatasheet (PDF)

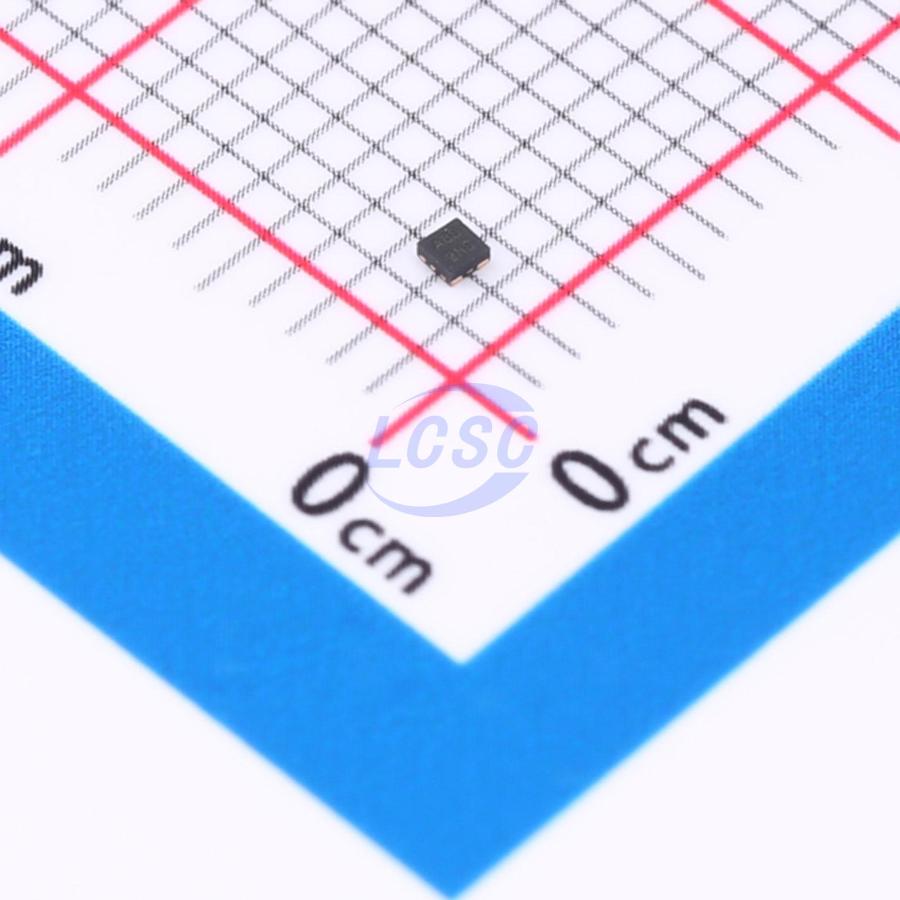

AP7354-15FS4-7
1.5V Positive Fixed X2-DFN1010-4 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
X2-DFN1010-4ROHS3 CompliantActive
150mA ULTRA-LOW QUIESCENT CURRENT LDO WITH ENABLE
- Manufacturer
- DIODES
- Manufacturer part #
- AP7354-15FS4-7
- Store part #
- C5564274
- Package / case
- X2-DFN1010-4
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
70 in stock
#C5564274
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.77 | ₹138.85 |
| 50+ | ₹27.16 | ₹1,358.00 |
| 150+ | ₹26.76 | ₹4,014.00 |
| 500+ | ₹26.37 | ₹13,185.00 |
5 × ₹27.77
₹138.85
excl. GST
₹163.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
AP7354-15FS4-7
₹138.85 for 5 + GST
Specifications
- Output Voltage
- 1.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 250nA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 150mA
- Output Type
- Fixed
- Features
- Enable control;Output discharge;Short Circuit Protection
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.011 g
Overview
The AP7354 is a low dropout regulator with high output voltage accuracy. The AP7354 includes a voltage reference, error amplifier, current limit circuit, and an enable input to turn it on/off. With the integrated resistor network, fixed output voltage versions can be delivered. With its ultra-low quiescent current, the AP7354 is well-suited for low-power handheld, wearable devices, and other battery-operated devices requiring an extended time period until new battery replacement. The AP7354 is available in SOT23, SOT25, and X2-DFN1010-4 (Type B) packages.
Applications
- Wearable Electronics
- Sensor Module for Internet-of-Things (IoT)
- Wireless Communication Module
- Battery-Operated Device Camera Image Sensor
Key features
- Wide VIN Range: 2.0V to 5.5V
- Guarantee Output Current: 150mA
- Output Voltage Range: 1.1V to 4.5V
- VOUT Accuracy: ±1%
- Quiescent Current as Low as 0.25μA
- Output Discharge Available for Devices in SOT25 or X2-DFN1010-4 (Type B) Typical Standby Current: 0.02μA
- ESD Protection Exceeds JESD 22: Exceeds 4000V Human Body Model (A114), Exceeds 400V Machine Model (A115)
- Latch-Up Exceeds 400mA per JESD 78, Class I
- Moisture Sensitivity: Level 1 per J-STD-020
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| TPS7A0315PDQNR#C2866138TI · SON-4(1x1) | TI | SON-4(1x1) | 32 | ₹51.11 · 32 in stock | View | |
| TLV71715PDQNR#C2864046TI · X2SON-4-EP(1x1) | TI | X2SON-4-EP(1x1) | 100 | ₹30.06 · 100 in stock | View | |
 | MS3236-1.5YUTDN4#C49208545MSKSEMI · DFN-4L(1x1) | MSKSEMI | DFN-4L(1x1) | 4,420 | ₹10.13 · 4,420 in stock | View |
 | AP7351D-15FS4-7B#C6861311DIODES · X2-DFN1010-4 | DIODES | X2-DFN1010-4 | 40 | ₹42.10 · 40 in stock | View |
 | NCP170AMX150TCG#C892230onsemi · XDFN-4-EP(1x1) | onsemi | XDFN-4-EP(1x1) | 890 | ₹28.06 · 890 in stock | View |
