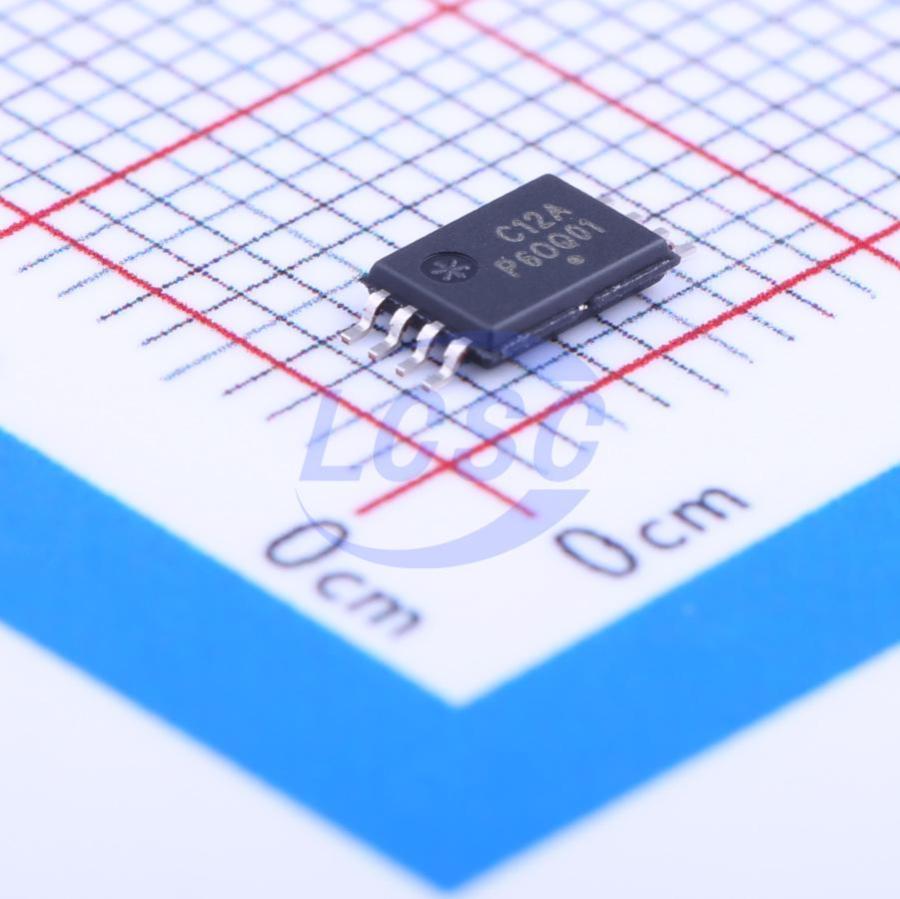

CAT24C512YI-GT3
512Kbit 1MHz I2C TSSOP-8 Memory RoHS
512 Kb I2c CMOS Serial EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,691 in stock
#C56096
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹134.48 | ₹134.48 |
| 10+ | ₹108.63 | ₹1,086.30 |
| 30+ | ₹95.60 | ₹2,868.00 |
| 100+ | ₹82.78 | ₹8,278.00 |
| 500+ | ₹70.40 | ₹35,200.00 |
| 1,000+ | ₹66.48 | ₹66,480.00 |
1 × ₹134.48
₹134.48
excl. GST
₹158.69 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CAT24C512YI-GT3
₹134.48 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in error correction code (ECC) function;Built-in power-on reset (POR);Noise suppression function
- Memory Size
- 512Kbit
- Voltage - Supply
- 1.8V~5.5V;2.5mA
- Clock Frequency
- 1MHz
- Access Time
- 3.5us;0.9us;0.4us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 5uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.3 g
Overview
The CAT24C512 is a 512 Kb Serial CMOS EEPROM, internally organized as 65,536 words of 8 bits each. It features a 128−byte page write buffer and supports the Standard (100 kHz), Fast (400 kHz) and Fast−Plus (1 MHz) I²C protocol. Write operations can be inhibited by taking the WP pin High (this protects the entire memory). External address pins make it possible to address up to eight CAT24C512 devices on the same bus. On−Chip ECC (Error Correction Code) makes the device suitable for high reliability applications.
Key features
- Supports Standard, Fast and Fast−Plus I²C Protocol
- 1.8 V to 5.5 V Supply Voltage Range
- 128−Byte Page Write Buffer
- Hardware Write Protection for Entire Memory
- Schmitt Triggers and Noise Suppression Filters on I²C Bus Inputs (SCL and SDA)
- Low Power CMOS Technology
- 1,000,000 Program/Erase Cycles
- 100 Year Data Retention
- Industrial and Extended Temperature Range
- 8−pin PDIP, SOIC, TSSOP, MSOP, 8−pad UDFN and 8−ball WLCSP Packages
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ZD24C512A-XGMT#C53284087Zetta · TSSOP-8 | Zetta | TSSOP-8 | 4,413 | ₹67.66 · 4,413 in stock | View |
 | FT24C512A-ETR-T#C417377FMD(Fremont Micro Devices) · TSSOP-8 | FMD(Fremont Micro Devices) | TSSOP-8 | 2,485 | ₹42.64 · 2,485 in stock | View |
 | FT24C512A-TTR-T#C5263785FMD(Fremont Micro Devices) · TSSOP-8 | FMD(Fremont Micro Devices) | TSSOP-8 | 65 | ₹38.31 · 65 in stock | View |
 | FM24C512D-TS-T-G#C192125FUDAN MICRO · TSSOP-8 | FUDAN MICRO | TSSOP-8 | 6,128 | ₹58.33 · 6,128 in stock | View |
 | BR24G512FVT-3AGE2#C2061050ROHM · TSSOP-8 | ROHM | TSSOP-8 | 1 | ₹158.48 · 1 in stock | View |
