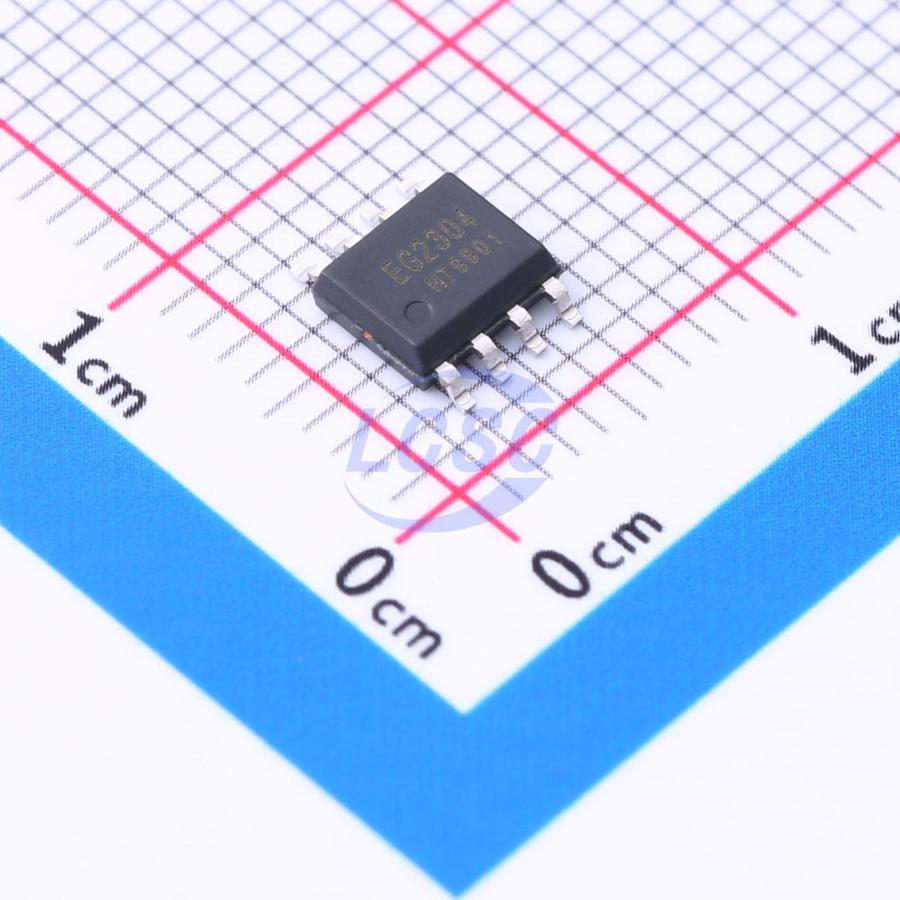

EG2304

EG2304 is a cost-effective gate driver IC for MOSFETs and IGBTs. It integrates a logic signal input processing circuit, undervoltage lockout (UVLO) circuit, level shift circuit, pulse filter circuit, and output driver circuit, designed specifically for brushless motor controllers and DC-DC power supply driver circuits. The EG2304 supports a high-side operating voltage up to 550V, with a wide low-side VCC supply voltage range of 10V~25V. The HIN input channel has a built-in 200K pull-down resistor, and the LIN input channel has a built-in 200K pull-down resistor, ensuring both the high-side and low-side power MOSFETs remain off when the inputs are floating. The output current capability is IO +/-0.3/0.6A, housed in an SOP8 package.

Applications

• Mobile power high-voltage fast-charging switching power supply
• Wireless charging driver
• Variable frequency water pump controller
• DC-DC power supply
• Brushless motor driver

Key features

• High-side floating bootstrap power supply design, withstand voltage up to 600V
• Compatible with 5V and 3.3V input voltage
• Maximum frequency up to 500KHz
• Under-voltage protection on VCC and VB supply rails
• Low-side VCC voltage range: 10V–25V
• Output current capability: |0 +/- 0.3A / 0.6A
• HIN input channel active-high, controls high-side HO output
• LIN input channel active-high, controls low-side LO output
• Minimal external components
• Package: SOP8
• Lead-free, halogen-free, RoHS compliant
