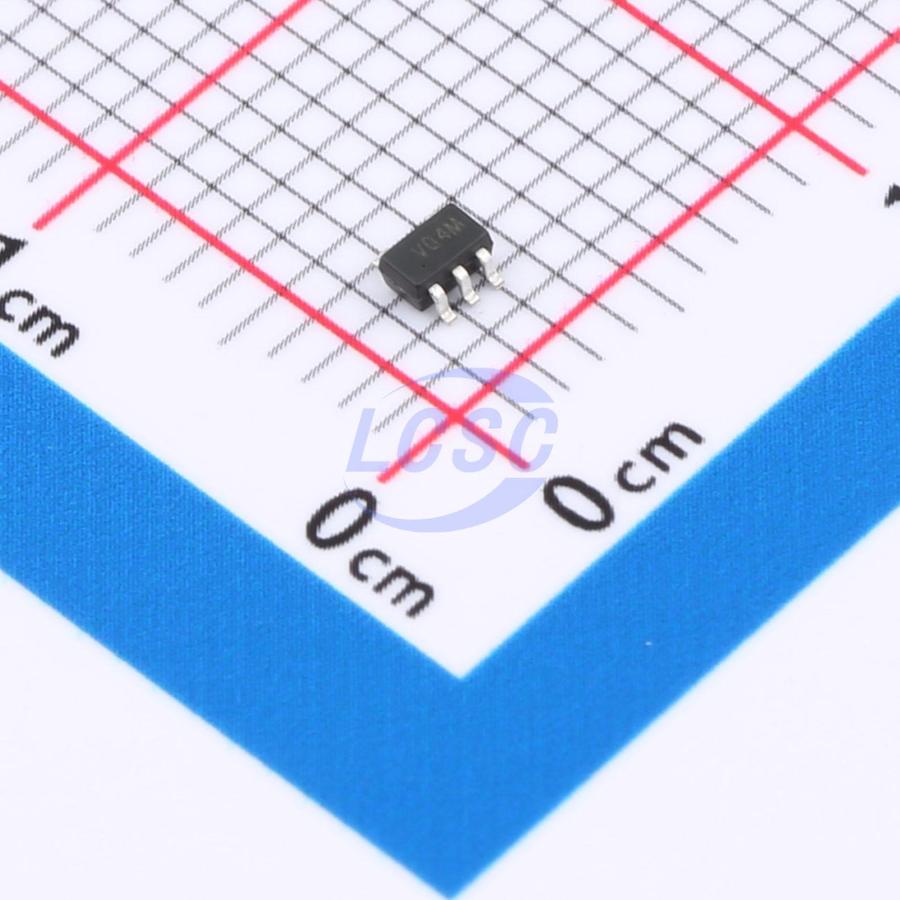

EM74LVC1G126GW
Schmitt trigger 1.65V~5.5V 1 1 3.6ns@3.3V,50pF SOT-353 Buffers, Drivers, Receivers, Transceivers
SOT-353RoHSActive
Bus buffer/line driver; 3-state
- Manufacturer
- EnergyMath
- Manufacturer part #
- EM74LVC1G126GW
- Store part #
- C49188131
- Package / case
- SOT-353
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,760 in stock
#C49188131
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.05 | ₹60.50 |
| 100+ | ₹4.79 | ₹479.00 |
| 300+ | ₹4.15 | ₹1,245.00 |
| 3,000+ | ₹3.68 | ₹11,040.00 |
| 6,000+ | ₹3.29 | ₹19,740.00 |
| 9,000+ | ₹3.11 | ₹27,990.00 |
10 × ₹6.05
₹60.50
excl. GST
₹71.39 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
EM74LVC1G126GW
₹60.50 for 10 + GST
Specifications
- Input type
- Schmitt trigger
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 4uA
- Function
- Level shifting;Power-off isolation;Output enable
- Current - Output High(IOH)
- 24mA
- Series
- 74LVC
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 3.6ns@3.3V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
The EM74LVC1G126 is a single buffer/line driver with 3-state output. Inputs can be driven by 3.3V or 5V devices. This feature allows these devices to be used as level translators in mixed 3.3V and 5V environments. Schmitt-trigger action on all inputs makes the circuit tolerant of slower input rise and fall times. The device is fully specified for partial power-down applications using I_OFF. The I_OFF circuit disables the output, preventing potentially destructive backflow current through the device when it is powered down.
Key features
- Wide supply voltage range: 1.65 V to 5.5 V
- Overvoltage-tolerant inputs up to 5.5 V
- High noise immunity
- CMOS low power consumption
- I_OFF circuitry enables partial power-down mode operation
- ±24 mA output drive capability (V_CC = 3.0 V)
- Latch-up performance exceeds 100 mA
- Direct interface with TTL levels
- Compliant with JEDEC standards: JESD8-7 (1.65 V to 1.95 V), JESD8-5 (2.3 V to 2.7 V), JESD8C (2.7 V to 3.6 V), JESD36 (4.5 V to 5.5 V)
- ESD protection: HBM ANSI/ESDA/JEDEC JS-001 Class 3B exceeds 8000 V; MM JESD22-A115C Class C exceeds 550 V; CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000 V
- Multiple package options
