EnergyMathDatasheet (PDF)

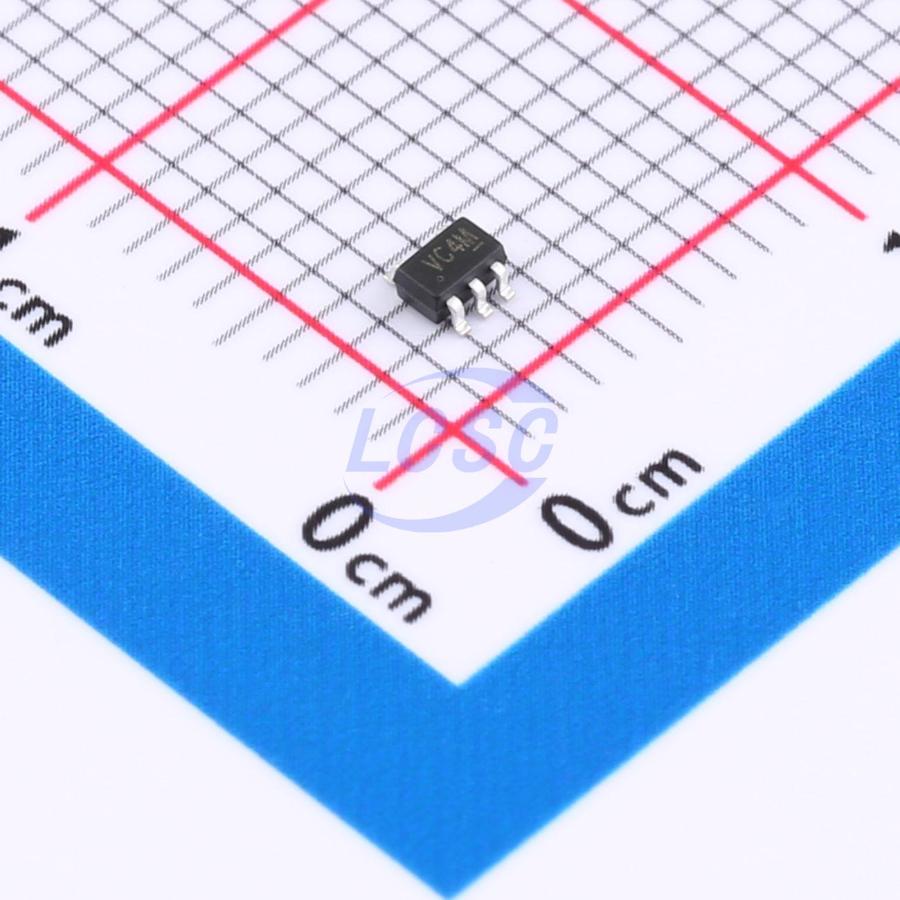

EM74LVC1G17GW
Schmitt trigger 1.65V~5.5V 1 1 4.3ns@3.3V,50pF SOT-353 Buffers, Drivers, Receivers, Transceivers
SOT-353RoHSActive
Single Schmitt trigger buffer
- Manufacturer
- EnergyMath
- Manufacturer part #
- EM74LVC1G17GW
- Store part #
- C49188124
- Package / case
- SOT-353
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,800 in stock
#C49188124
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.91 | ₹59.10 |
| 100+ | ₹4.67 | ₹467.00 |
| 300+ | ₹4.05 | ₹1,215.00 |
| 3,000+ | ₹3.59 | ₹10,770.00 |
| 6,000+ | ₹3.21 | ₹19,260.00 |
| 9,000+ | ₹3.03 | ₹27,270.00 |
10 × ₹5.91
₹59.10
excl. GST
₹69.74 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
EM74LVC1G17GW
₹59.10 for 10 + GST
Specifications
- Input type
- Schmitt trigger
- Voltage - Supply
- 1.65V~5.5V
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 4uA
- Function
- Level shifting;Power-off isolation
- Current - Output High(IOH)
- 24mA
- Series
- 74LVC
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 4.3ns@3.3V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.026 g
Overview
EM74LVC1G17 is a single buffer Schmitt-trigger. Its input can be driven by 3.3V or 5V devices. This feature allows the device to be used as a level translator in mixed 3.3V and 5V environments. The device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing potentially damaging backflow current when the device is powered down.
Key features
- Wide supply voltage range: 1.65V to 5.5V
- Overvoltage-tolerant inputs to 5.5V
- High noise immunity
- ±24 mA output drive capability (VCC = 3.0V)
- CMOS low power consumption
- Latch-up performance exceeds 100 mA
- Direct TTL-level interface compatible
- IOFF circuit enables partial power-down mode operation
- Unlimited rise and fall times
- Compliant with JEDEC standards: JESD8-7 (1.65V to 1.95V), JESD8-5 (2.3V to 2.7V), JESD8B/JESD36 (2.7V to 3.6V)
- ESD protection: HBM ANSI/ESDA/JEDEC JS-001 Class 3B exceeds 8000V, MM JESD22-A115C Class C exceeds 550V, CDM ANSI/ESDA/JEDEC JS-002 C3 exceeds 2000V
- Multiple package options
