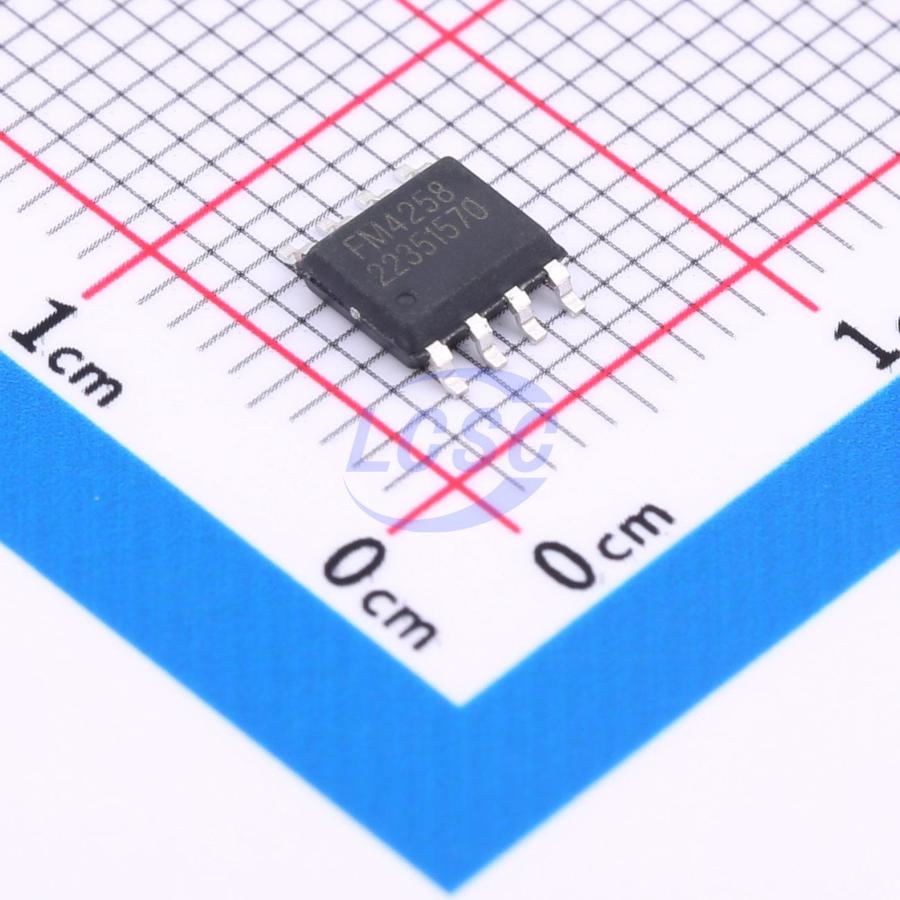

FM4258
Battery Charging IC Lithium-ion ESOP-8
High-efficiency charging management IC for dual-cell lithium batteries with 5V USB input
- Manufacturer
- FM
- Manufacturer part #
- FM4258
- Store part #
- C19630717
- Package / case
- ESOP-8
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,685 in stock
#C19630717
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.34 | ₹146.70 |
| 50+ | ₹23.01 | ₹1,150.50 |
| 150+ | ₹20.28 | ₹3,042.00 |
| 500+ | ₹16.89 | ₹8,445.00 |
| 2,500+ | ₹15.39 | ₹38,475.00 |
| 4,000+ | ₹14.49 | ₹57,960.00 |
5 × ₹29.34
₹146.70
excl. GST
₹173.11 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
FM4258
₹146.70 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 311uA
- Type of Battery
- Lithium Battery
- Operating Voltage
- 3.6V~7V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Over-discharge protection;Overcurrent Protection;Short-Circuit Protection;Overvoltage protection
- The Chip Type
- Charging IC
- Charge Current - Max
- 2.5A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.165 g
Overview
FM4258 is a highly integrated and reliable dual-cell lithium battery boost charging management IC. The charging current is configurable via an external resistor. The charging system integrates three control loops: input adaptive loop, constant voltage output loop, and constant current output loop, delivering superior performance for charging applications. The boost switching charge converter operates at 650KHz, supports up to 2.5A input charging current, and achieves 90% conversion efficiency. With a 5V input voltage and a built-in adaptive loop, it intelligently adjusts the charging current to be compatible with all adapters. Integrated power MOSFETs and an asynchronous switching architecture minimize the number of external components required, effectively reducing overall solution size and BOM cost. Comprehensive protection features are integrated, including input overvoltage, input undervoltage, output short circuit, output overvoltage, and over-temperature protection. Available in a compact ESOP8 package, with a rated operating temperature range of -40°C to 85°C.
Applications
- Two-cell series lithium battery charging walkie-talkie
- Bluetooth speaker
- E-cigarette
- Power tools
Key features
- Input voltage operating range: 3.6V ~ 5.5V
- 5V, 2.5A input asynchronous switching boost charging
- Trickle/constant current/constant voltage charging
- Integrated power MOSFET
- Boost charging efficiency up to 90%
- Externally adjustable charging current
- Input adaptive charging, compatible with all adapters
- 650KHz switching frequency, supports 2.2uH inductor
- LED charge status indication support
- Output overvoltage and short-circuit protection
- Input undervoltage and overvoltage protection
- OTP thermal protection
- MPL maximum power limiting
