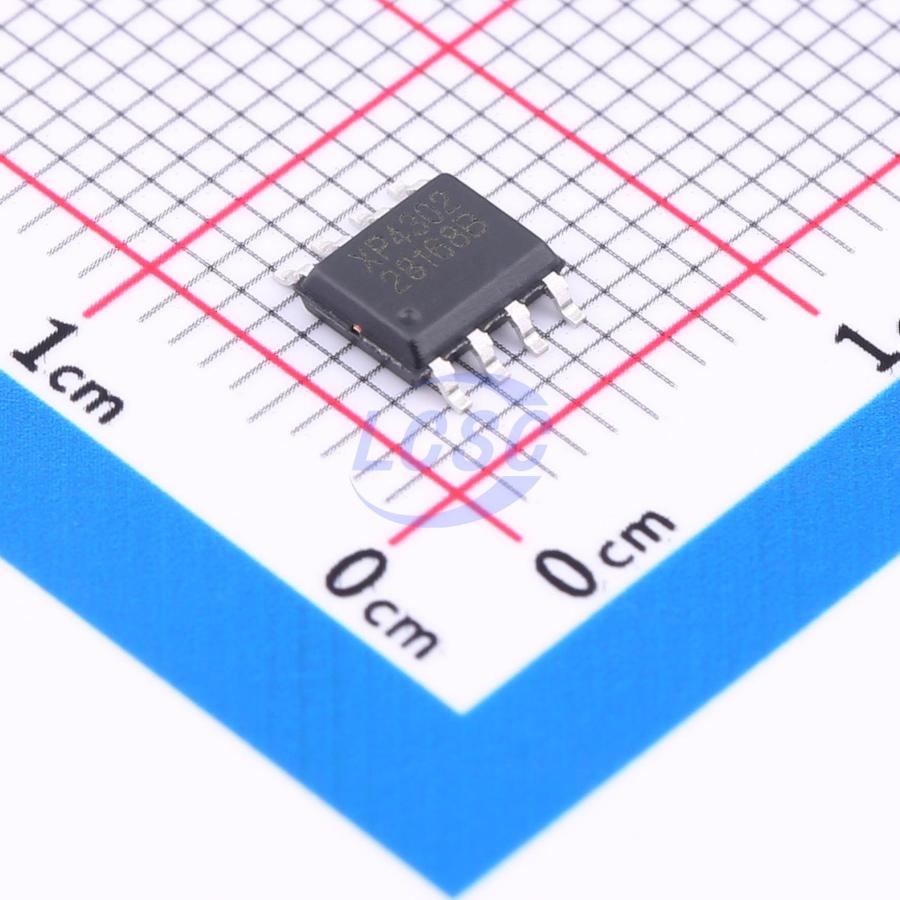

XP4302
Battery Charging IC Lithium Battery ESOP-8
5V input single-cell lithium battery synchronous step-down 2A charging management chip
- Manufacturer
- FM
- Manufacturer part #
- XP4302
- Store part #
- C19818855
- Package / case
- ESOP-8
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,845 in stock
#C19818855
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.82 | ₹79.10 |
| 50+ | ₹13.90 | ₹695.00 |
| 150+ | ₹13.09 | ₹1,963.50 |
| 500+ | ₹12.07 | ₹6,035.00 |
| 2,500+ | ₹11.62 | ₹29,050.00 |
| 4,000+ | ₹11.34 | ₹45,360.00 |
5 × ₹15.82
₹79.10
excl. GST
₹93.34 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
XP4302
₹79.10 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 0uA
- Type of Battery
- Lithium Battery
- Operating Voltage
- 5V
- Features
- Trickle charging;Constant current charging;Constant voltage charging;Automatic recharge;Charge termination;Overvoltage protection;Reverse current blocking;Under-voltage lockout;Soft-start
- The Chip Type
- Charging IC
- Charge Current - Max
- 2A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.097 g
Overview
The XP4302 is a highly integrated, high-reliability 2A charge management IC for single-cell lithium batteries with 5V input. It controls the charging process using trickle, constant current, and constant voltage modes, automatically terminating charging when the battery is fully charged and indicating status via an LED. When the battery voltage drops to the recharge threshold, the IC restarts charging. The IC features a built-in adaptive charging loop compatible with various power adapters of different models and current capabilities. When the input voltage drops to the adaptive charging voltage threshold, the charging current is reduced to prevent further voltage drop, thereby protecting the adapter from overload damage.
Applications
- Single-cell lithium battery charging
Key features
- 5V/2A input synchronous buck charging, efficiency over 90% in both CC and CV phases
- Supports trickle, CC, and CV charging modes
- Battery charge termination voltage: 4.2V
- Integrated dual MOSFETs, external 10μH inductor
- 750KHz fixed switching frequency
- Built-in anti-backflow protection, no external diode required
- LED charge status indication, dual-color LED support
- Multiple protections for high reliability: input OVP/UVP, output OVP/OCP, and OTP
- Sleep mode, adaptive charging, and auto-recharge support
- NTC battery temperature sensing support
- 12-hour timeout protection during CC charging
- ESOP8 package
