GREENMICRODatasheet (PDF)

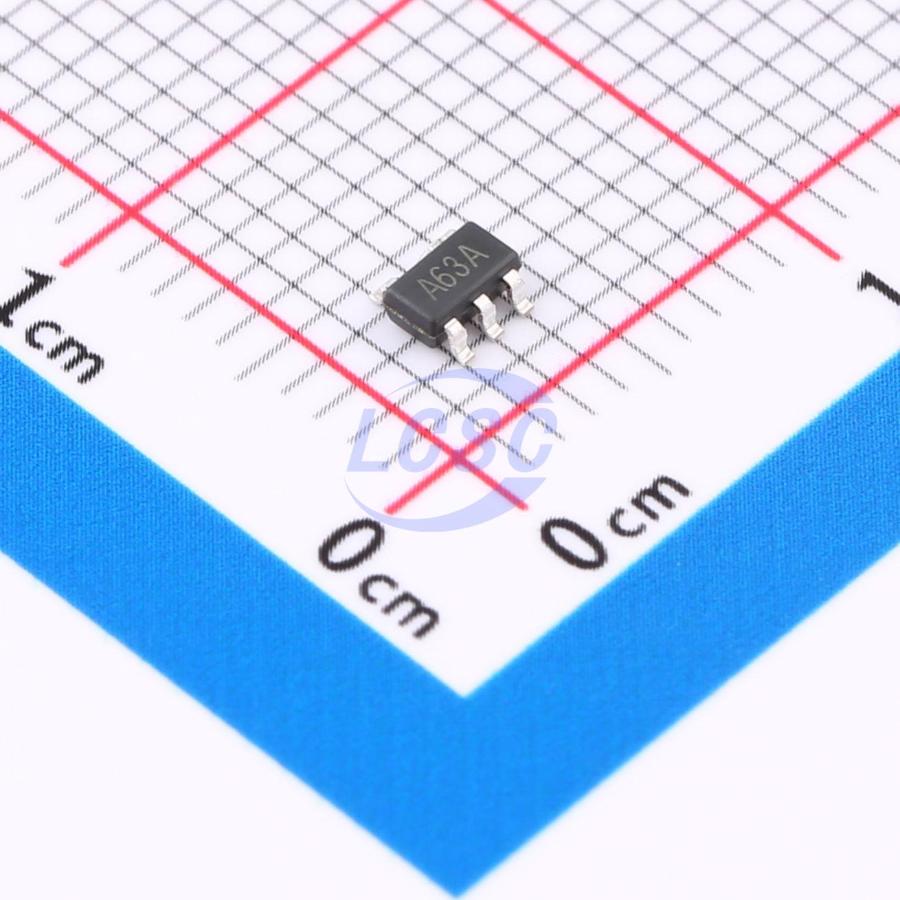

GM321DR
40mA 1 2mV 400V/ms 90dB 45nA 1MHz 100uA SOT-23-5 Instrumentation, Op Amps, Buffer Amps
SOT-23-5RoHSActive
- Manufacturer
- GREENMICRO
- Manufacturer part #
- GM321DR
- Store part #
- C49329010
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,420 in stock
#C49329010
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.42 | ₹88.40 |
| 200+ | ₹3.47 | ₹694.00 |
| 600+ | ₹2.94 | ₹1,764.00 |
| 3,000+ | ₹2.62 | ₹7,860.00 |
| 9,000+ | ₹2.34 | ₹21,060.00 |
| 21,000+ | ₹2.20 | ₹46,200.00 |
20 × ₹4.42
₹88.40
excl. GST
₹104.31 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
GM321DR
₹88.40 for 20 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 2mV
- Slew Rate
- 400V/ms
- Input Offset Current(Ios)
- 3nA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Ib - Input Bias Current
- 45nA
- Gain Bandwidth Product
- 1MHz
- Quiescent Current
- 100uA
- Single Supply
- 3V~32V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.111 g
Overview
The 321 is a high-performance, cost-effective, low-power system. It features a high unity-gain bandwidth and a specified slew rate of 0.4V/μs, with a quiescent current of only 430μA/amplifier (5V). The input common-mode range includes ground, enabling the device to operate in both single-supply and dual-supply applications. It also drives large capacitive loads with ease. The 321 is available in a SOT-23 package. Overall, the 321 is a low-power, wide supply voltage range, high-performance op amp designed for a wide variety of applications at an economical price, without sacrificing valuable board space.
Applications
- Charger
- Power adapter
- Sensor interface
- Medical instrument
- Piezoelectric sensor amplifier
- Audio output
- Mobile communication portable system
Key features
- Gain-bandwidth product: 1MHz
- Low supply current: 430μA
- Low input bias current: 45nA
- Wide supply voltage range: +3V ~ 32V
- Unity-gain stable
- Stable driving of high capacitive loads
