GainsilDatasheet (PDF)

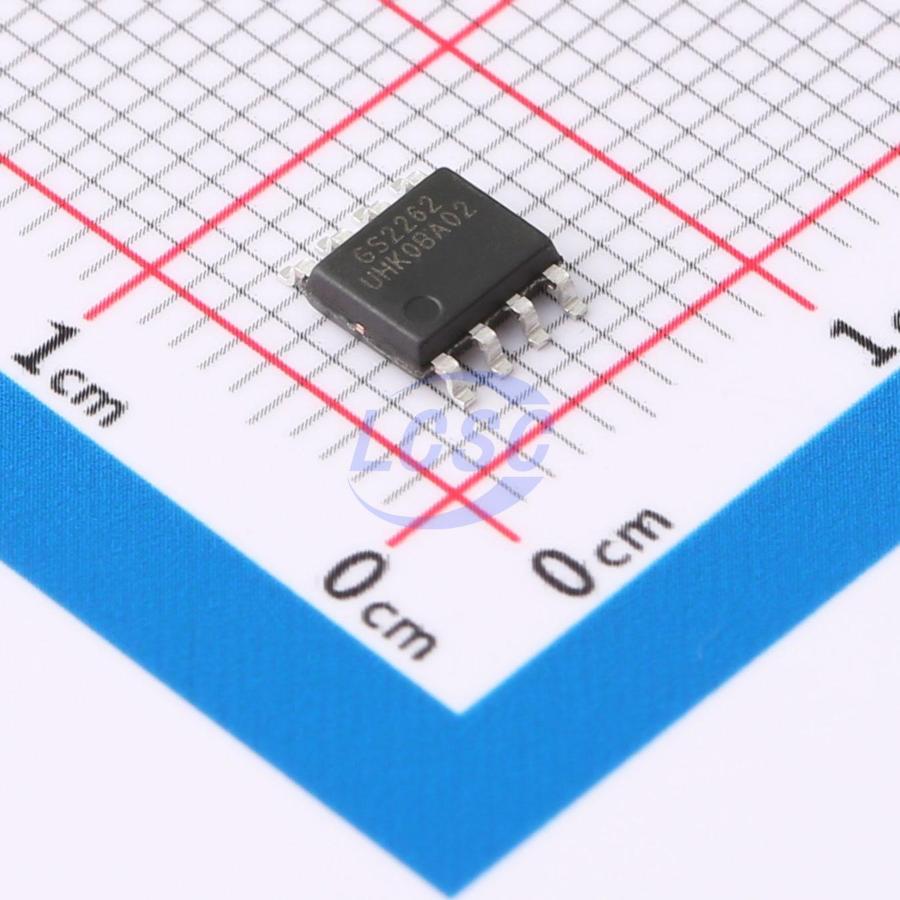

GS2262-SR
39mA 2 100uV 23V/us 120dB 100pA 2.7mA 11MHz Rail-to-rail output SOP-8 Instrumentation, Op Amps, Buffer Amps
SOP-8RoHSActive
Op Amps
- Manufacturer
- Gainsil
- Manufacturer part #
- GS2262-SR
- Store part #
- C6283804
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,085 in stock
#C6283804
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹73.62 | ₹73.62 |
| 10+ | ₹58.64 | ₹586.40 |
| 30+ | ₹52.13 | ₹1,563.90 |
| 100+ | ₹44.08 | ₹4,408.00 |
| 500+ | ₹40.62 | ₹20,310.00 |
| 1,000+ | ₹38.45 | ₹38,450.00 |
1 × ₹73.62
₹73.62
excl. GST
₹86.87 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
GS2262-SR
₹73.62 for 1 + GST
Specifications
- Output Current
- 39mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 100uV
- Slew Rate
- 23V/us
- Input Offset Current(Ios)
- 25pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 120dB
- Ib - Input Bias Current
- 100pA
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Quiescent Current
- 2.7mA
- Gain Bandwidth Product
- 11MHz
- Input Voltage Noise Density
- 34nV/√Hz@1kHz
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 3.3V~36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.185 g
Overview
The GS226X series amplifiers are newest high supply voltage amplifiers with low offset, low power and stable high frequency response. Good AC performance with 11MHz bandwidth, 23V/μs slew rate and low distortion while drawing only 2.7mA of quiescent current per amplifier. The input common - mode voltage range extends to VS, and the outputs swing rail - to - rail. The GS226X family can be used as plug - in replacements for many commercially available Op - Amps to reduce power and improve input/output range and performance.
Applications
- Instrumentation
- Motor Control
- Active Filters
- ASIC Input or Output Amplifier
- Industrial Control
- Sensor Interface
Key features
- Supply Voltage: 3.3V to 36V
- Offset Voltage: ±100μV
- Maximum Differential Input Voltage Range to Supply Rail, can Work as Comparator
- Input Rail to -VS, Rail to Rail Output
- Bandwidth: 11MHz
- Slew Rate: 23V/μs
- Excellent EMI Suppress Performance: 45dB at Quiescent Current: 2.7mA per Amplifier (Typ)
- -40°C to 125°C Operation Temperature Range
- Small Package: GS2261 Available in SOT23 - 5 Package, GS2262 Available in SOP - 8 and MSOP - 8 Packages, GS2264 Available in SOP - 14 and TSSOP - 14 Packages
