GainsilDatasheet (PDF)

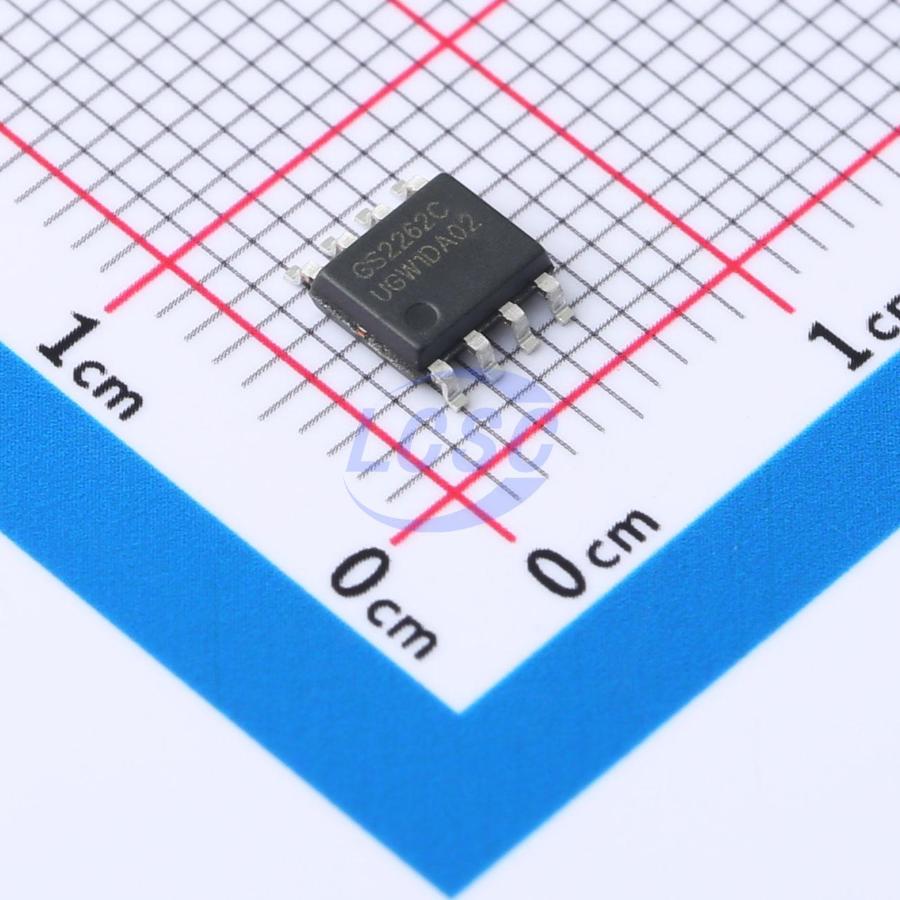

GS2262C-SR
39mA 2 1mV 23V/us 120dB 100pA 2.7mA 11MHz Rail-to-rail output SOP-8 Instrumentation, Op Amps, Buffer Amps
SOP-8RoHSActive
36V, 11MHz, 23V/μs Op Amps
- Manufacturer
- Gainsil
- Manufacturer part #
- GS2262C-SR
- Store part #
- C6283807
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,790 in stock
#C6283807
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.09 | ₹120.45 |
| 50+ | ₹18.81 | ₹940.50 |
| 150+ | ₹16.55 | ₹2,482.50 |
| 500+ | ₹13.73 | ₹6,865.00 |
| 2,500+ | ₹12.48 | ₹31,200.00 |
| 4,000+ | ₹11.72 | ₹46,880.00 |
5 × ₹24.09
₹120.45
excl. GST
₹142.13 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
GS2262C-SR
₹120.45 for 5 + GST
Specifications
- Output Current
- 39mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 1mV
- Slew Rate
- 23V/us
- Input Offset Current(Ios)
- 25pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 120dB
- Ib - Input Bias Current
- 100pA
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Quiescent Current
- 2.7mA
- Gain Bandwidth Product
- 11MHz
- Input Voltage Noise Density
- 34nV/√Hz@10kHz
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 3.3V~36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.187 g
Overview
The GS226XC series amplifiers are newest high supply voltage amplifiers with low offset, low power and stable high frequency response. Good AC performance with 11MHz bandwidth, 23V/μs slew rate and low distortion while drawing only 2.7mA of quiescent current per amplifier. The input common-mode voltage range extends to - Vs, and the outputs swing rail-to-rail. The GS226XC family can be used as plug-in replacements for many commercially available Op-Amps to reduce power and improve input/output range and performance. The GS2261C single is available in SOT23-5 package. The GS2262C Dual is available in Green SOP-8 and MSOP-8 packages. The GS2264C Quad is available in Green SOP-14 and TSSOP-14 packages.
Applications
- Instrumentation
- Motor Control
- Active Filters
- ASIC Input or Output Amplifier
- Industrial Control
- Sensor Interface
Key features
- Supply Voltage: 3.3V to 36V
- Offset Voltage: ± 1mV Maximum
- Differential Input Voltage Range to Supply Rail, can Work as Comparator
- Input Rail to - VS, Rail to Rail Output
- Bandwidth: 11MHz
- Slew Rate: 23V/μs
- Excellent EMI Suppress Performance: 45dB at Quiescent Current: 2.7mA per Amplifier (Typ)
- -40°C to 125°C Operation Temperature Range
- Small Package: GS2261C Available in SOT23 - 5 Package, GS2262C Available in SOP - 8 and MSOP - 8 Packages, GS2264C Available in SOP - 14 and TSSOP - 14 Packages
