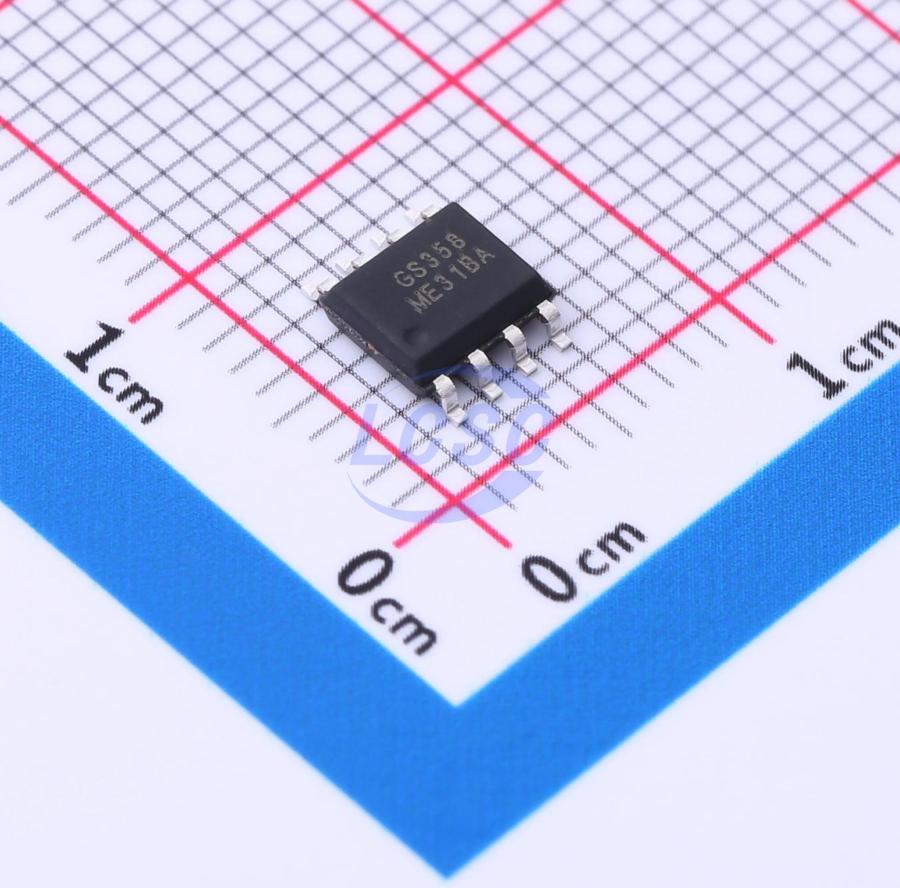

GS358A-SR

84mA 2 400uV 600V/ms 1pA 70dB 1MHz 40uA Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps

SOP-8RoHSActive

1MHz CMoS Rail-to-Rail IO Opamp with RF Filter

Manufacturer: Gainsil
Manufacturer part #: GS358A-SR
Store part #: C5179651
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,265 in stock

#C5179651

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹30.60	₹153.00
50+	₹24.29	₹1,214.50
150+	₹21.58	₹3,237.00
500+	₹18.20	₹9,100.00
2,500+	₹15.96	₹39,900.00
4,000+	₹15.04	₹60,160.00

Quantity (min 5, multiples of 5)

5 × ₹30.60

₹153.00

excl. GST

₹180.54 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

GS358A-SR

₹153.00 for 5 + GST

Specifications

Output Current: 84mA
Number of Channels: 2
Vos - Input Offset Voltage: 400uV
Slew Rate: 600V/ms
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 70dB
Input Offset Voltage Drift(Vos TC): 2.7uV/℃
Gain Bandwidth Product: 1MHz
Quiescent Current: 40uA
Features: EMI filtering/RF suppression;Built-in compensation
Input Voltage Noise Density: 27nV/√Hz@1kHz
Dual Supply: -1.05V~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.1V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.17 g

Overview

The GS321A/358A family have a high gain-bandwidth product of 1MHz, a slew rate of 0.6V/μs, and a quiescent current of 40μA/amplifier at 5V. The GS321A/358A family is designed to provide optimal performance in low voltage and low noise systems. They provide rail-to-rail output swing into heavy loads. The input common mode voltage range includes ground, and the maximum input offset voltage is 0.5mV for GS321A/358A family. They are specified over the extended industrial temperature range (-40°C to +125°C). The operating range is from 2.1V to 5.5V. The GS321A single is available in Green SC70-5 and SOT23-5 packages. The GS358A Dual is available in Green SOP-8 and MSOP-8 packages.

Applications

ASIC Input or Output Amplifier
Sensor Interface
Medical Communication Smoke Detectors
Audio Output
Piezoelectric Transducer Amplifier
Medical Instrumentation
Portable Systems

Key features

Single-Supply Operation from +2.1V ~ +5.5V
Rail-to-Rail Input / Output
Gain-Bandwidth Product: 1MHz (Typ)
Low Input Bias Current: 1pA (Typ)
Low Offset Voltage: 0.4mV (Max)
Quiescent Current: 40μA per Amplifier (Typ)
Operating Temperature: -40°C ~ +125°C
Embedded RF Anti-EMI Filter
Small Package:
GS321A Available in SOT23-5 and SC70-5 Packages
GS358A Available in SOP-8 and MSOP-8 Packages
