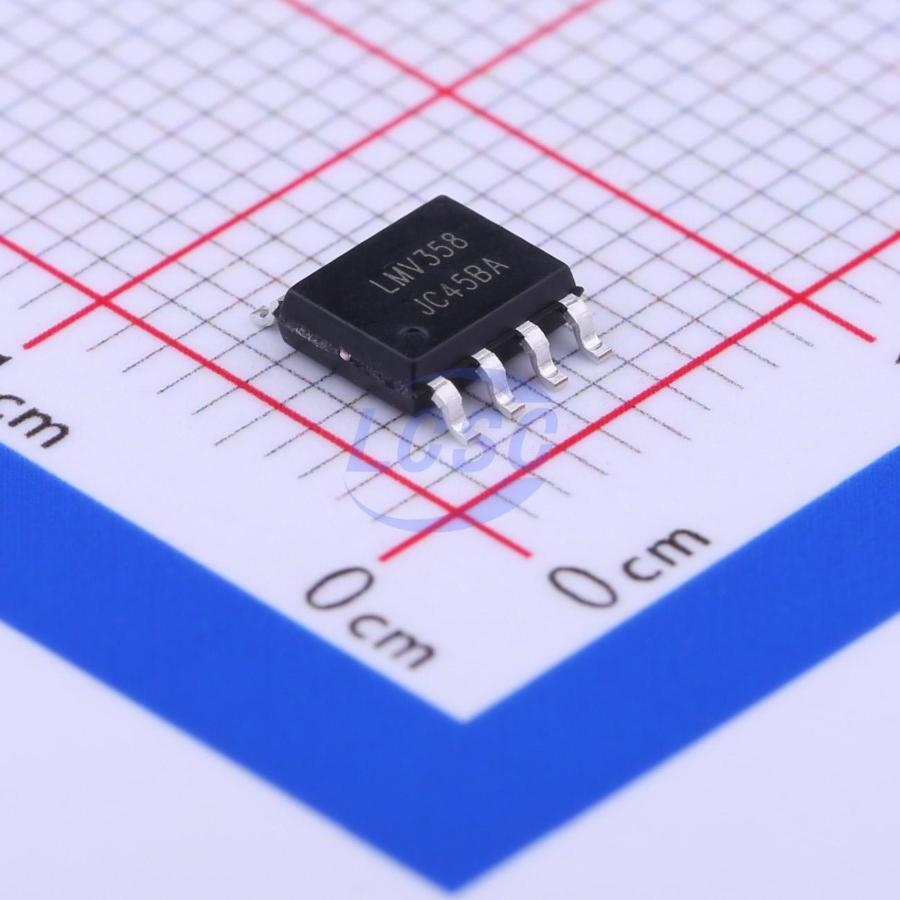

LMV358-SR

84mA 2 3.5mV 600V/ms 1pA 70dB 1MHz 40uA Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps

SOP-8RoHSActive

1MHz CMOS Rail-to-Rail IO Opamp with RF Filter

Manufacturer: Gainsil
Manufacturer part #: LMV358-SR
Store part #: C362274
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

29,720 in stock

#C362274

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹19.09	₹95.45
50+	₹15.61	₹780.50
150+	₹13.88	₹2,082.00
500+	₹12.57	₹6,285.00
2,500+	₹10.29	₹25,725.00
4,000+	₹9.78	₹39,120.00

Quantity (min 5, multiples of 5)

5 × ₹19.09

₹95.45

excl. GST

₹112.63 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

LMV358-SR

₹95.45 for 5 + GST

Specifications

Output Current: 84mA
Number of Channels: 2
Vos - Input Offset Voltage: 3.5mV
Slew Rate: 600V/ms
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 70dB
Input Offset Voltage Drift(Vos TC): 2.7uV/℃
Gain Bandwidth Product: 1MHz
Quiescent Current: 40uA
Features: EMI filtering/RF suppression;Built-in compensation
Input Voltage Noise Density: 27nV/√Hz@1kHz
Dual Supply: -1.05V~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.1V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.168 g

Overview

The LMV321/358/324 family have a high gain-bandwidth product of 1MHz, a slew rate of 0.6V/μs, and a quiescent current of 40μA/amplifier at 5V. The LMV321/358/324 family is designed to provide optimal performance in low voltage and low noise systems. They provide rail-to-rail output swing into heavy loads. The input common mode voltage range includes ground, and the maximum input offset voltage is 3.5mV for LMV321/358/324 family. They are specified over the extended industrial temperature range (-40°C to +125°C). The operating range is from 2.1V to 5.5V. The LMV321 single is available in Green SOT-23-5 package. The LMV358 Dual is available in Green SOP-8 package. The LMV324 Quad is available in Green SOP-14 package.

Applications

ASIC Input or Output Amplifier
Sensor Interface
Medical Communication
Smoke Detectors

Key features

Single-Supply Operation from +2.1V ~ +5.5V
Rail-to-Rail Input / Output
Gain-Bandwidth Product: 1MHz (Typ)
Low Input Bias Current: 1pA (Typ)
Low Offset Voltage: 3.5mV (Max)
Quiescent Current: 40μA per Amplifier (Typ)
Operating Temperature: -40°C ~ +125°C
Embedded RF Anti-EMI Filter
Small Package:
LMV321 Available in SOT23-5 Package
LMV358 Available in SOP-8 Package
LMV324 Available in SOP-14 Package
