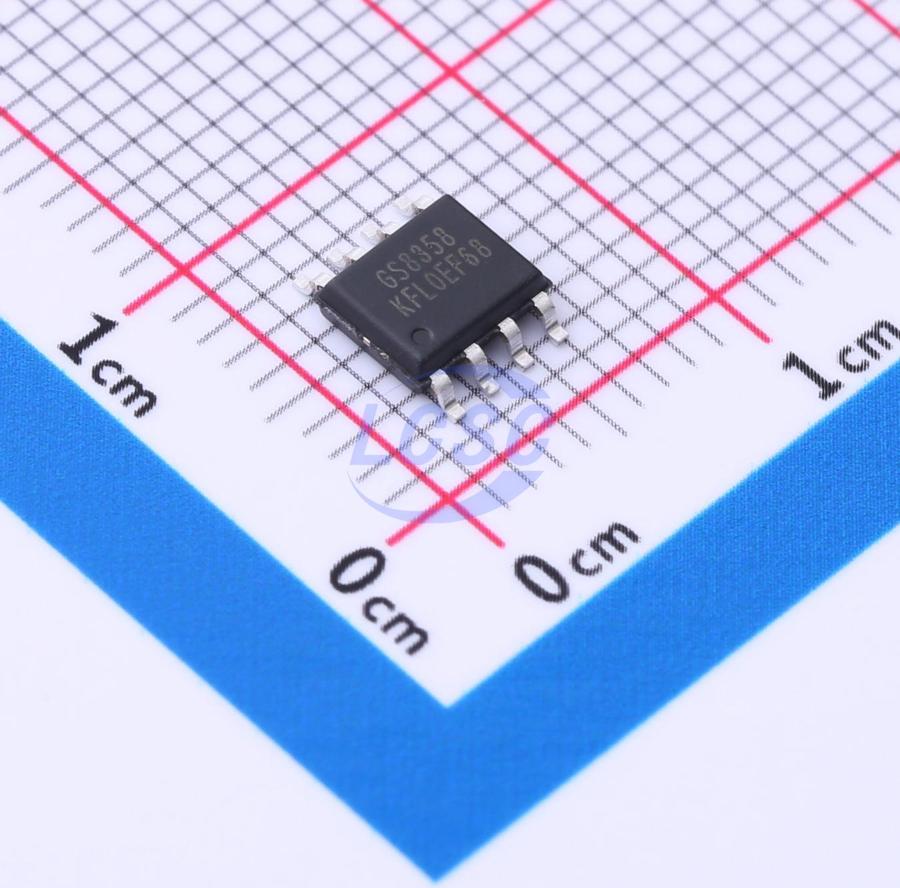

GS8358-SR

84mA 2 3.5mV 600V/ms 1pA 70dB 1MHz 40uA Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps

SOP-8RoHSActive

1MHZ CMOS Rail-to-Rail IO Opamp with RF Filter

Manufacturer: Gainsil
Manufacturer part #: GS8358-SR
Store part #: C5179652
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,505 in stock

#C5179652

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹21.96	₹109.80
50+	₹19.33	₹966.50
150+	₹18.20	₹2,730.00
500+	₹16.80	₹8,400.00
2,500+	₹15.43	₹38,575.00
4,000+	₹15.04	₹60,160.00

Quantity (min 5, multiples of 5)

5 × ₹21.96

₹109.80

excl. GST

₹129.56 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

GS8358-SR

₹109.80 for 5 + GST

Specifications

Output Current: 84mA
Number of Channels: 2
Vos - Input Offset Voltage: 3.5mV
Slew Rate: 600V/ms
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 70dB
Input Offset Voltage Drift(Vos TC): 2.7uV/℃
Gain Bandwidth Product: 1MHz
Quiescent Current: 40uA
Features: EMI filtering/RF suppression
Input Voltage Noise Density: 27nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.1V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.18 g

Overview

The GS8358 is a single supply, low power CMOS dual operational amplifier; these amplifiers offer bandwidth of 1MHz, rail-to-rail inputs and outputs, and single-supply operation from 2.1V to 5.5V. Typical low quiescent supply current of 80µA in dual operational amplifiers within one chip and very low input bias current of 1pA make the devices an ideal choice for low offset, low power consumption and high impedance applications such as smoke detectors, photodiode amplifiers, and other sensors. The GS8358 is available in SOP8 and MSOP8 packages. The extended temperature range of -40°C to +125°C over all supply voltages offers additional design flexibility.

Applications

ASIC Input or Output Amplifier
Sensor Interface
Medical Communication Smoke Detectors
Audio Output
Piezoelectric Transducer Amplifier
Medical Instrumentation Portable Systems

Key features

Single-Supply Operation from +2.1V ~ +5.5V
Rail-to-Rail Input / Output
Gain-Bandwidth Product: 1MHz (Typ)
Low Input Bias Current: 1pA (Typ)
Low Offset Voltage: Channel A： ±3.5mV (Max); Channel B：+5mV(Typ)
Quiescent Current: 40µA per Amplifier (Typ)
Operating Temperature: -40°C ~ +125°C
Embedded RF Anti-EMI Filter
Small Package: GS8358 Available in SOP-8, MSOP-8 Packages
