GainsilDatasheet (PDF)

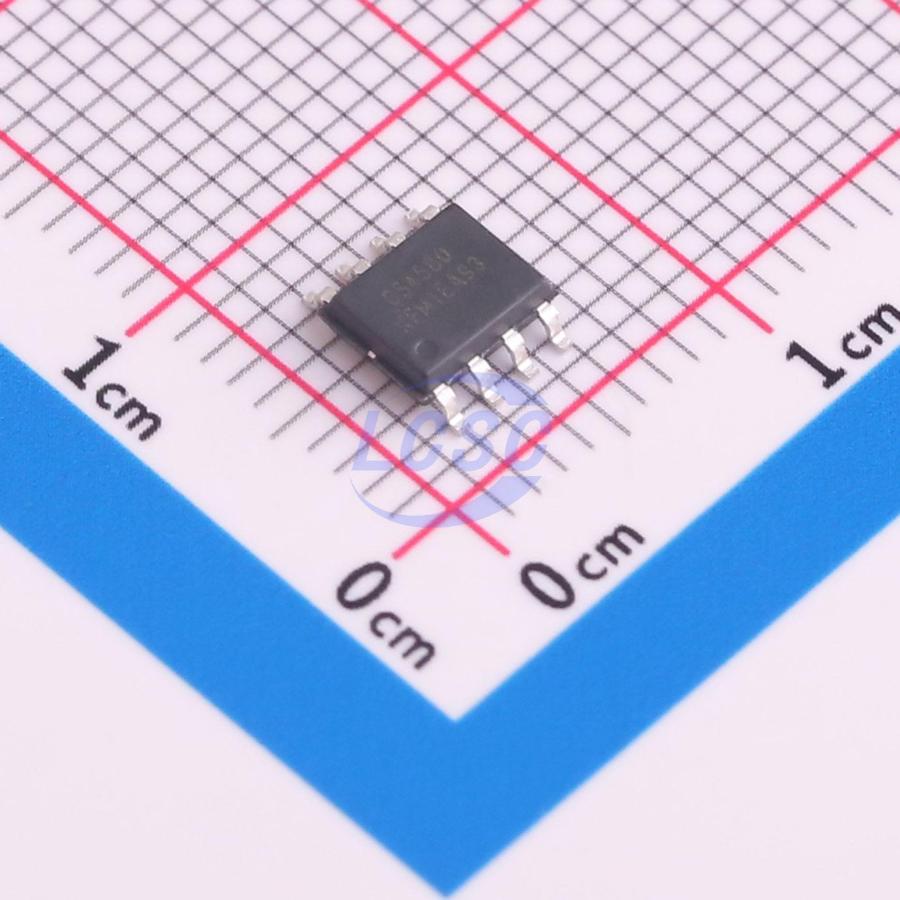

GS4580-SR
45mA 2 500uV 7V/us 110dB 500nA 4mA 15MHz SOP-8 Instrumentation, Op Amps, Buffer Amps
SOP-8RoHSActive
Low-noise operational amplifier
- Manufacturer
- Gainsil
- Manufacturer part #
- GS4580-SR
- Store part #
- C2978619
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,835 in stock
#C2978619
Stock & price checked 18 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.49 | ₹77.45 |
| 50+ | ₹12.26 | ₹613.00 |
| 150+ | ₹10.64 | ₹1,596.00 |
| 500+ | ₹9.43 | ₹4,715.00 |
| 2,500+ | ₹7.81 | ₹19,525.00 |
| 4,000+ | ₹7.32 | ₹29,280.00 |
5 × ₹15.49
₹77.45
excl. GST
₹91.39 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
GS4580-SR
₹77.45 for 5 + GST
Specifications
- Output Current
- 45mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 500uV
- Slew Rate
- 7V/us
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 110dB
- Ib - Input Bias Current
- 500nA
- Quiescent Current
- 4mA
- Gain Bandwidth Product
- 15MHz
- Features
- Built-in compensation
- Dual Supply
- -18V~18V
- Single Supply
- 2V~18V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.19 g
Overview
The GS4580 is a monolithic dual low noise operational amplifier. It is specifically designed for audio systems to improve tone control; it can also be used in preamplifier, industrial measurement tools and applications where gain and phase matched channels are mandatory. The IC features internal frequency compensation, low noise, low distortion, high gain and high bandwidth. The GS4580 can operate under dual power supply voltage up to ± 18V or single power supply up to 36V. The GS4580 is available in DIP - 8, SOIC - 8 and TSSOP - 8 packages.
Applications
- Audio AC - 3 Decoder System
- Audio Amplifier
Key features
- Large Signal Voltage Gain: 110dB Typical
- Low Input Noise Voltage: 0.7 μVrms (RIAA) Typical
- Wide Gain Bandwidth Product: 15MHz at 10KHz Typical
- Low Distortion: 0.0005% Typical
- Slew Rate: 7V/μs Typical
