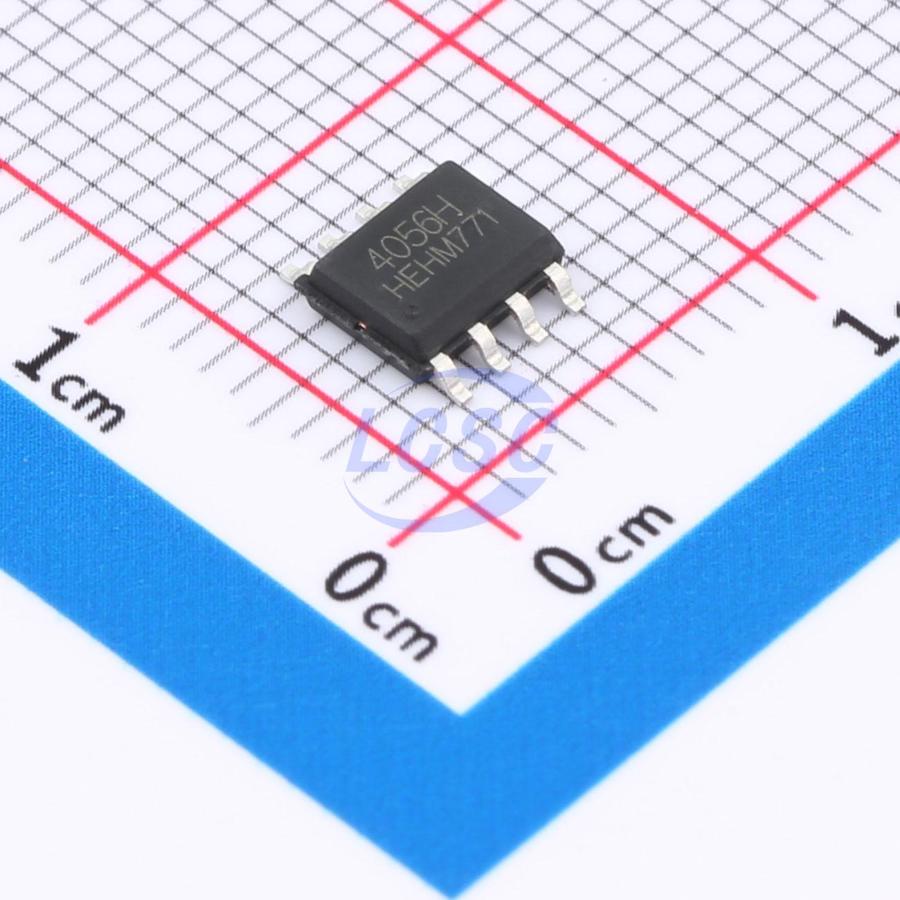

HE4056H
Lithium Battery 1A ESOP-8 Battery Management
- Manufacturer
- HEERMICR
- Manufacturer part #
- HE4056H
- Store part #
- C49374771
- Package / case
- ESOP-8
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,380 in stock
#C49374771
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.05 | ₹70.50 |
| 100+ | ₹5.58 | ₹558.00 |
| 300+ | ₹4.86 | ₹1,458.00 |
| 1,000+ | ₹4.31 | ₹4,310.00 |
| 4,000+ | ₹3.88 | ₹15,520.00 |
| 8,000+ | ₹3.65 | ₹29,200.00 |
10 × ₹7.05
₹70.50
excl. GST
₹83.19 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
HE4056H
₹70.50 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+105℃
- Quiescent Current
- 1uA
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.5V~5.5V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Overvoltage protection;Soft-start;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 1A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.167 g
Overview
The HE4056H series is a linear lithium battery charger IC featuring a 30V maximum input voltage rating and 1.0A maximum charge current, employing trickle/constant current/constant voltage (TC/CC/CV) charging. The charge voltage is preset at 4.2V or 4.35V, and the charge current is programmable via an external resistor. When the battery voltage reaches the preset value and the charge current drops to C/5 of the programmed value, the IC terminates charging and enters standby mode. Upon removal of the input power, the IC automatically transitions to a low-power standby state. Suitable for USB and adapter power sources, its internal PMOSFET architecture and anti-backflow circuit eliminate the need for external sense resistors and isolation diodes.
Applications
- Mobile phones
- MP3
- PDA
- Bluetooth applications
- USB chargers
Key features
- Maximum input voltage: 30V
- Integrated fixed 6.8V overvoltage lockout protection
- Up to 1000mA programmable charge current
- ±1% accuracy 4.20V/4.35V preset charge voltage
- No external MOSFET, sense resistor, or isolation diode required
- Constant current/constant voltage operation with thermal regulation for maximizing charge rate without risk of overheating
- Charge status, charge termination, battery absent, and fault status indication
- Quiescent current in standby mode: 1.0µA (typical)
- Hot-swap support up to 28V (RC snubber on input)
- BAT pin battery reverse polarity protection
- 2.9V trickle charge threshold; C/5 charge termination
- Soft-start limits inrush current
- Operating temperature range: -40°C to 105°C
