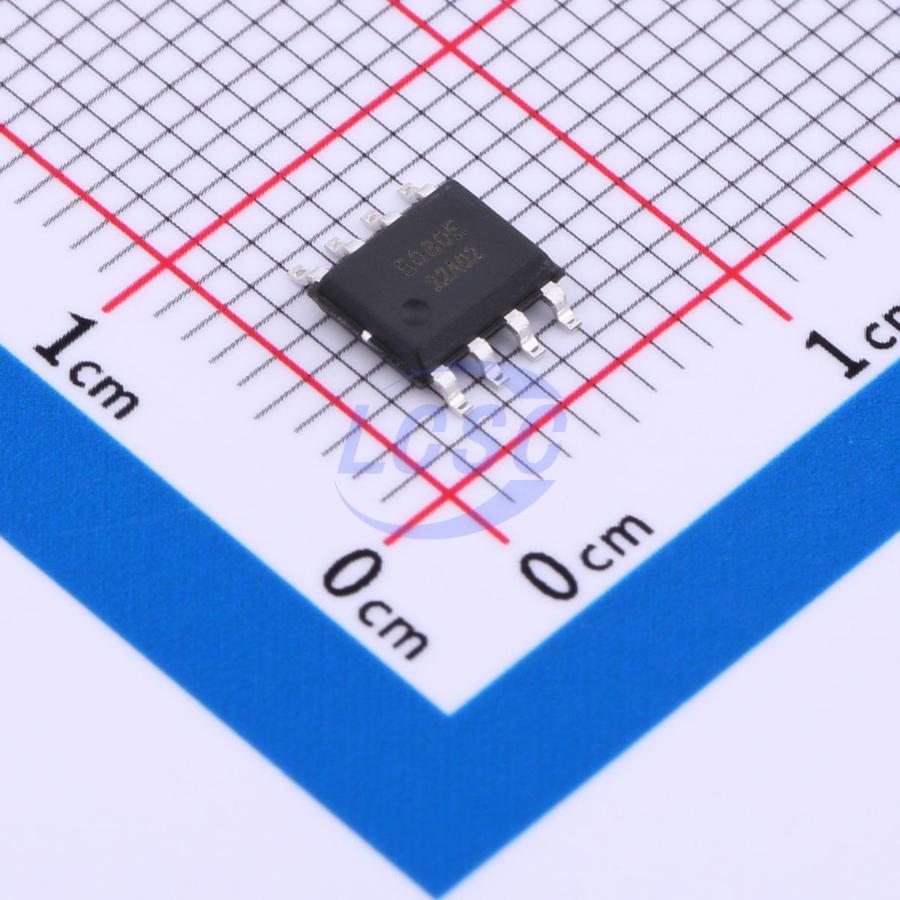

HE5080E
Battery Charging IC Lithium-ion/Polymer ESOP-8
Dual-cell lithium battery series step-up charging management
- Manufacturer
- HEERMICR
- Manufacturer part #
- HE5080E
- Store part #
- C5123431
- Package / case
- ESOP-8
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,883 in stock
#C5123431
Stock & price checked 38 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹61.24 | ₹61.24 |
| 10+ | ₹55.38 | ₹553.80 |
| 30+ | ₹52.34 | ₹1,570.20 |
| 100+ | ₹49.52 | ₹4,952.00 |
| 500+ | ₹37.36 | ₹18,680.00 |
| 1,000+ | ₹36.49 | ₹36,490.00 |
1 × ₹61.24
₹61.24
excl. GST
₹72.26 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
HE5080E
₹61.24 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 1mA
- 0V Battery Charge
- Support
- Type of Battery
- Lithium Battery
- Operating Voltage
- 3.6V~7V
- Features
- Trickle charging;Constant current charging;Constant voltage charging;Automatic recharge;Charge termination;Programmable charging current;Overcurrent Protection;Short-Circuit Protection;Overvoltage protection;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 1A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.19 g
Overview
- 10W, 2A input asynchronous boost charging - Boost charging efficiency up to 90% - Automatic input current regulation, compatible with all adapters - LED charge status indication support - Integrated power MOS, simplified peripheral circuitry - 600KHz switching frequency, compatible with 2.2uH inductors - Built-in output overvoltage and short-circuit protection - Built-in input undervoltage and overvoltage protection - Built-in IC over-temperature protection - ESD 4KV electrostatic protection
Applications
- Bluetooth speaker
- E-cigarette
- Walkie-talkie
- Adult products
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HE5090EA#C42377823HEERMICR · ESOP-8 | HEERMICR | ESOP-8 | 3,855 | ₹45.80 · 3,855 in stock | View |
 | HE4056E#C711956HEERMICR · ESOP-8 | HEERMICR | ESOP-8 | 650 | ₹16.14 · 650 in stock | View |
 | HE3342EAP8#C5123429HEERMICR · ESOP-8 | HEERMICR | ESOP-8 | 1,310 | ₹38.47 · 1,310 in stock | View |
 | HE4056H#C49374771HEERMICR · ESOP-8 | HEERMICR | ESOP-8 | 8,250 | ₹7.05 · 8,250 in stock | View |
