HGSEMIDatasheet (PDF)

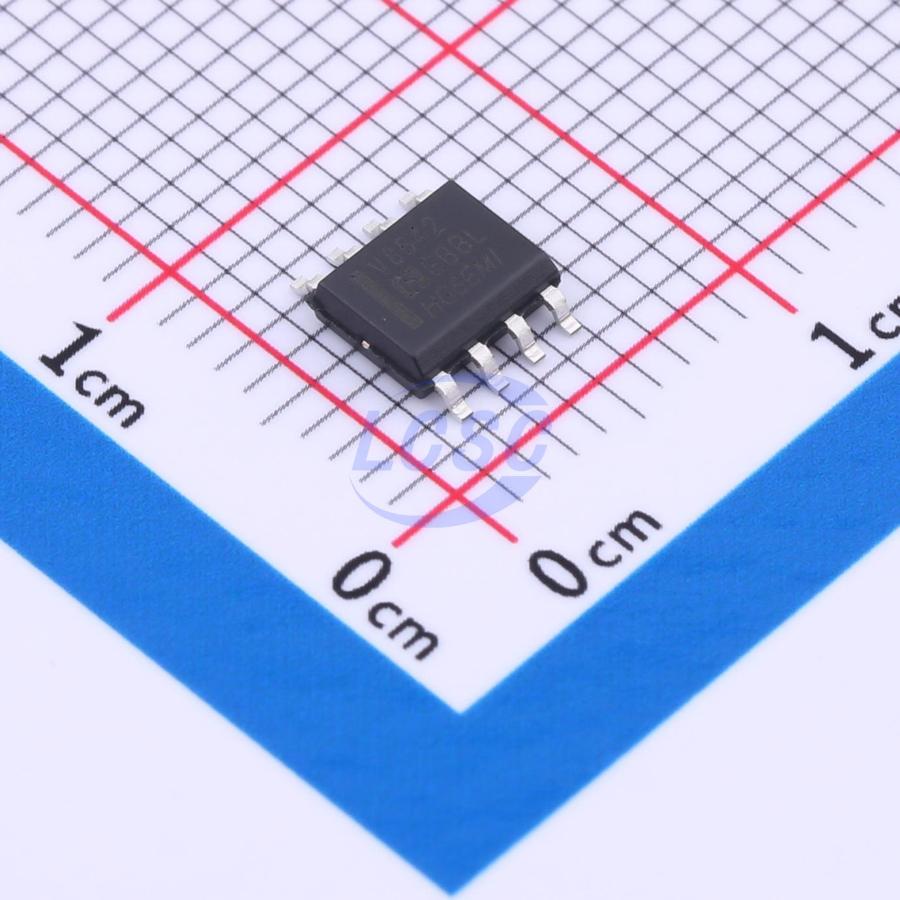

HGV8542M/TR
Standard (General Purpose) Amplifier 2 Circuit Rail-to-Rail Input, Rail-to-Rail Output SOP-8
SOP-8RoHSActive
General-purpose CMOS rail-to-rail amplifier
- Manufacturer
- HGSEMI
- Manufacturer part #
- HGV8542M/TR
- Store part #
- C5116325
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,480 in stock
#C5116325
Stock & price checked 38 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.33 | ₹161.65 |
| 50+ | ₹25.77 | ₹1,288.50 |
| 150+ | ₹22.97 | ₹3,445.50 |
| 500+ | ₹19.46 | ₹9,730.00 |
| 2,500+ | ₹16.10 | ₹40,250.00 |
| 5,000+ | ₹15.16 | ₹75,800.00 |
5 × ₹32.33
₹161.65
excl. GST
₹190.75 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HGV8542M/TR
₹161.65 for 5 + GST
Specifications
- Output Current
- 25mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 6mV
- Slew Rate
- 800V/ms
- Input Offset Current(Ios)
- 30pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 100pA
- Common Mode Rejection Ratio(CMRR)
- 45dB
- Input Offset Voltage Drift(Vos TC)
- 4uV/℃
- Quiescent Current
- 60uA
- Gain Bandwidth Product
- 980kHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 38nV/√Hz@10kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.7V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.17 g
