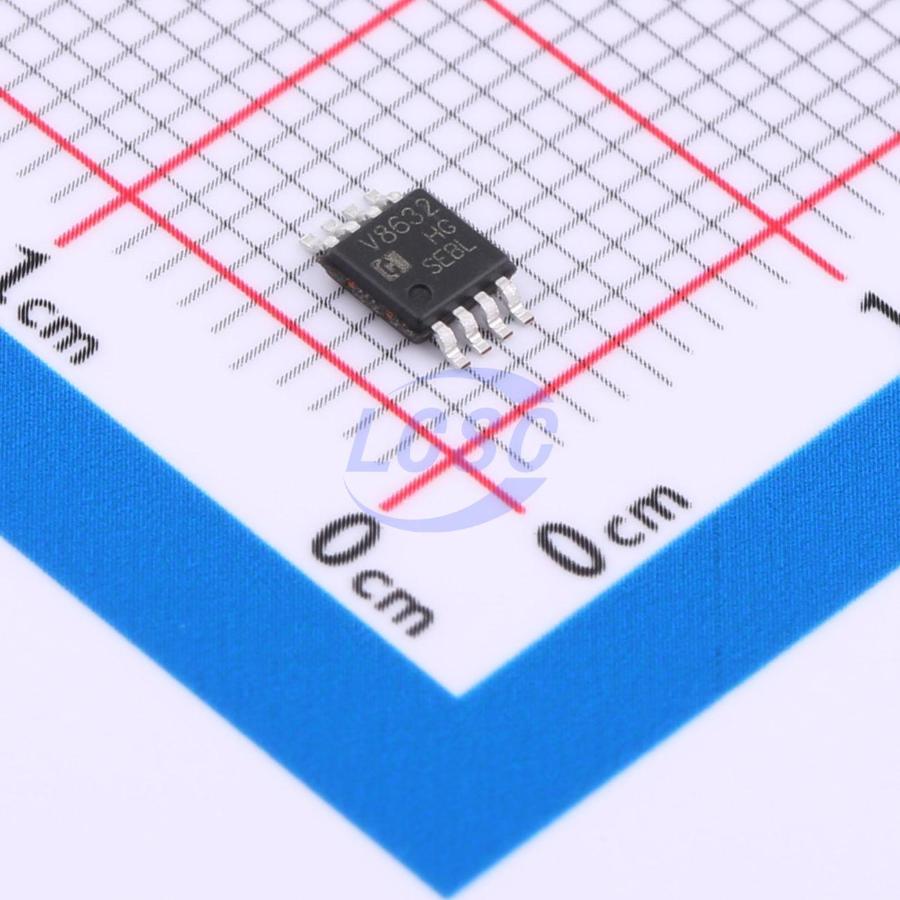

HGV8632MM/TR
35mA 2 3.5mV 3.7V/us 4.6pA 87dB 470uA 6MHz Rail-to-Rail Input, Rail-to-Rail Output MSOP-8L Instrumentation, Op Amps, Buffer Amps
MSOP-8LRoHSActive
Rail-to-Rail I/O CMOS Operational Amplifier
- Manufacturer
- HGSEMI
- Manufacturer part #
- HGV8632MM/TR
- Store part #
- C5116305
- Package / case
- MSOP-8L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,895 in stock
#C5116305
Stock & price checked 36 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.00 | ₹125.00 |
| 50+ | ₹21.84 | ₹1,092.00 |
| 150+ | ₹20.48 | ₹3,072.00 |
| 500+ | ₹18.79 | ₹9,395.00 |
| 3,000+ | ₹18.03 | ₹54,090.00 |
| 6,000+ | ₹17.58 | ₹1,05,480.00 |
5 × ₹25.00
₹125.00
excl. GST
₹147.50 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HGV8632MM/TR
₹125.00 for 5 + GST
Specifications
- Output Current
- 35mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 3.5mV
- Slew Rate
- 3.7V/us
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 4.6pA
- Common Mode Rejection Ratio(CMRR)
- 87dB
- Input Offset Voltage Drift(Vos TC)
- 2.4uV/℃
- Quiescent Current
- 470uA
- Gain Bandwidth Product
- 6MHz
- Features
- Enable/shutdown function
- Input Voltage Noise Density
- 12nV/√Hz@1kHz
- Dual Supply
- -2.75V~-1.25V;1.25V~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.5V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.18 g
