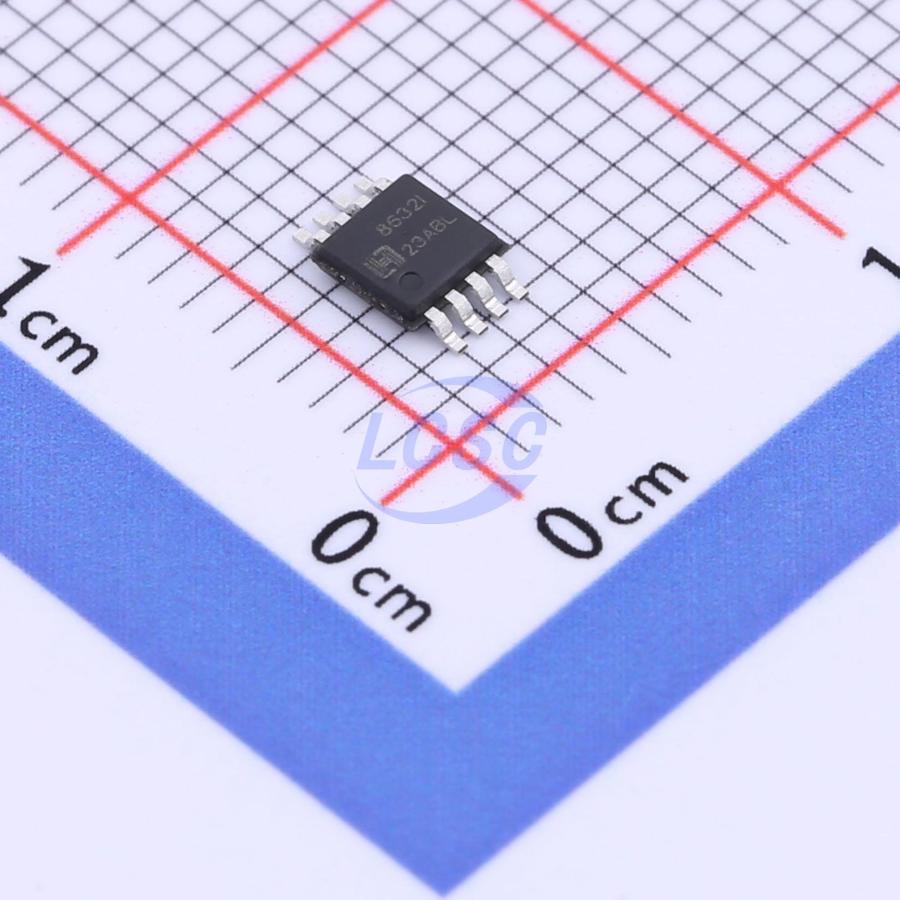

HX8632IDGKRG

The HX8631(single), HX8632(dual), and HX8634 (quad) are low noise, low voltage, and low power power operational amplifiers, that can be designed into a wide range of applications. The HX8631/2/4 have a high gain-bandwidth product of 6MHz, a slew rate of 3.7V/μs, and a quiescent current of 470μA/amplifier at 5V. The HX8631/2/4 are designed to provide optimal performance in low voltage and low noise systems. They provide rail-to-rail output swing into heavy loads. The input common-mode voltage range includes ground, and the maximum input offset voltage are 3.5mV for HX8631/2/4. They are specified over the extended industrial temperature range (-40°C to +85°C). The operating range is from 2.5V to 5.5V. The single version, HX8631, is available in SC70-5, and SOT23-5 packages. The dual version HX8632 is available in SO-8 and MSOP-8 packages. The quad version HX8634 is available in SO-16 and TSSOP-16 packages.

Applications

• Sensors
• Audio
• Active Filters
• A/D Converters
• Communications
• Test Equipment
• Cellular and Cordless Phones
• Laptops and PDAs
• Photodiode Amplification
• Battery-Powered Instrumentation

Key features

• Low Cost
• Rail-to-Rail Input and Output 0.8mV Typical Vos
• High Gain-Bandwidth Product: 6MHz
• High Slew Rate: 3.7V/μs
• Settling Time to 0.1% with 2V Step: 2.1μs
• Overload Recovery Time: 0.9μs
• Low Noise: 12nV/√Hz
• Operates on 2.5V to 5.5V Supplies
• Input Voltage Range ∂=-∂0.1∂V to +5.6V with VS=5.5V
• Low Power 470μA/Amplifier Typical Supply Current
• Small Packaging HX8631 Available in SC70-5, SOT23-5 HX8632 Available in MSOP-8 and SO-8 HX8634 Available in TSSOP-16 and SO-16
