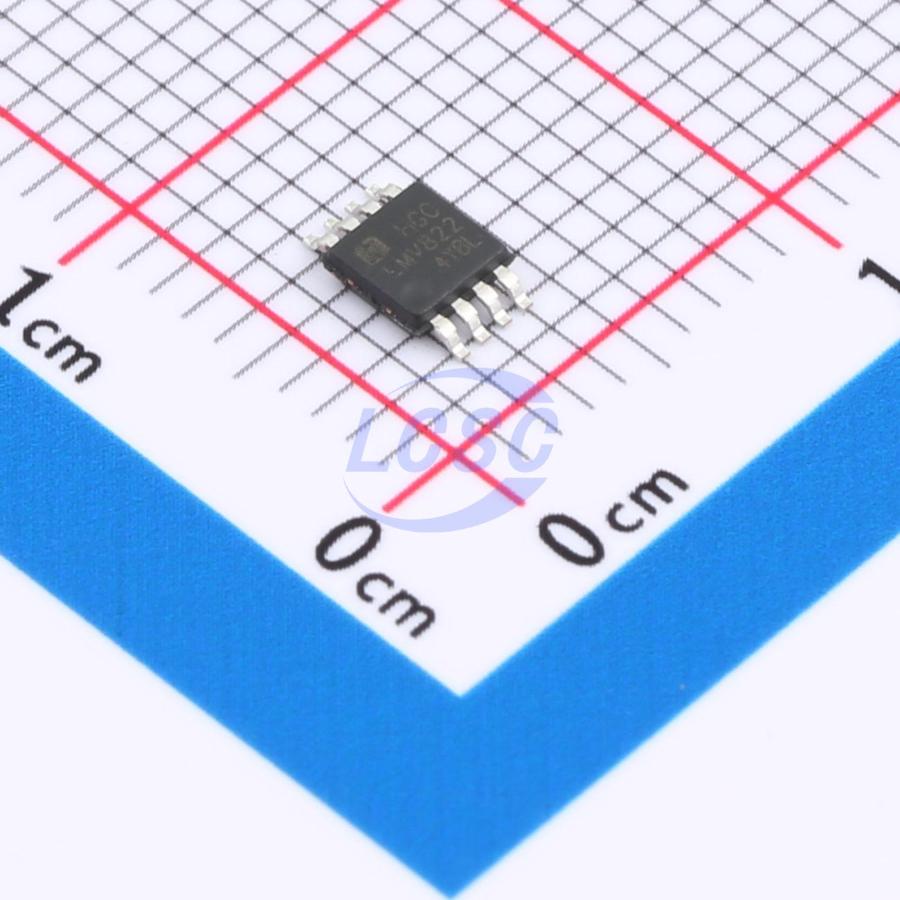

LMV822DGKRG
35mA 2 3.5mV 4.2V/us 1pA 90dB 470uA 6MHz Rail-to-Rail Input, Rail-to-Rail Output MSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
MSOP-8ROHS CompliantActive
6MHZ CMOS Rail-to-Rail IO Opamps
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- LMV822DGKRG
- Store part #
- C19723763
- Package / case
- MSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,870 in stock
#C19723763
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.19 | ₹175.95 |
| 50+ | ₹27.62 | ₹1,381.00 |
| 150+ | ₹24.40 | ₹3,660.00 |
| 500+ | ₹20.35 | ₹10,175.00 |
| 3,000+ | ₹18.55 | ₹55,650.00 |
| 6,000+ | ₹17.48 | ₹1,04,880.00 |
5 × ₹35.19
₹175.95
excl. GST
₹207.62 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LMV822DGKRG
₹175.95 for 5 + GST
Specifications
- Output Current
- 35mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 3.5mV
- Slew Rate
- 4.2V/us
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 1pA
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Input Offset Voltage Drift(Vos TC)
- 4uV/℃
- Quiescent Current
- 470uA
- Gain Bandwidth Product
- 6MHz
- Features
- Enable/shutdown function
- Input Voltage Noise Density
- 13nV/√Hz@1kHz
- Dual Supply
- -2.75V~-1.05V;1.05V~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.1V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.162 g
