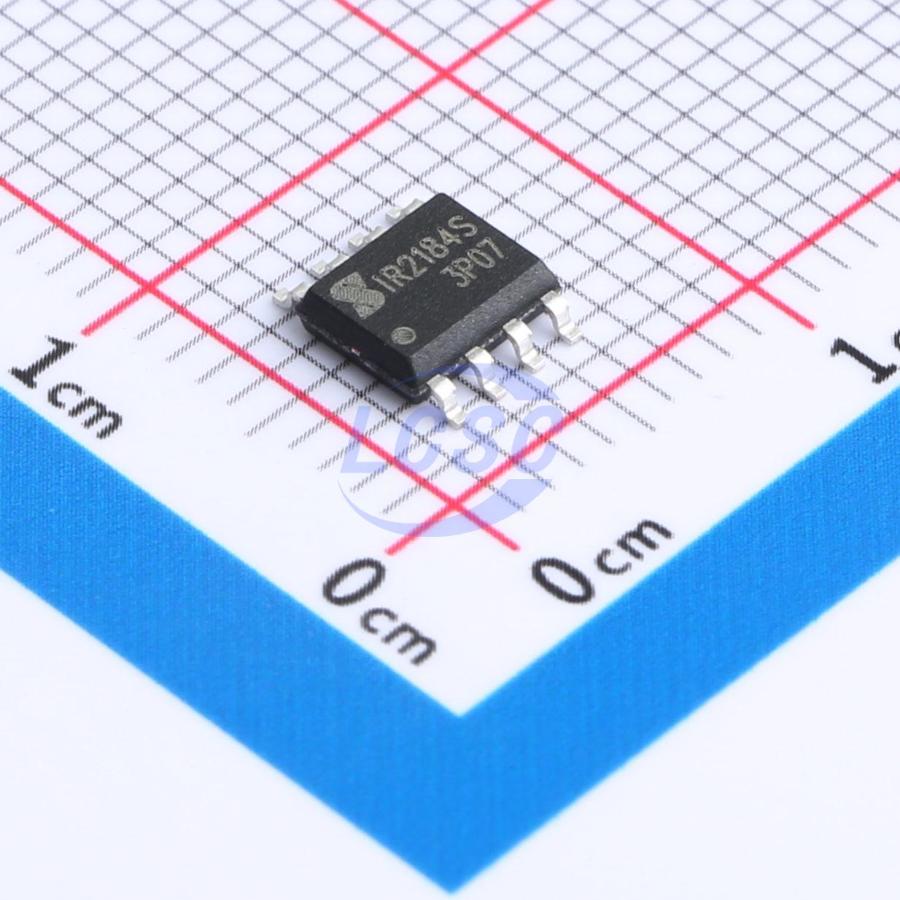

IR2184STRPBF-JSM
Low Side High Side Gate Driver IC MOSFET IGBT SOP-8
700V high-current, high-side and low-side MOSFET/IGBT driver chips
- Manufacturer
- JSMSEMI
- Manufacturer part #
- IR2184STRPBF-JSM
- Store part #
- C7466369
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,292 in stock
#C7466369
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹126.02 | ₹126.02 |
| 10+ | ₹113.86 | ₹1,138.60 |
| 30+ | ₹107.33 | ₹3,219.90 |
| 100+ | ₹99.73 | ₹9,973.00 |
| 500+ | ₹94.95 | ₹47,475.00 |
| 1,000+ | ₹93.43 | ₹93,430.00 |
1 × ₹126.02
₹126.02
excl. GST
₹148.70 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
IR2184STRPBF-JSM
₹126.02 for 1 + GST
Specifications
- Quiescent Current
- 150uA
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- High Side;Low Side
- Current - Output Low(IOL)
- 4A
- Rise Time
- 10ns
- Fall Time
- 10ns
- Features
- Enable shutdown;Dead-time control;Interleaved conduction protection
- Current - Output High(IOH)
- 4A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.111 g
Overview
The IR2184S is a high-voltage, high-speed power MOSFET/IGBT high- and low-side gate driver IC featuring single-input control of both channels simultaneously. It integrates internal protection circuits including high- and low-side UVLO, overvoltage clamp, and shoot-through lockout. The device offers high-current pulse output capability, with logic inputs compatible down to 3.3V CMOS or LSTTL logic levels. Peak output current reaches up to 4A, and the floating channel supports a maximum operating voltage of 700V. Suitable for driving N-channel high-voltage power MOSFETs, IGBTs, and similar devices.
Key features
- Floating channel for bootstrap operation, max operating voltage 700V
- Compatible with 3.3V, 5V, and 15V input logic
- Motor control dV/dt immunity up to ±50V/nsec
- Vs negative voltage tolerance down to -9V
- Gate drive voltage: 10V to 20V
- High- and low-side UVLO
- UVLO positive-going threshold 8.9V
- UVLO negative-going threshold 8.2V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRS2184STRPBF-JSM#C7466368JSMSEMI · SOP-8 | JSMSEMI | SOP-8 | 2,159 | ₹188.90 · 2,159 in stock | View |
 | IRS2186STRPBF-JSM#C5804625JSMSEMI · SOP-8 | JSMSEMI | SOP-8 | 6,987 | ₹102.08 · 6,987 in stock | View |
 | TF2183M-TR#C17701721JSMSEMI · SOP-8 | JSMSEMI | SOP-8 | 446 | ₹83.83 · 446 in stock | View |
 | FAN7390MX-JSM#C7498959JSMSEMI · SOP-8 | JSMSEMI | SOP-8 | 4,002 | ₹142.24 · 4,002 in stock | View |
 | FAN73901MX-JSM#C7498960JSMSEMI · SOP-8 | JSMSEMI | SOP-8 | 428 | ₹97.52 · 428 in stock | View |
