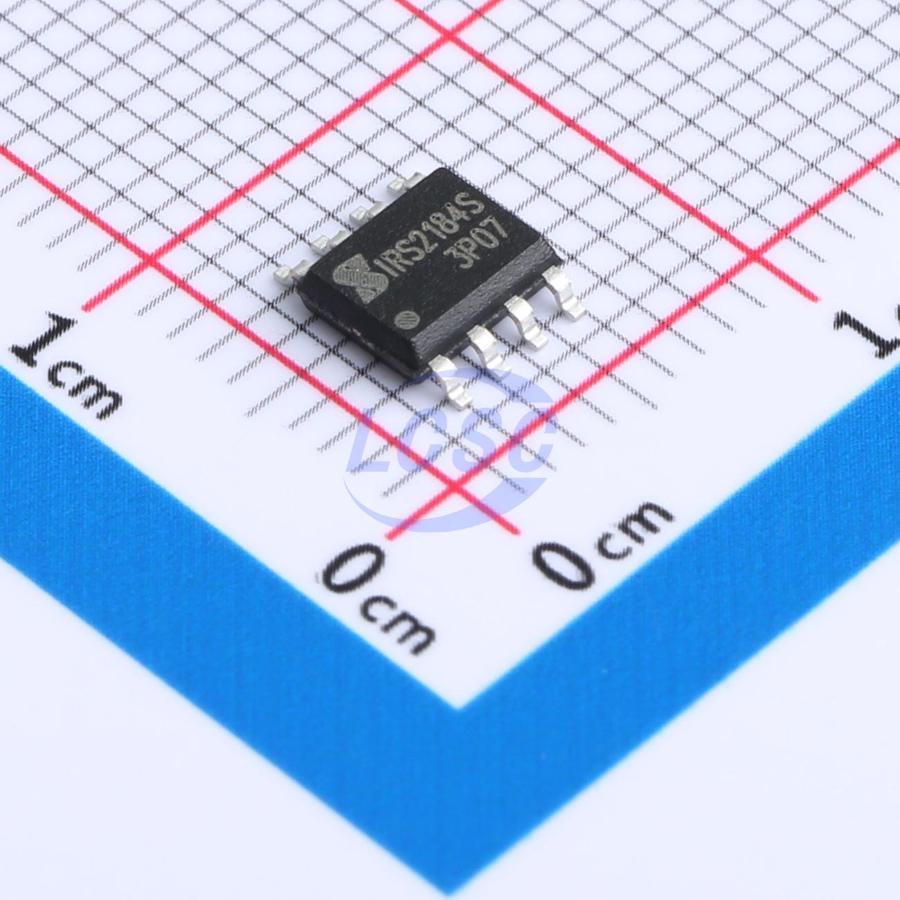

IRS2184STRPBF-JSM
Low Side High Side Gate Driver IC MOSFET IGBT SOP-8
700V high-current, high-side and low-side MOSFET/IGBT driver chips
- Manufacturer
- JSMSEMI
- Manufacturer part #
- IRS2184STRPBF-JSM
- Store part #
- C7466368
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,159 in stock
#C7466368
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹188.90 | ₹188.90 |
| 10+ | ₹157.82 | ₹1,578.20 |
| 30+ | ₹140.54 | ₹4,216.20 |
| 100+ | ₹121.33 | ₹12,133.00 |
| 500+ | ₹103.19 | ₹51,595.00 |
| 1,000+ | ₹99.32 | ₹99,320.00 |
1 × ₹188.90
₹188.90
excl. GST
₹222.90 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
IRS2184STRPBF-JSM
₹188.90 for 1 + GST
Specifications
- Quiescent Current
- 150uA
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- High Side;Low Side
- Current - Output Low(IOL)
- 4A
- Rise Time
- 10ns
- Fall Time
- 10ns
- Features
- Enable shutdown;Dead-time control;Interleaved conduction protection
- Current - Output High(IOH)
- 4A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.124 g
Overview
The IRS2184S is a high-voltage, high-speed power MOSFET/IGBT high- and low-side gate driver IC featuring single-input control of both output channels simultaneously. It integrates built-in protection circuits including high- and low-side UVLO, overvoltage clamp, and shoot-through lockout. The device offers high-current pulse output capability, with logic inputs compatible with CMOS or LSTTL logic levels as low as 3.3V. Output current capability is up to 4A, and the floating channel supports a maximum operating voltage of 700V. It is suitable for driving N-channel high-voltage power MOSFETs, IGBTs, and similar devices. The IRS2184S is available in an SOP-8 package and operates over a temperature range of -40°C to 125°C.
Applications
- General-purpose inverter
- Micro inverter driver
Key features
- Bootstrap-operated floating channel
- Maximum operating voltage up to 700V
- Compatible with 3.3V, 5V, and 15V input logic
- dV/dt immunity up to ±50V/nsec
- Vs negative voltage tolerance down to -9V
- Gate drive voltage: 10V to 20V
- High- and low-side UVLO — UVLO positive-going threshold 8.9V — UVLO negative-going threshold 8.2V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IR2184STRPBF-JSM#C7466369JSMSEMI · SOP-8 | JSMSEMI | SOP-8 | 1,292 | ₹126.02 · 1,292 in stock | View |
 | IRS2186STRPBF-JSM#C5804625JSMSEMI · SOP-8 | JSMSEMI | SOP-8 | 6,987 | ₹102.08 · 6,987 in stock | View |
 | TF2183M-TR#C17701721JSMSEMI · SOP-8 | JSMSEMI | SOP-8 | 446 | ₹83.83 · 446 in stock | View |
 | FAN7390MX-JSM#C7498959JSMSEMI · SOP-8 | JSMSEMI | SOP-8 | 4,002 | ₹142.24 · 4,002 in stock | View |
 | FAN73901MX-JSM#C7498960JSMSEMI · SOP-8 | JSMSEMI | SOP-8 | 428 | ₹97.52 · 428 in stock | View |
