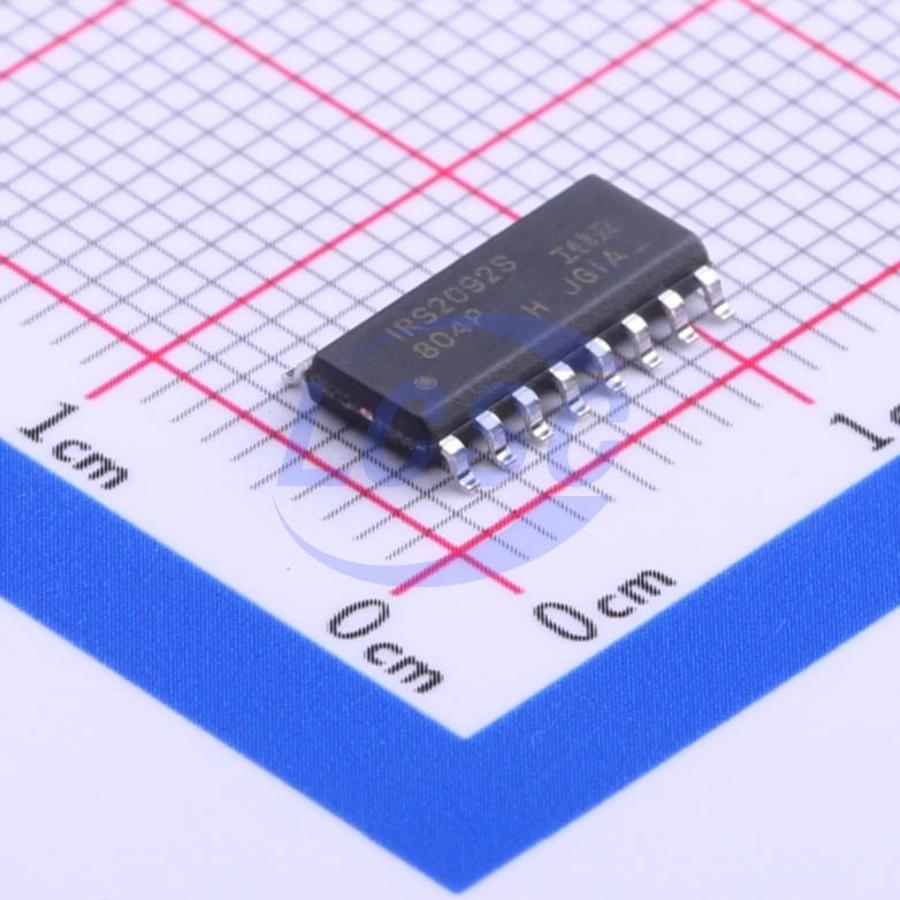

IRS2092STRPBF
3mA 10V~18V 1-Channel Class D SOIC-16-150mil Audio Amplifiers RoHS
Protected Digital Audio Amplifier
- Manufacturer
- Infineon
- Manufacturer part #
- IRS2092STRPBF
- Store part #
- C67282
- Package / case
- SOIC-16-150mil
- Category
- Audio Amplifiers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20,321 in stock
#C67282
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹135.50 | ₹135.50 |
| 10+ | ₹122.70 | ₹1,227.00 |
| 30+ | ₹115.52 | ₹3,465.60 |
| 100+ | ₹107.28 | ₹10,728.00 |
| 500+ | ₹103.80 | ₹51,900.00 |
| 1,000+ | ₹102.07 | ₹1,02,070.00 |
1 × ₹135.50
₹135.50
excl. GST
₹159.89 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IRS2092STRPBF
₹135.50 for 1 + GST
Specifications
- Quiescent Current
- 3mA
- Voltage - Supply
- 10V~18V
- Features
- Automatic mute/no-noise switch
- Total Harmonic Distortion + Noise (THD+N)
- 0.01%
- Operating Temperature
- -40℃~+125℃
- Speaker Channels
- 1-Channel
- Class
- Class D
- Power Supply Rejection Ratio (PSRR)
- 65dB
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.343 g
Overview
The IRS2092 is a high voltage, high performance Class D audio amplifier driver with PWM modulator and protection. In conjunction with two external MOSFET and a few external components, a complete Class D audio amplifier with protection can be realized. International Rectifier’s proprietary noise isolation technology allows high current gate drive stage and high speed low noise error amplifier reside on a single small silicon die. Open elements of PWM modulator section allow flexible PWM topology implementation
Applications
- Home theater systems
- Mini component stereo systems
- Powered speaker systems
- General purpose audio power amplifiers
Key features
- Integrated analog input Class D audio amplifier driver in a small 16 pin package
- Floating inputs enable easy half bridge implementation
- Programmable bidirectional over-current protection with self-reset function
- Programmable preset deadtime for improved THD performances
- Start and stop click noise reduction
- High noise immunity
- ±100 V ratings deliver up to 500 W in output power
- Operates up to 800 kHz
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | JSM2092STR#C19077365JSMSEMI · SOIC-16 | JSMSEMI | SOIC-16 | 3,922 | ₹134.22 · 3,922 in stock | View |
 | IRS2092STRPBF-JSM#C2900592JSMSEMI · SOP-16 | JSMSEMI | SOP-16 | 1,313 | ₹195.35 · 1,313 in stock | View |
 | NSA2092#C41414531WXNSIC · SOP-16 | WXNSIC | SOP-16 | 575 | ₹174.76 · 575 in stock | View |
 | NSA20921#C49023240WXNSIC · SOP-16 | WXNSIC | SOP-16 | 3,881 | ₹156.33 · 3,881 in stock | View |
