XBLW

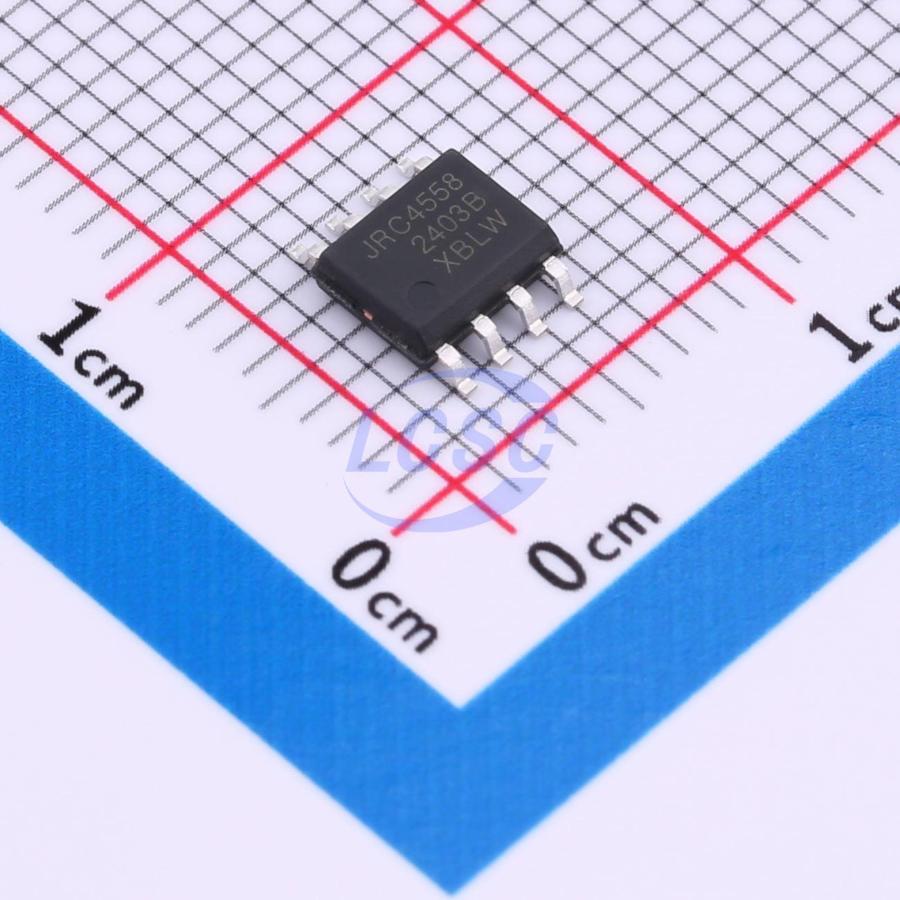

JRC4558DTR(XBLW)

80mA 2 6mV 1.5V/us 500nA 95dB 3.5MHz 3.5mA SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOP-8ROHS CompliantActive

Dual Operational Amplifier

Manufacturer: XBLW
Manufacturer part #: JRC4558DTR(XBLW)
Store part #: C22357878
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

12,550 in stock

#C22357878

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
10+	₹4.29	₹42.90
100+	₹3.47	₹347.00
300+	₹3.06	₹918.00
2,500+	₹2.74	₹6,850.00
5,000+	₹2.50	₹12,500.00
10,000+	₹2.37	₹23,700.00

Quantity (min 10, multiples of 10)

10 × ₹4.29

₹42.90

excl. GST

₹50.62 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

JRC4558DTR(XBLW)

₹42.90 for 10 + GST

Specifications

Output Current: 80mA
Number of Channels: 2
Vos - Input Offset Voltage: 6mV
Slew Rate: 1.5V/us
Input Offset Current(Ios): 200nA
Operating Temperature: -40℃~+85℃
Ib - Input Bias Current: 500nA
Common Mode Rejection Ratio(CMRR): 95dB
Gain Bandwidth Product: 3.5MHz
Quiescent Current: 3.5mA
Features: Built-in compensation
Dual Supply: -18V~-4V;4V~18V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.214 g

Overview

JRC4558 is a low noise, high gain, dual channel operational amplifier, which is internally compensated and built on a single silicon chip by using advanced extensional technology. It is suitable for single power supply with wide power supply voltage range, and also suitable for dual power supply working mode. Under the recommended working conditions, the power supply current is independent of the power supply voltage. The application range of JRC4558 includes active filter, compensation amplifier, audio preamplifier, equalization amplifier, and various linear amplifiers in electronic instruments. It is available in SOP8 and DIP8 package.

Applications

Active Filter
Compensation Amplifier
Audio Preamplifier
Electronic Instruments

Key features

Internal Frequency Compensation
High DC Voltage Gain: 100dB (Typ.)
Unit Gain Bandwidth: 3.5MHz
High Input Impedance: 5MΩ (Typ.)
Low Input Bias Current
Low Input Offset Voltage And Current
Bipolar Designation
Wide Common-Mode Input Voltage, Including Ground
Large Swing of Output Voltage: 0 ~ (VCC - 1.5V)
Wide Differential-Mode Input Voltage Range, Equal To Power Supply Range
